Ground Mounting Kits
Renusol ConSole+ The Best Choice for Ground Mounted Solar Systems
When it comes to ground-mounted solar systems, Renusol ConSole+ is a top recommendation. Its innovative ballasted design requires no ground penetration, ensuring safety, simplicity, and durability.
One of the main benefits that sets ConSole+ apart is its significantly lower installation cost compared to traditional ground installations. Here's why:
- Installation is straightforward and doesn't require any specialised equipment, such as drilling machinery. The ConSole+ is secured solely by ballast.
- It's easy to handle and install, with quick installation times, great flexibility, and enhanced security. Plus, there are no leftover base plates or concrete residues.
-
The ConSole+ can be ballasted with readily available, low- or no-cost materials like gravel, further reducing overall expenses.

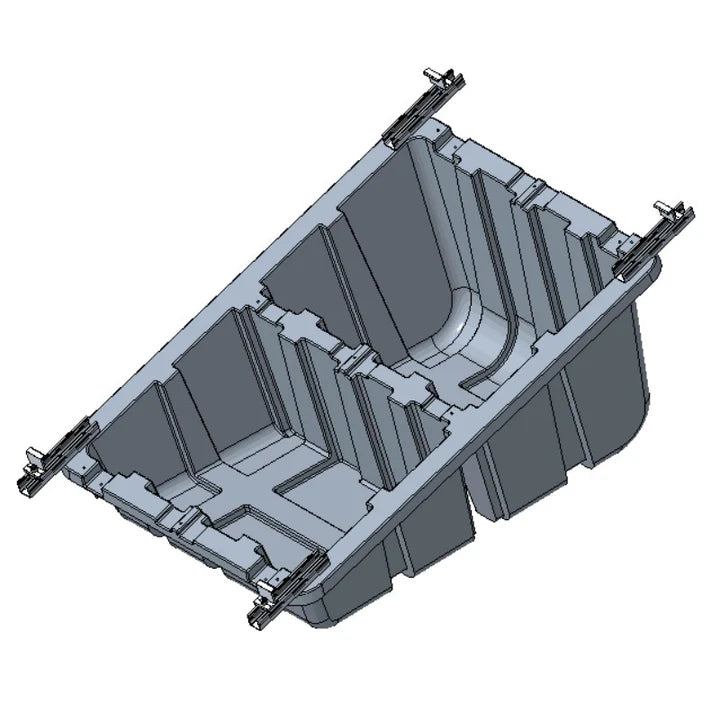

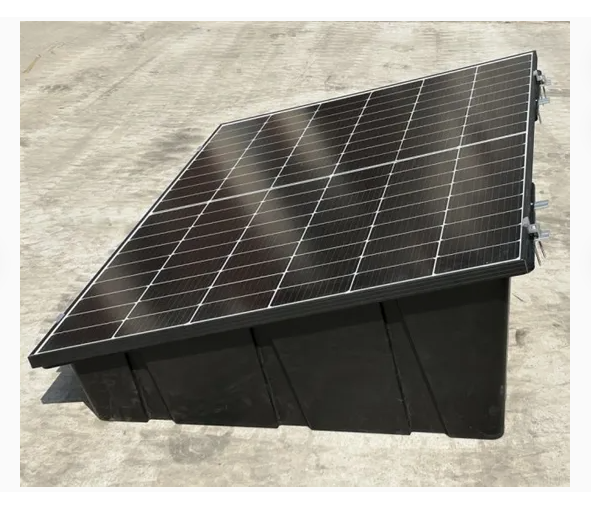

The installation process is simple: place the Renusol ConSole+ tray in position, fill it with ballast material (which can include gravel, paving slabs, bricks, rocks, or any other similar material), and then attach the solar module. It's that easy. The system is simple, fast, and safe. It utilises a plastic trough made of HDPE to evenly distribute the weight across the substructure.
The ConSole+ is compatible with most commercially available framed PV modules. The mounting holes on the back of the modules are used to securely attach them to the mounts.
Before proceeding, please ensure that your panel specifications match the following measurements:
- Maximum module length: 1550-2150 mm
- Holes gap - width: 895-1014 mm
- Holes gap - length: 690-1180 mm
Please watch a video demonstrating installation
of Solar PV on the Renusol Console+ System
Choose Renusol ConSole+ for an economical, efficient, and hassle-free solution for your ground mounted solar systems.
