Solarport 2 Rows 5 Columns Portrait Ground Solar Mounting Kit


By Solarport
Minus Plus

Delivery available

More details Right

Solarport 2 Rows 5 Columns Portrait Ground Solar Mounting Kit

  • Pre-engineered 2-in-portrait ground mounting kit for 10 panels, ideal for commercial yards, depots and larger off-grid systems.
  • Compatible with multiple foundation options to suit a wide range of ground conditions and UK wind and snow loads.
  • Held in stock by Solarport for rapid deployment, with UK-based expert support from Energian.

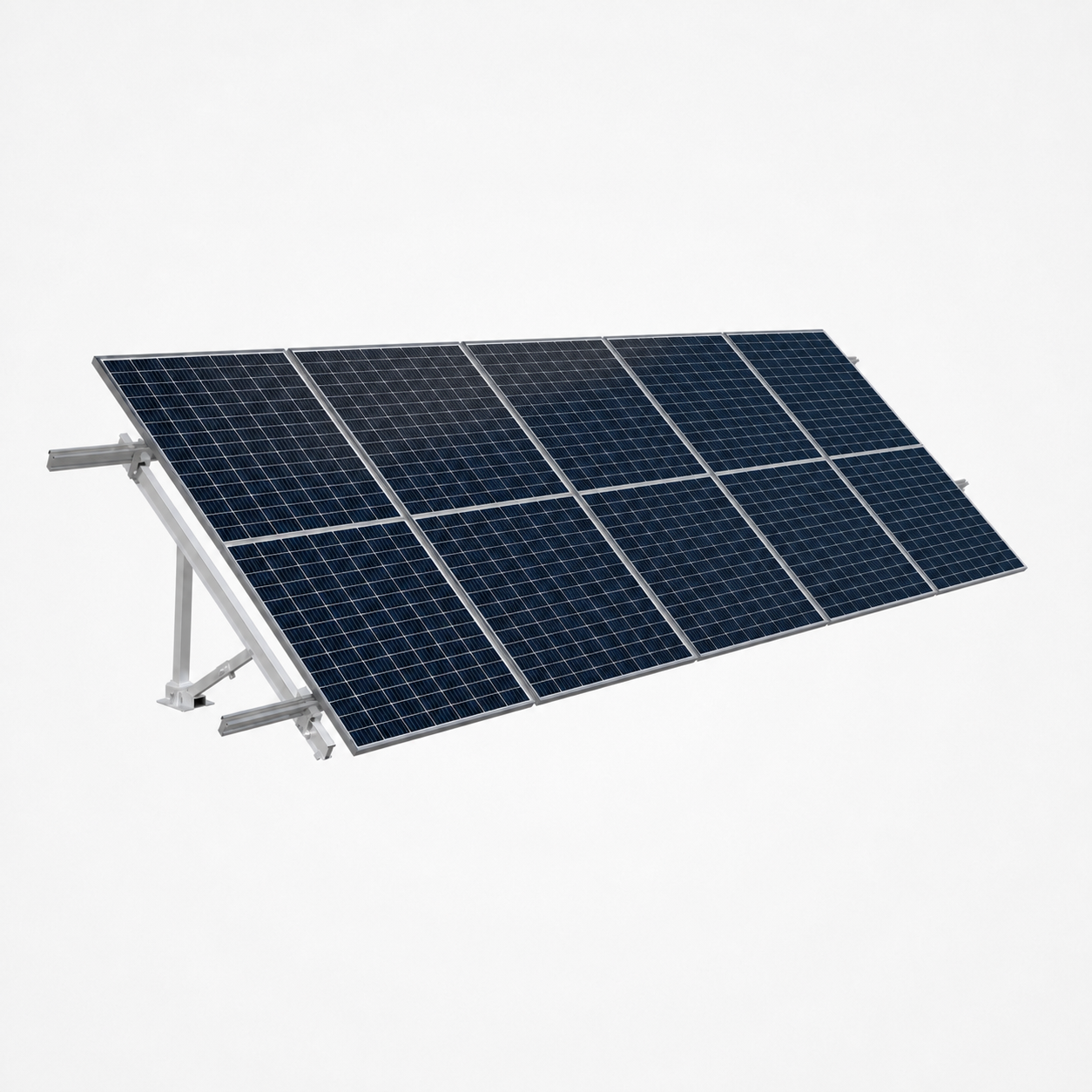

The Solarport Modular 2-in-portrait 2 rows x 5 columns kit is a ground-mounted steel framework designed to hold ten solar panels securely in open ground. It is based on Solarport’s stocked Modular system, giving you a robust, UK-designed structure that can be matched with a range of foundation types for different site conditions.

Key features

  • 2-in-portrait ground mount layout with 2 rows and 5 columns (10 modules in total), suitable for commercial and domestic-scale projects.[file:4]
  • Modular design using universal components for straightforward planning, fast installation and easy expansion on site.
  • Supports a wide range of panel lengths from 1650 mm to 2470 mm, with four purlins and sliding clamps to match panel clamping zones.

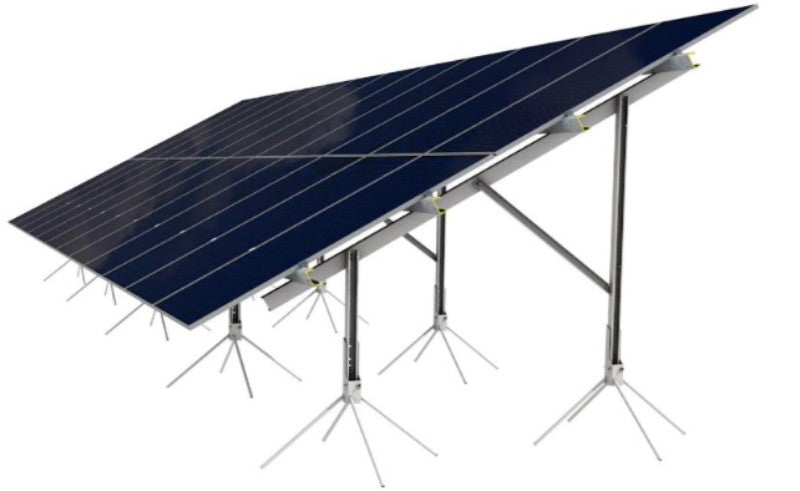

  • Available with multiple foundation types including piles, ballasted bases, ground screws and anchors, so almost no terrain is off limits when engineered correctly.
  • Designed in accordance with relevant Eurocodes for wind and snow loading and suitable for UK fundamental basic wind velocity up to 28 m/s, subject to site-specific design.

Typical applications

This kit is well suited to logistics yards, depots, farms, utility compounds and light industrial sites that have spare ground for small solar arrays. It can be used for offsetting building consumption, powering off-grid systems or feeding battery-backed EV chargers where a ground mount is preferred over rooftop deployment.

System design and installation

The framework is part of Solarport’s Modular range, which allows tables to be built in bays of two or three panels wide and installed on ground with slopes up to around 5 degrees, subject to design.[file:4] System angles of 20°, 25° and 30° are available, with minimum and maximum heights defined for each tilt to keep modules clear of the ground and within structural limits.[file:4]

Because the correct foundation type, bay pitch and fixing details depend on local ground conditions and wind and snow loads, we recommend installation through Energian’s trusted partners or your own qualified contractor following Solarport’s design guidance. Our UK technical team can help you match this kit to your chosen modules and provide guidance to your installer.

Technical specifications

General technical data

  • System type: Modular 2-in-portrait ground mount.
  • Panel configuration: 2-in-portrait.
  • Panel minimum length: 1650 mm.
  • Panel maximum length: 2470 mm.
  • Purlin configuration: 4 purlins, position determined by panel dimensions and clamping zones.
  • Panel clamping zones: As per panel manufacturer’s specification.
  • Panel clamp specification: Aluminium top hat and end clamps with sliding clamps to give mounting positions.
  • System angles: 20°, 25°, 30°.
  • System minimum and maximum heights:
    • 20°: minimum clearance 785 mm; maximum to top of rafter 2200 mm.
    • 25°: minimum clearance 735 mm; maximum to top of rafter 2455 mm.
    • 30°: minimum clearance 680 mm; maximum to top of rafter 2694 mm.
  • Bay sizes: 2 panels and 3 panels wide.
  • Table configuration minimum and maximum: 2 panels x 2 panels minimum; 30 panels x 2 panels maximum.
  • Bay pitches: 2000 mm, 2500 mm, 3000 mm, 3500 mm (each pitch can have 100 mm added when an Extension Joiner is used).

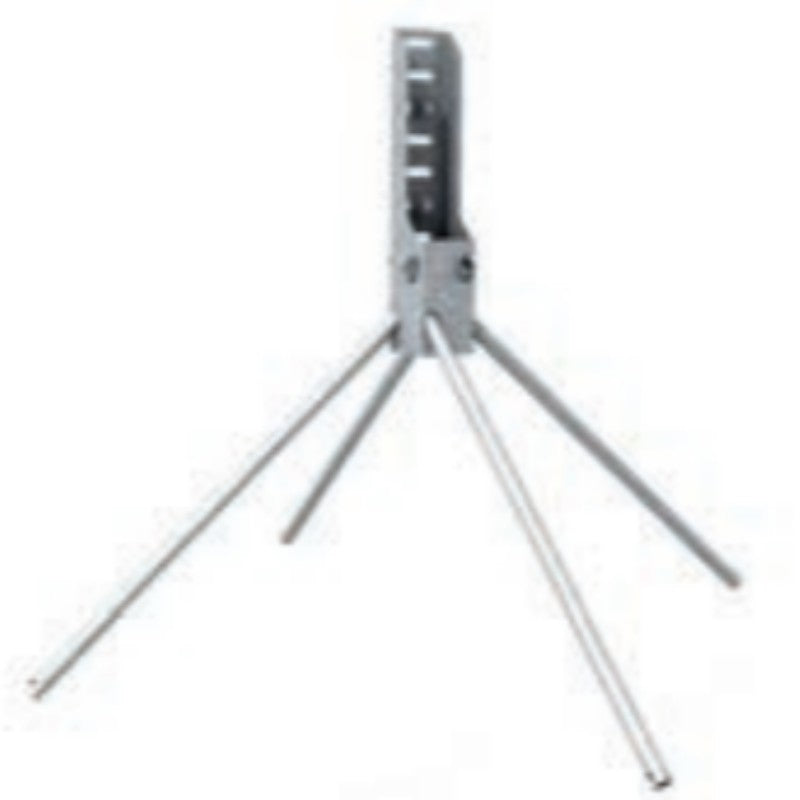

Foundation - X Anchor

  • Patent number: GB2607092
  • Suitable for: Sites requiring shallow embedment and/or no heavy machinery.
  • Installation: Steel rods driven in with hand tools.
  • Material: Hot rolled steel S355JR, hot dipped galvanised to ISO 1461.
  • Dimensions: 600 mm embedment.
  • Design codes: BS EN 1991-1-4:2005 + A1:2010; BS EN 1090 and BS EN 1991 Parts 1, 3 and 7 (Eurocodes).

Structural performance

  • Wind speed: Fundamental basic UK wind velocity within the UK up to 28 m/s (site-specific design still required).
  • Snow load: Up to 0.7 kN/m².
  • Design standards: BS EN 1991-1-4:2005 + A1:2010; BS EN 1090; BS EN 1991 Parts 1, 3 and 7 (Eurocodes).

Materials

  • Structural steel: S350 and S450 grade with Z600 or ZM310 coating as specified.
  • Hot rolled sections[file:4]

Documents available for download

Shipping and delivery

Shipping is available across the UK, Ireland, Africa, the Caribbean and worldwide. If a shipping rate is not shown at checkout, please contact us on +44 2080 640 335 or info@energian.co.uk for a tailored quotation.

UK expert support

Energian offers UK-based technical support for Solarport ground mounting systems. Contact us by phone, email or live chat, or visit our office for in-person advice on system layout, module matching and installation options.

Where this kit is not a simple plug-and-play solution for your site, we can connect you with trusted installation partners or work with your chosen contractor to ensure it is designed and installed correctly.
