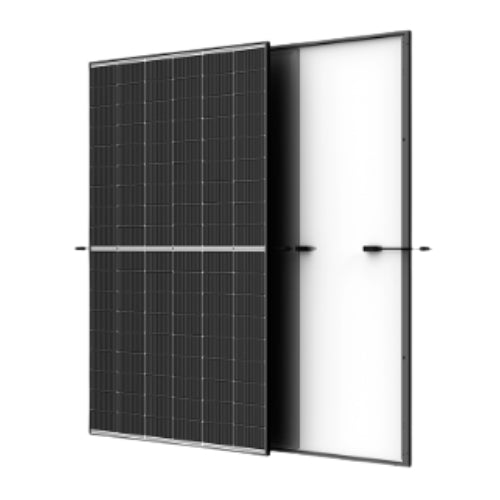

The Trina Vertex S+ 510W is a high-output N-type i-TOPCon monofacial dual glass solar panel for residential and commercial rooftop systems. It is designed for strong energy yield, reliable operation and compatibility with mainstream PV system components.
- 510W maximum power output with up to 22.9% module efficiency
- N-type i-TOPCon monocrystalline technology
- Monofacial dual glass module construction
- Mechanical performance up to 5400 Pa positive load and 2400 Pa negative load
- 1961 x 1134 x 30 mm module size
- 15-year product warranty and 30-year power guarantee
Specifications
| Specification | Value |
|---|---|
| Model / SKU | TSM-510-NEG18R.28 |
| Maximum power | 510W |
| Open circuit voltage (Voc) | 40.6V |
| Short circuit current (Isc) | 15.93A |
| Maximum power voltage (Vmpp) | 33.7V |
| Current at maximum power (Impp) | 15.14A |
| Module efficiency | 22.9% |
| Dimensions | 1961 x 1134 x 30 mm |
| Weight | 23.5 kg |
| Cell type | N-type i-TOPCon monocrystalline |
| Temperature coefficient of Pmax | -0.29%/°C |
| Temperature coefficient of Voc | -0.24%/°C |
| Temperature coefficient of Isc | +0.04%/°C |
| Maximum system voltage | 1500V DC (IEC) |
| Product warranty | 15 years |
| Power warranty | 30 years |
A strong option where higher power per module is required without moving to oversized commercial-format panels.
