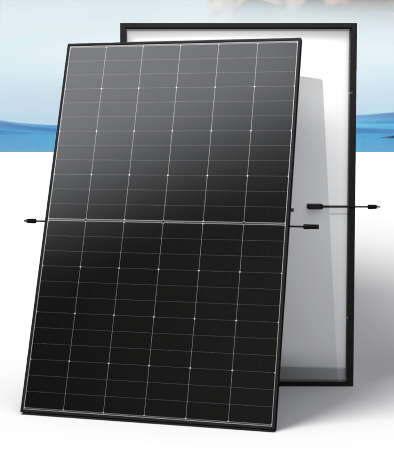

Trina Solar 470W Type N Vertex S Plus Dual Glass Solar Panel Black Frame

• High-efficiency 470W n-type i-TOPCon dual-glass module with up to 23.5% module efficiency for space-limited commercial and industrial roofs.
• Durable glass-glass construction, strong mechanical load ratings and long warranties for reliable long-term performance.
• Compact Vertex S Plus format (1762 × 1134 × 30mm) with ultra black frame and white back for neat, modern arrays.

Overview

The Trina Solar 470W Type N Vertex S Plus dual-glass solar panel (TSM-NED9R.28 family) is a high-performance module combining n-type i-TOPCon cell technology with compact glass-glass construction. With up to 470W output, 23.5% module efficiency and low degradation, it is well suited to commercial, industrial and logistics projects where roof area and long-term yield are key considerations.

Key features

• 470W STC output with module efficiency up to 23.5% (depending on exact TSM-NED9R.28 configuration).
• n-type i-TOPCon monocrystalline cells with low degradation: around 1% in year one and 0.4% per year in years 2–30, backed by 30-year power warranty and 15–25-year product warranty (see local warranty terms).
• Dual-glass design with heat-strengthened front and back glass for improved fire resistance, mechanical strength and long-term reliability.
• Compact Vertex S Plus dimensions (1762 × 1134 × 30mm) and around 21–27kg weight for practical handling on rooftop installations.
• Certified to IEC 61215, IEC 61730, IEC 61701 (salt mist) and IEC 62716 (ammonia), and manufactured under ISO-certified quality, environmental and health & safety systems.

Where to use

This Trina Solar 470W Type N Vertex S Plus dual-glass panel is designed for residential, commercial and industrial roofs where high output and neat appearance are important. It works well for warehouse and logistics centres, light industrial units, retail and office buildings, and premium residential projects that need strong output in a compact format.

The dual-glass build and high mechanical load ratings make it suitable for exposed sites with wind, snow and hail, when mounted according to Trina’s installation guidelines. For UK and European projects, Energian can support system design, with installation carried out by trusted partners experienced in dual-glass, n-type modules and commercial mounting systems.

Technical specifications

Series and warranties

• Product: Trina Solar Vertex S Plus shield module – TSM-NED9R.28 445–470W
• Technology: N-type i-TOPCon monocrystalline, dual-glass module
• Product warranty: typically 15–25 years (region-specific – refer to warranty document)
• Power warranty: 30 years
• First year degradation: 1%
• Annual power attenuation years 2–30: 0.4%

Mechanical data

• Module dimensions: 1762 × 1134 × 30mm (approx. 69.37 × 44.65 × 1.18 inches)
• Weight: 27kg (datasheet NED9R.28 Shield) / 21kg typical for Vertex S Plus dual-glass variants (region-specific)
• Solar cells: N-type i-TOPCon monocrystalline
• Number of cells: 144 (6 × 24)
• Front glass: AR coating heat-strengthened glass
• Back glass: heat-strengthened glass
• Frame: anodised aluminium alloy, black
• Junction box: IP68 rated
• Cables: Photovoltaic technology cable 4.0mm²
• Cable length (portrait): 200 / 320mm, length can be customised (datasheet values)
• Connector: TS4 Plus / TS4 / MC4 EVO2 (specific type subject to certification documents)
• Modules per box: 36 pieces
• Modules per 40' container: 900 pieces

Electrical data (STC)

• STC conditions: irradiance 1000W/m², cell temperature 25°C, AM 1.5
• Peak power (Pmax): up to 470W (445–470W range available, power selection up to +3%)
• Example 470W module (TSM-470-NEG9R.28 / NED9R.28):
• Maximum power voltage (Vmp): around 46.1V
• Maximum power current (Imp): around 10.20A
• Open-circuit voltage (Voc): around 54.6V
• Short-circuit current (Isc): around 10.89A
• Module efficiency: up to 23.5%
• Measuring tolerance: ±3%
• Power tolerance: typically 0 / +5W (see regional data).

Temperature ratings

• Nominal operating cell temperature (NOCT): 43°C (±2°C)
• Temperature coefficient of Pmax: -0.29% / °C
• Temperature coefficient of Voc: -0.24% / °C
• Temperature coefficient of Isc: +0.04% / °C

Application conditions and mechanical loads

• Maximum system voltage: 1500V DC (IEC)
• Max. series fuse rating: 25A
• Operating temperature range: -40°C to +70°C
• Strong wind protection, heavy snow protection and severe hail protection (see test standards).
• Mechanical load testing: up to 5400Pa front and 4000Pa rear (typical for Vertex S Plus dual-glass – refer to specific region test data).
• Certifications: IEC 61215 / IEC 61730 / IEC 61701 (salt mist) / IEC 62716 (ammonia)
• Management systems: ISO 9001 (Quality), ISO 14001 (Environment), ISO 14064 (Greenhouse gases verification), ISO 45001 (Occupational Health and Safety).

Documents available for download

• Trina Solar Vertex S Plus TSM-NED9R.28 445–470W – Datasheet – Download datasheet


Shipping & support

Shipping is available to the UK, Ireland, Africa, the Caribbean and worldwide. If the shipping rate is not shown at checkout, please contact us on +44 2080640335 or info@energian.co.uk for a quote.

UK expert support is available – contact Energian with any questions or support requests via phone, email or live chat, or visit our office for an in-person consultation. For this Trina Solar 470W Type N Vertex S Plus dual-glass module we recommend installation by trusted specialist partners to ensure correct mounting, wiring and compliance with local electrical standards.
