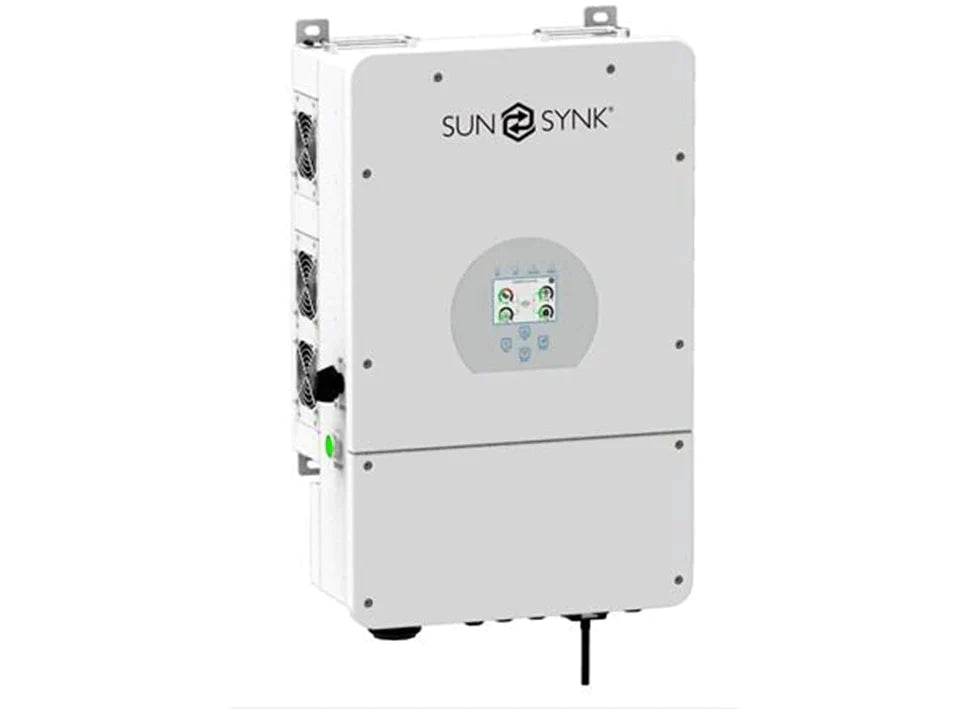

Sunsynk MAX 16.0kW Single Phase Hybrid Inverter

By Sunsynk

Delivery available

Unleash Unprecedented Power with Sunsynk ECCO 16.0kW Hybrid Inverter

Experience the pinnacle of Sunsynk's innovation with the introduction of the 16kW single-phase hybrid inverter—an unparalleled addition to the low voltage (48V) single-phase inverter range. Tailored for off-grid, grid support, backup, and self-consumption PV systems, this powerhouse can seamlessly integrate into both three-phase and single-phase parallel applications. Ideal for large domestic and small commercial installations, it stands out in functionality, compatibility, and accessories.

The World's Largest Single-Phase All-in-One Inverter!

“It’s the biggest single-phase all-in-one inverter with everything built in, in the world,” says Keith Gough, Sunsynk CEO. A true monster!


  • The Sunsynk ECCO 16.0kW Hybrid Inverter sets new standards with its ability to charge and generate simultaneously. Connect up to 18,000W of PV to a single unit, enabling the export of 16.0kW while using surplus energy to charge batteries—effectively generating power while charging.
  • Multiple Operating Modes: Grid-tie only, Hybrid. Off-grid. Battery only, AC couple – For addition of PV input to the existed grid-tie solar systems.

  • Additional Features:

    • A total of 15 inverters can be connected in a three-phase configuration (five units per phase) - giving a maximum power output of 240kW.
    • Three inverters can be connected in a single-phase configuration giving a total power of 48kW.
    • Contains 3 MPPTs to allow for flexible PV array designs and improved efficiency.
    • Programmable multiple operation modes: on-grid/off-grid & UPS.
    • IP65 protection rating.
    • Wi-Fi dongle as standard – enabling remote monitoring via the Sunsynk cloud.
    • Compatible with leading lithium battery brands ssuch as Sunsynk CATL 5.12-25.6kWhPYLONTECH Force-L2 Low Voltage 7.1-14.2kWhUS2000С 2.4-38.4kWhUS3000С 3.55-56.8kWhUS5000 4.8-76.8kWh..
    • SunSynk MAX 16.0kW Hybrid Inverter can be combined with Lithium batteries - Pylontech LV, Hubble Lithium, REVOV, Freedomwon, and Kodak (BL3.6).
    • Integrated with Octopus Agile, allowing you to monitor charge and discharge figures based on electricity rates, optimizing battery charging costs.
  • Take Command with Sunsynk App: Take complete control of your inverter using the Sunsynk App. Visit the Apple App Store or Google Play Store and search for "Sunsynk Logger."
  • Fast and Reliable Delivery: Experience swift 2-3 working days delivery within the UK (longer to the Highlands, islands, and Northern Ireland). Elevate your energy capabilities with the Sunsynk ECCO 16.0kW Hybrid Inverter—where power meets innovation.

      Detailed specifications:

      Model: SUNSYNK-16K-SG01LP1
      Battery Type: Lithium-Ion / AGM Lead-acid
      Battery Voltage: 43-60V
      Max. Charge/Discharge Current: 300A
      INPUT PV
      Max. Input Power: 18,000W
      Max. PV Input Voltage: 450V
      MPPT Input Voltage: 250V ~ 450V
      PV Input Current: 26A/26A/26A
      Max. Short-circuit Current: 26A/26A/26A
      No. of Independent MPP Trackers: 3
      No. of Strings Per MPPT: 1+1
      Max. On-Grid AC Power: 16,000W
      Max. Off-Grid AC Power: 13,000W
      Peak Power (Off-grid): 2 times of rated power, 10sec
      Rated Output Current: 65A
      Max. Output Current: 70A
      Max Continuous AC Passthrough: 150A
      Max. Bypass Current: 150A
      Rated Grid Voltage: 211-264VAC
      Rated Grid Frequency: 55-55Hz
      Max. Efficiency: 97.6%
      Operating Temperature: -25 ~ 55°C
      Protection Degree: IP65
      Size: 422 x 281 x 702mm
      Net Weight: 34.5kg

      In the Box:
      • 1 X SunSynk MAX 16.0kW Hybrid Inverter,
      • 1 X SunSynk MAX 16.0kW Hybrid Inverter User's Manual.
