Sunsynk Elite 5.1kWh Battery Storage
- 5.12kWh stackable LiFePO₄ battery module for Sunsynk Elite hybrid inverters, suitable for commercial and residential storage systems.
- Scalable design: stack from a single 5.12kWh battery up to 30.72kWh per Power Distribution Unit for larger backup or self‑consumption projects.
- Outdoor‑ready IP65 enclosure with matching footprint to the Sunsynk Elite base and BMS, for tidy wall or floor‑standing installations.

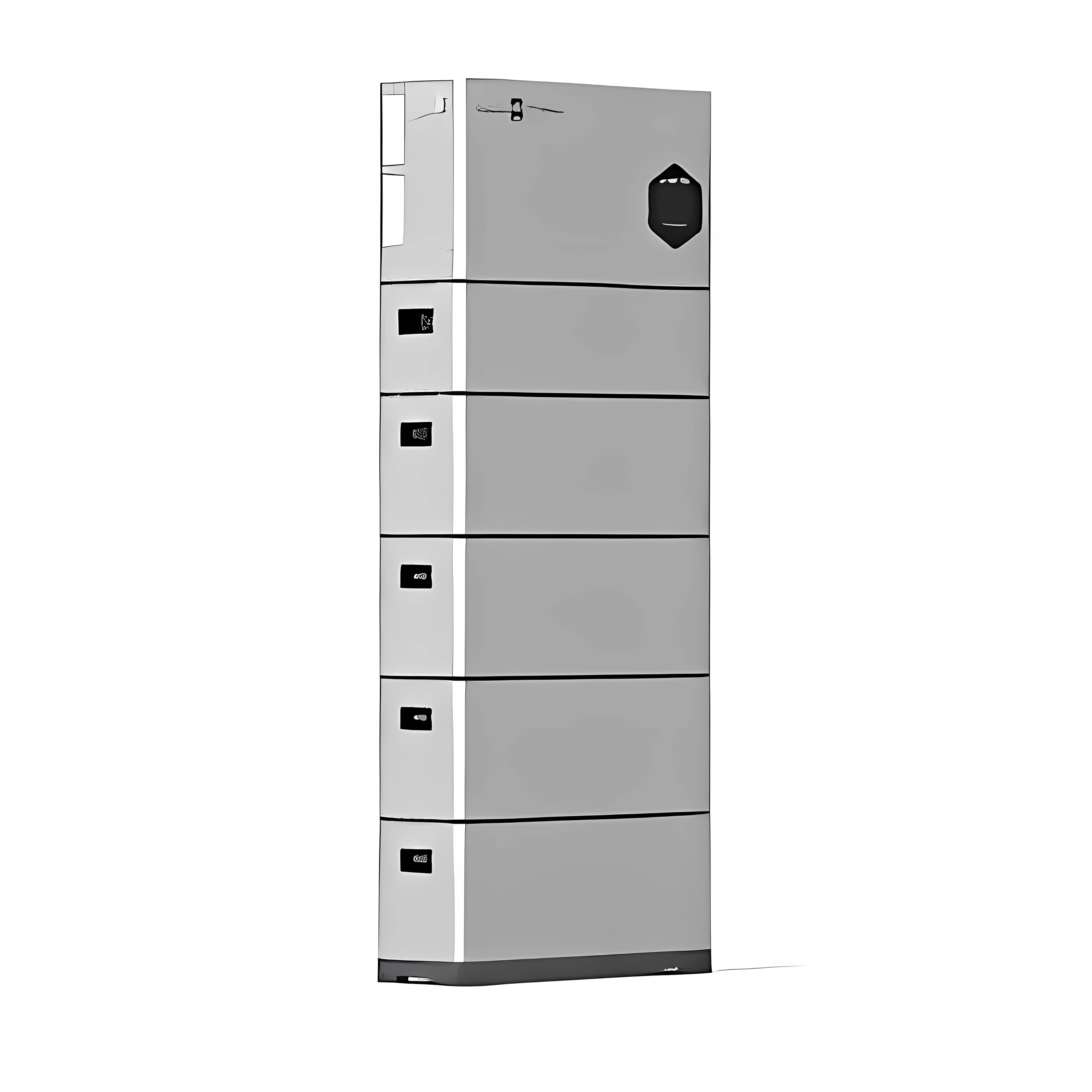

The Sunsynk Elite 5.1kWh Battery Storage module (SS‑5.1kWh‑ELITE‑BATT‑1P‑IP65‑00) is a 5.12kWh LiFePO₄ stackable battery designed to work with Sunsynk Elite hybrid inverters and the Elite BMS + Base unit. Each module adds 5.12kWh of storage, with up to six batteries per stack for 30.72kWh, making it suitable for small commercial premises, depots and larger homes that want to store surplus solar or provide backup power. The module is supplied in an IP65 enclosure with integrated connections, allowing neat, modular systems that can be expanded as site demands grow.
Key features
- 5.12kWh LiFePO₄ battery module matched to Sunsynk Elite hybrid inverters via dedicated 40–60V DC bus and BMS.
- Stackable from 5.12kWh to 30.72kWh per PDU (up to six modules), so capacity can be increased later without changing inverter hardware.
- IP65‑rated cabinet with compact 720×255×300mm footprint and 55kg weight per module for robust wall or floor installation in plant areas.
- Dedicated Power Distribution Unit and base available to tidy cable management and integrate over‑current protection up to 250A at 1000V DC.
- Designed as part of the Sunsynk Elite ecosystem, supporting neat, vertically stacked layouts alongside 3.6kW, 5kW and 7kW Elite hybrid inverters.
Technical specifications
Battery pack accessories (Elite stackable system)
- Model: SS‑5.1kWh‑ELITE‑BATT‑1P‑IP65‑00 (Individual Package) – 5.12kWh Battery Module (Standard Configuration).
- Description: Stackable battery module, ranging from 5.12kWh to 30.72kWh, allowing up to six 5.12kWh modules to be installed.
- SS‑5.1kWh‑ELITE‑BMS+BASE‑1P‑IP65‑00 (Individual Package) – Power Distribution Unit (Included).
- Description (PDU): Required to connect battery modules to the hybrid inverter. Each PDU supports up to 6 battery modules (30.72kWh).
- Base (Included): The bottom support seat.
Battery module details
- Product: SS‑5.1kWh‑ELITE‑BATT‑1P‑IP65‑00.
- Energy: 5.12kWh.
- Dimensions (W×D×H): 720×255×300mm.
- Weight: 55kg.
Elite BMS + base details
- Product: SS‑5.1kWh‑ELITE‑BMS+BASE‑1P‑IP65‑00.
- Dimensions (W×D×H): 720×255×228mm.
- Weight: 15kg.
- Built‑in circuit breaker: 250A 2P, 1000Vdc.
- Additional description: Pair of 2/0AWG DC power cable & RJ45 communication cable for external battery expansion of SS‑5.1kWh‑ELITE‑BMS+BASE‑1P‑IP65‑00, power cable one end has a waterproof terminal, communication cable both ends have waterproof terminals; cable length can be customised based on customer requirements, default length is 1500mm.
Hybrid inverter compatibility (context)
The Sunsynk Elite 5.1kWh battery is designed to operate with Sunsynk Elite HYB 1P IP65 hybrid inverters in 3.6kW, 5kW and 7kW ratings; the relevant inverter data is summarised in the same datasheet.
- Compatible inverter models (from shared datasheet): SS‑3.6kW‑ELITE‑HYB‑1P‑IP65‑00, SS‑5kW‑ELITE‑HYB‑1P‑IP65‑00, SS‑7kW‑ELITE‑HYB‑1P‑IP65‑00.
- Battery type (inverter battery input data): LiFePO4.
- Battery voltage (inverter battery input data): 40‑60V.
System‑level notes from Sunsynk
- Stackable capacity per PDU: 5.12kWh to 30.72kWh (up to six SS‑5.1kWh‑ELITE‑BATT‑1P‑IP65‑00 modules).
- PDU and base supplied as individual package SS‑5.1kWh‑ELITE‑BMS+BASE‑1P‑IP65‑00; includes cables for external battery expansion with customisable length (default 1500mm).
Shipping
Shipping for the Sunsynk Elite 5.1kWh Battery Storage is available to the UK, Ireland, Africa, the Caribbean and worldwide. If a shipping rate is not shown at checkout, please contact us on +44 2080640335 or info@energian.co.uk for a tailored quote.
UK expert support
The Sunsynk Elite 5.1kWh Battery Storage module must be installed and commissioned by a suitably qualified electrician or solar installer, and used with the correct Sunsynk Elite BMS, base and hybrid inverter for safety and warranty compliance. Our UK team can help you size the right number of 5.12kWh modules, select the appropriate Elite inverter, and design systems for logistics depots, commercial buildings and light industrial sites. UK expert support is available by phone, email or live chat, or you can visit our office for an in‑person consultation to review drawings, load profiles and project requirements.
