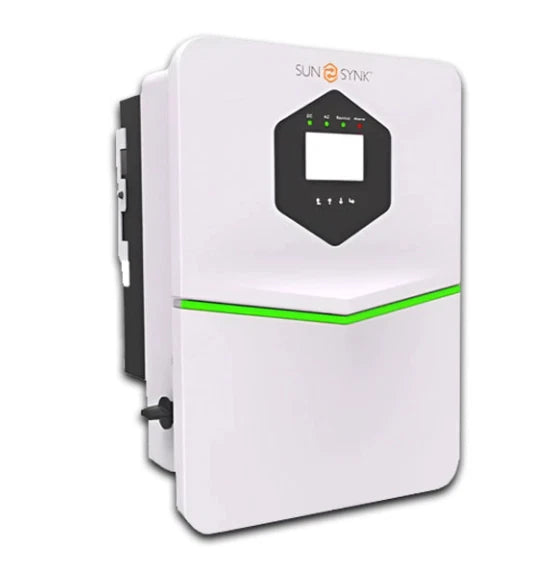

Sunsynk ACURE 8.0kW Single Phase Hybrid Inverter


By Sunsynk
Minus Plus

Sunsynk ACURE 8.0kW Single Phase Hybrid Inverter is backordered and will ship as soon as it is back in stock.

Delivery available

More details Right

Power Flexibility with Sunsynk ACURE 8.0kW Hybrid Inverter

  • Manage power from solar panels, batteries, grid, or generators for reliable supply in commercial or industrial settings.
  • Supports scalable setups: start with UPS backup and add solar later, or build full off-grid systems.
  • UK G98/G99 compliant for seamless grid connection.

The Sunsynk ACURE 8.0kW Single Phase Hybrid Solar Inverter (model SunC1-8.0LV01, white or black colour) handles diverse energy sources efficiently. Ideal for logistics warehouses, small factories, or off-grid sites needing flexible power. Pair with lithium-ion or lead-acid batteries for backup during outages.

Key Features

  • Dual MPPT trackers accept up to 12800W PV input (max access 16000W), enabling simultaneous generation and battery charging.
  • Multiple modes: grid-tie, hybrid, off-grid, battery-only; peak off-grid power at 2x rated for 10s.
  • IP65 rated for outdoor use; 5-year warranty (10 years with Sunsynk battery); WiFi/Bluetooth monitoring.
  • Self-adapts to battery BMS; G98/G99 grid compliant with anti-islanding.
  • Compatible with Sunsynk W-Series low voltage batteries, Sunsynk CATL, Pylontech US series and similar 48V systems providing adequate charge/discharge current.

Technical Specifications

Model: SunC1-8.0LV01
Battery Input Data
Battery Type: Lead-acid or Lithium-ion
Battery Voltage Range: 40-60V
Max. Charging Current: 190A
Max. Discharging Current: 190A
Charging Strategy for Li-ion Battery: Self-adaption to BMS
Number of Battery Input: 1
PV String Input Data
Max. PV Access Power: 16000W
Max. PV Input Power: 12800W
Max. PV Input Voltage: 500V
Start-up Voltage: 125V
MPPT Voltage Range: 150-425V
Rated PV Input Voltage: 370V
Max. Operating PV Input Current: 32+32A
Max. Input Short-Circuit Current: 48+48A
No. of MPP Trackers: 2
No. of Strings per MPP Tracker: 2+2
AC Input/Output Data
Rated AC Input/Output Active Power: 8000W
Max. AC Input/Output Apparent Power: 8800VA
Peak Power off-grid: 2 times rated power, 10s
Rated AC Input/Output Current: 22.8/21.8A
Max. AC Input/Output Current: 25/24A
Max. Continuous AC Passthrough Grid to Load: 40A
Rated Input/Output Voltage Range: 220/230V (0.85Un-1.1Un)
Grid Connection Form: L+N+PE
Rated Input/Output Grid Frequency Range: 50Hz (45-55Hz) / 60Hz (55-65Hz)
Power Factor Adjustment Range: 0.8 leading-0.8 lagging
Total Current Harmonic Distortion (THDi): <3% (of nominal power)
DC Injection Current: <0.5% In
Efficiency
Max. Efficiency: 97.6%
Euro Efficiency: 96.5%
MPPT Efficiency: 99%
General Data
Operating Temperature Range: -40 to 60°C (>45°C derating)
Permissible Ambient Humidity: 0-100%
Permissible Altitude: 2000m
Noise: 30dB
Ingress Protection IP Rating: IP65
Weight: 27.1kg
Cabinet Size (WxHxD): 366x630x281.4mm (excluding connectors and brackets)
Grid Regulation: G98/G99, NRS 097-2-1, EN 50549-1
Warranty: 5 years

Shipping

Available to UK, Ireland, Africa, the Caribbean, and worldwide. If no rate shown at checkout, contact +44 20 8064 0335 or info@energian.co.uk for a quote.

UK Expert Support

UK-based support via phone (+44 20 8064 0335), email (info@energian.co.uk), live chat, or in-person at our office. For safe installation, use certified partners – contact us to arrange.
