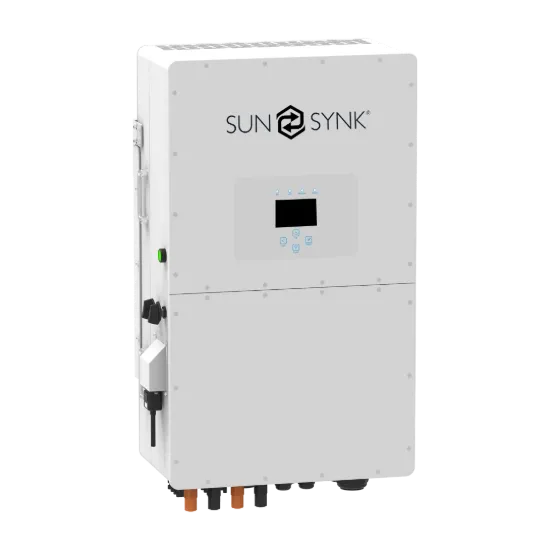

Sunsynk 20kW HV Commercial 3‑Phase Hybrid Inverter

Key benefits

  • 20kW three‑phase high‑voltage hybrid inverter for commercial and light industrial solar‑plus‑storage systems, combining PV and battery control in one unit.
  • High‑efficiency design with up to 97.6% max efficiency and >99% MPPT efficiency to maximise yield from rooftop or ground‑mount PV arrays.
  • Wide 160–800V battery voltage range and up to 50A + 50A charge/discharge current, ready for high‑voltage Li‑ion storage banks.

Brief description

The Sunsynk 20kW HV Commercial 3‑Phase Hybrid Inverter is part of the Sunsynk three‑phase HI range, designed for medium‑sized commercial and industrial sites that want to combine solar generation with high‑voltage battery storage. With multiple MPPT trackers, high DC input power and integrated protection, it is suited to offices, warehouses, logistics depots and small production facilities needing reliable three‑phase power support. Wall‑mounted IP65 construction and intelligent air cooling allow installation in plant rooms and service areas with minimal maintenance.

Key features

  • High‑voltage Li‑ion battery support from 160 to 800V with dual battery inputs and automatic BMS communication.
  • Up to three or four MPPTs (model dependent) with wide 150–850V MPPT range and high DC input power for complex commercial arrays.
  • Three‑phase AC output at 220/380 or 230/400Vac, with low THD and adjustable power factor from 0.8 leading to 0.8 lagging.
  • Integrated protections including DC and AC surge protection, anti‑islanding, residual current monitoring and over‑current/short‑circuit protection.
  • IP65 metal enclosure, intelligent air cooling and operating temperature from ‑40°C to +60°C (derating above 45°C) for demanding commercial environments.

Technical specifications

Battery input data

Battery Type Li‑Ion
Battery Voltage Range 160~800V
Max. Charging Current 50A+50A
Max. Discharging Current 50A+50A
Number of battery input 2
Charging Strategy for Li‑Ion Battery Self‑adaption to BMS

PV string input data

Max. DC Input Power 39000W
Max. DC Input Voltage 1000V
Start‑up Voltage 180V
MPPT Range 150‑850V
Full Load DC Voltage Range 360‑850V
Rated DC Input Voltage 600V
PV Input Current 36A+36A+36A
Max. PV Isc 55A+55A+55A
No. of MPPT Trackers 3
No. of Strings per MPPT Tracker 2+2+2

AC output data

Rated AC Output and UPS Power 30000W
Max. AC Output Power 33000W
Peak Power (off grid) 1.5 time of rated power, 10 s
AC Output Rated Current 45.4/43.4A; 45.5/43.5A; 53.1/50.8A; 60.7/58.0A; 75.8/72.5A (model dependent)
Max. AC Current 45.4A/43.4A
Max. Three‑phase Unbalanced Output Current 60A
Max. Continuous AC Pass through 200A
Power Factor 0.8 leading to 0.8 lagging
Output Frequency and Voltage 50/60Hz; 3L/N/PE 220/380, 230/400Vac
Grid Type Three Phase
Total Harmonic Distortion (THD) <3% (of nominal power)
DC injection current (mA) <0.5%In

Efficiency

Max. Efficiency 97.60%
Euro Efficiency 97.00%
MPPT Efficiency >99%

Protection

PV Input Lightning Protection Integrated
Anti‑islanding Protection Integrated
PV String Input Reverse Polarity Protection Integrated
Insulation Resistor Detection Integrated
Residual Current Monitoring Unit Integrated
Output Over Current Protection Integrated
Output Shorted Protection Integrated
Output Over Voltage Protection DC Type II / AC Type III
Battery Over Current Protection Fuses

Certifications and standards

Grid Regulation VDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI 0 21, EN50549‑1, G98, G99, C10‑11, UNE217002, NBR16149/NBR16150
EMC/Safety Regulation IEC62109‑1/-2, NBT32004‑2018, EN61000‑6‑1, EN61000‑6‑2, EN61000‑6‑3, EN61000‑6‑4

General data

Operating Temperature Range ‑40~60 ºC, >45 ºC Derating
Cooling Intelligent air cooling
Noise ≤65 dB
Communication with BMS RS485; CAN
Weight 88kg
Size 527W × 894H × 294D mm
Protection Degree IP65
Installation Style Wall‑mounted
Warranty 5 years

Shipping

Shipping is available to the UK, Ireland, Africa, the Caribbean and worldwide. If the shipping rate is not shown at checkout, please contact us on +44 2080640335 or info@energian.co.uk for a tailored shipping quote.

UK expert support

UK expert support is available to help with system design, battery selection and integration of the Sunsynk 20kW HV Commercial 3‑Phase Hybrid Inverter into new or existing commercial systems. For multi‑inverter or high‑voltage battery installations we recommend commissioning via our trusted partners to ensure correct protection settings, grid compliance and safe operation.

You can contact us by phone, email or live chat, or visit our office for an in‑person consultation to review your site layout, loads and future expansion plans.
