Double the Capacity of ESS with SolaX T30 and T58 Triple Power 3.0kWh and 5.8kWh Battery Systems
Trade only product - MCS or NICEIC membership required.
Attention homeowners! Pay zero VAT and save time by ordering installation through one of our trusted partners. Click here to enquire today.
Are you an installer? This product is designed for quick and easy installation. Become a partner, delight your customers, and grow your business. Call 020 8064 0335 to become an authorised partner today.

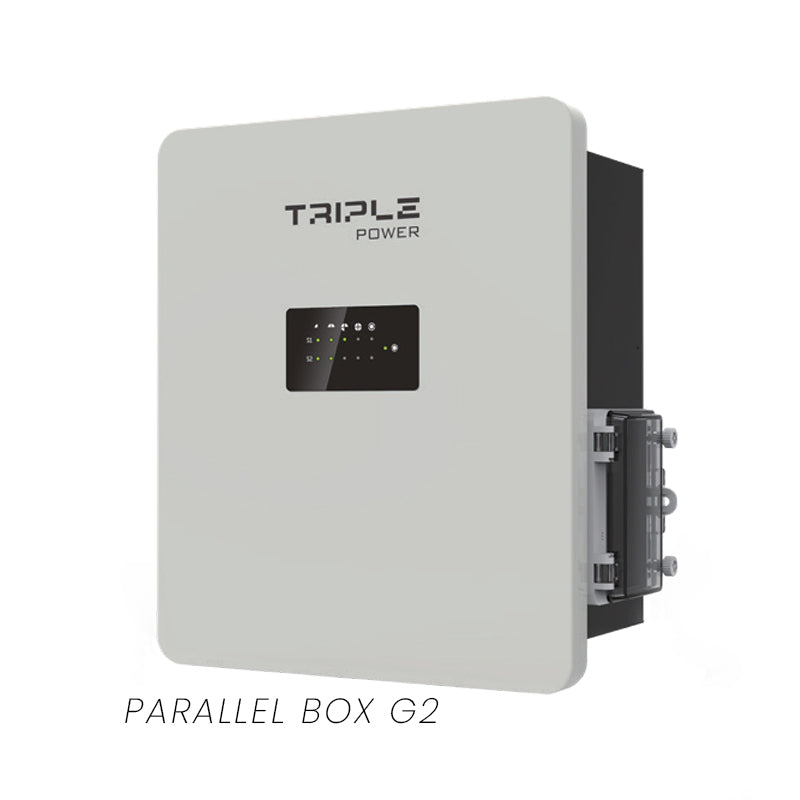

The SolaX BMS Parallel Box II G2 enables you to double up on battery storage capacity when using the Triple Power T58 5.8kWh and T30 3.0kWh batteries.
NEW: BMS Parallel Box II G2 works with T58 5.8kWh MASTER batteries, meaning it is easier to retro-fit to existing systems.
How many batteries can be installed with BMS Parallel Box II G2?
- Single Phase with X1-FIT and X1-HYBRID G4 Inverters: Install either 2, 4, 6 Triple Power 3.0kWh Batteries or Triple Power 5.8kWh Batteries
- Three Phase with X3-FIT and X3-HYBRID G4 Inverters: Install either 4, 6, 8 Triple Power 3.0kWh Batteries or Triple Power 5.8kWh Slave batteries
Detailed specifications:
Input/Output voltage Range:
|
70-550V
|
Standard Power:
|
11.5kW
|
Maximum Power:
|
16.1kW
|
Charge/discharge current (recommended):
|
25A
|
Charge/discharge current (maximum):
|
35A
|
Depth of discharge:
|
90%
|
Lifecycle (25°C, @90% DOD):
|
>6000
|
Working temperature:
|
0-55°C
|
Full-load operating temperature range:
|
5-48°C
|
Humidity:
|
4% to 100%
|
Ingress protection:
|
IP55
|
Communication:
|
RS485/CAN
|
Net weight:
|
8.7kg
|
Size (W*H*D):
|
368*334*153.5mm
|
For more information, call us on 020 8064 0335 or email info@energian.co.uk.
