Elevate Your Energy Storage with the SolaX T30 Triple Power 3.0-9.0/12.0kWh Battery with BMS
Trade only product - MCS or NICEIC membership required

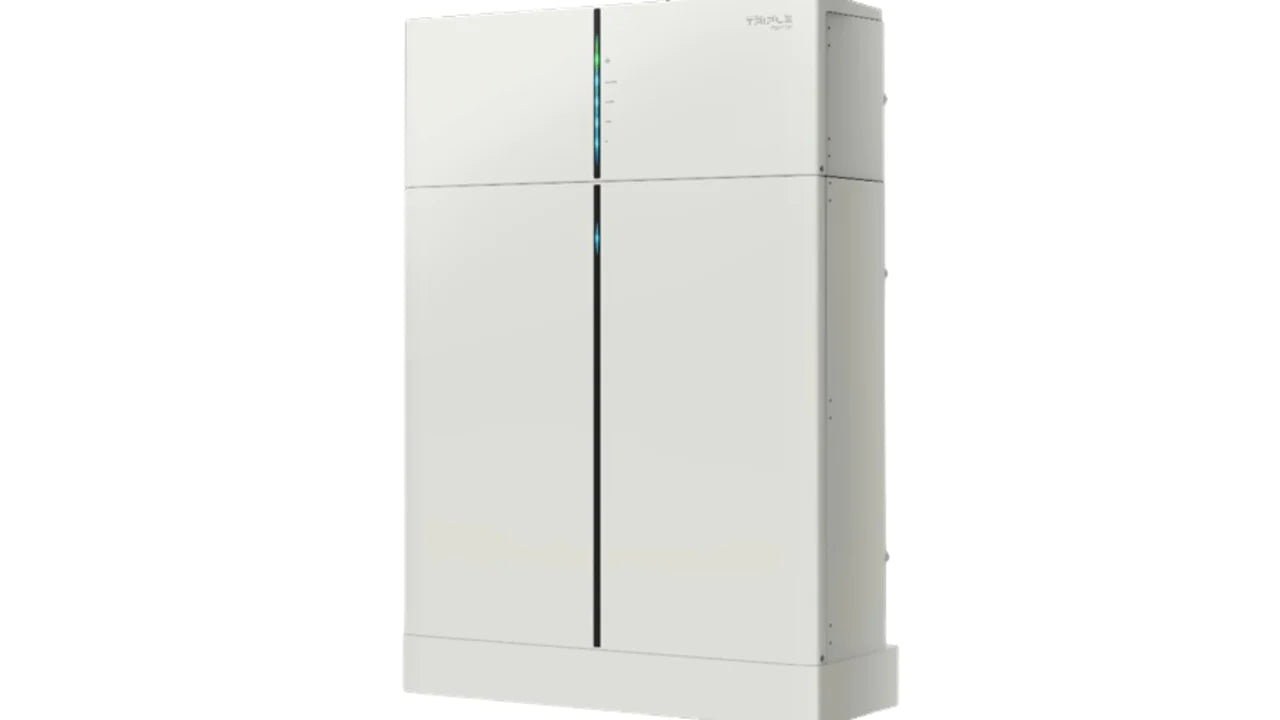

The Triple Power 3.0kWh is the latest model in the extremely popular SolaX Triple Power Battery range, offering a full charge achievable in only 1 hour.
Key Features:
-
Domestic 1ph AC-Coupled Energy Storage Systems: Ideal as a retrofit to existing PV installations, the SolaX Power Triple Power 3.0kWh Batteries + SolaX X1 AC Coupled Charger Inverters allow you to generate energy from your solar panels during the day and directs excess energy into your battery for later use, maximizing the utilization of your generated energy.
-
Advanced Battery Management System (BMS): Equipped with advanced technology, SolaX Triple Power TP30 battery ensures excellent performance and longevity. The intelligent BMS, required for each battery stack, optimizes charging and discharging, protecting against overcharging, deep discharging, and temperature fluctuations, enhancing safety and extending the overall lifespan of the battery. Excellent deep discharge (DoD) capabilities allow homeowners to draw more power before recharging.
-
Compact Size & Easy Installation: The world-class compact and lightweight design of the SolaX Triple Power 3.0kWh Battery allows for easy wall-mounted or floor-standing installation for indoor and outdoor applications. With a depth of only 153 mm, the storage unit can be installed anywhere, offering simplified inverter connections for reduced installation time and costs.

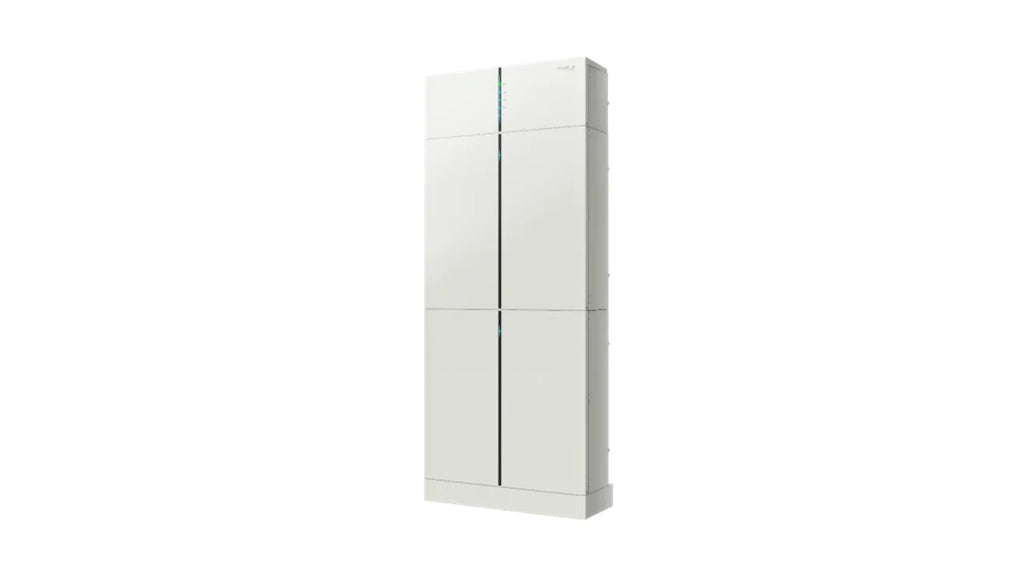

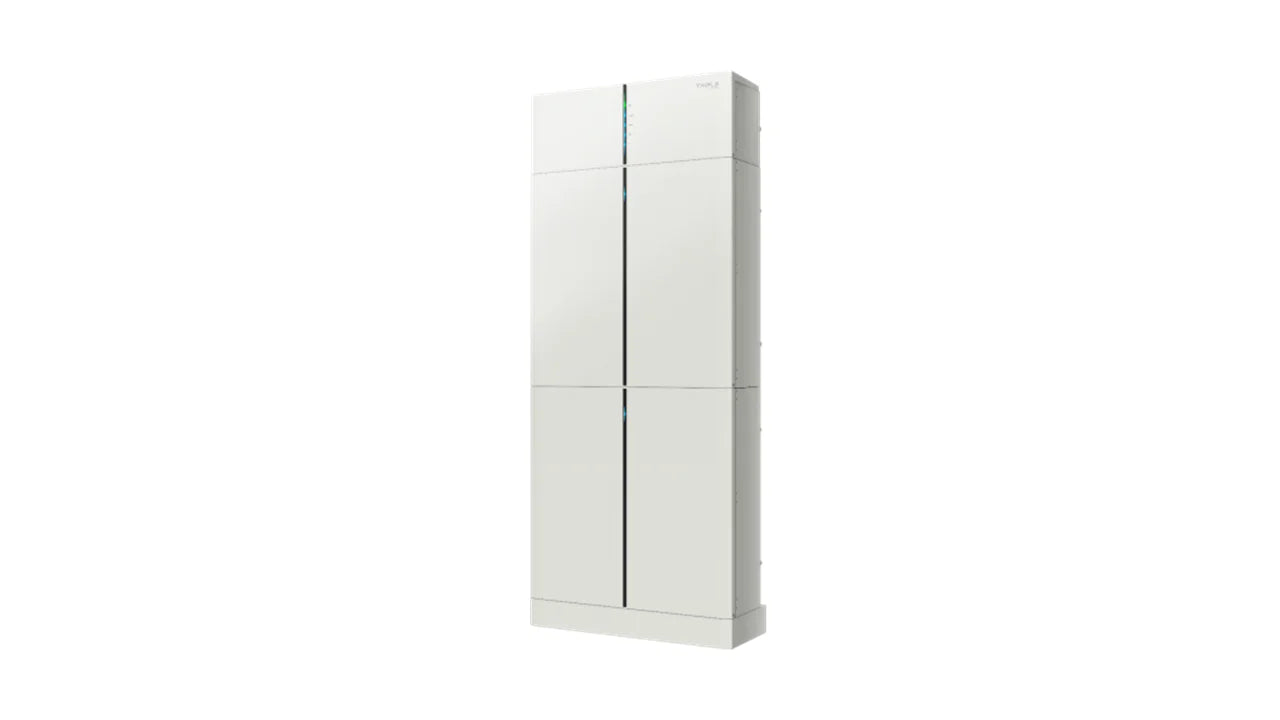

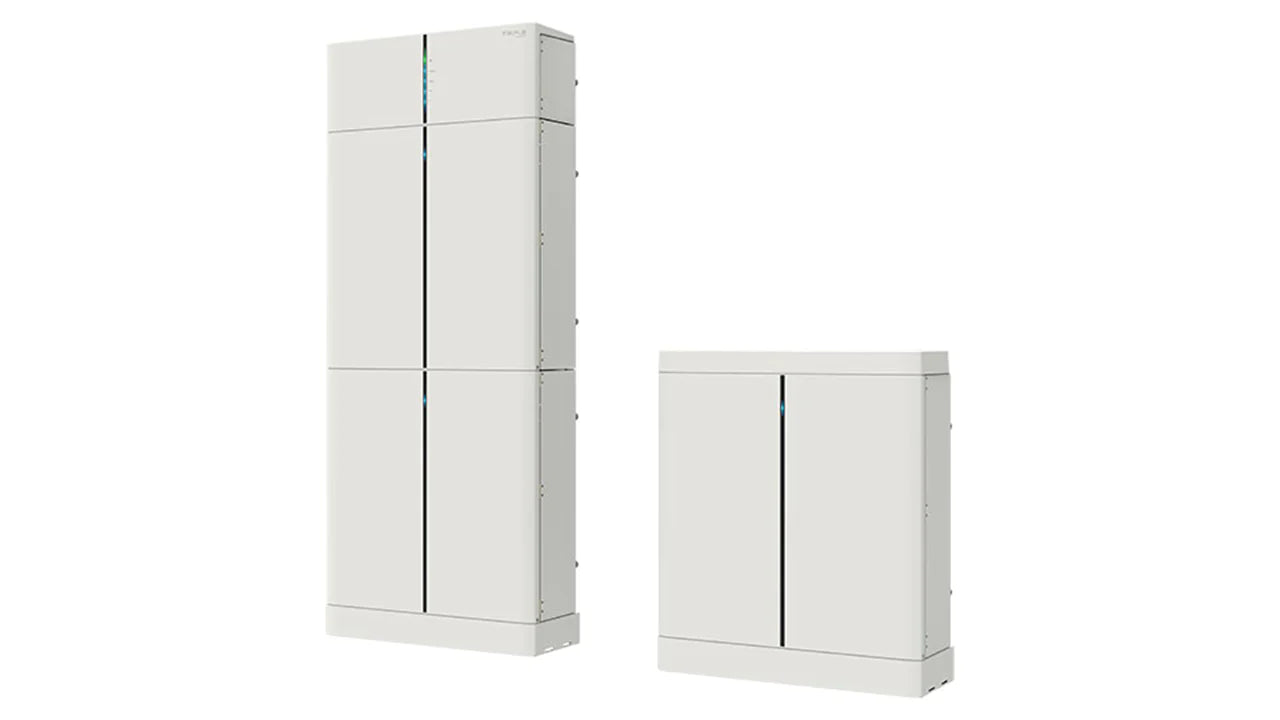

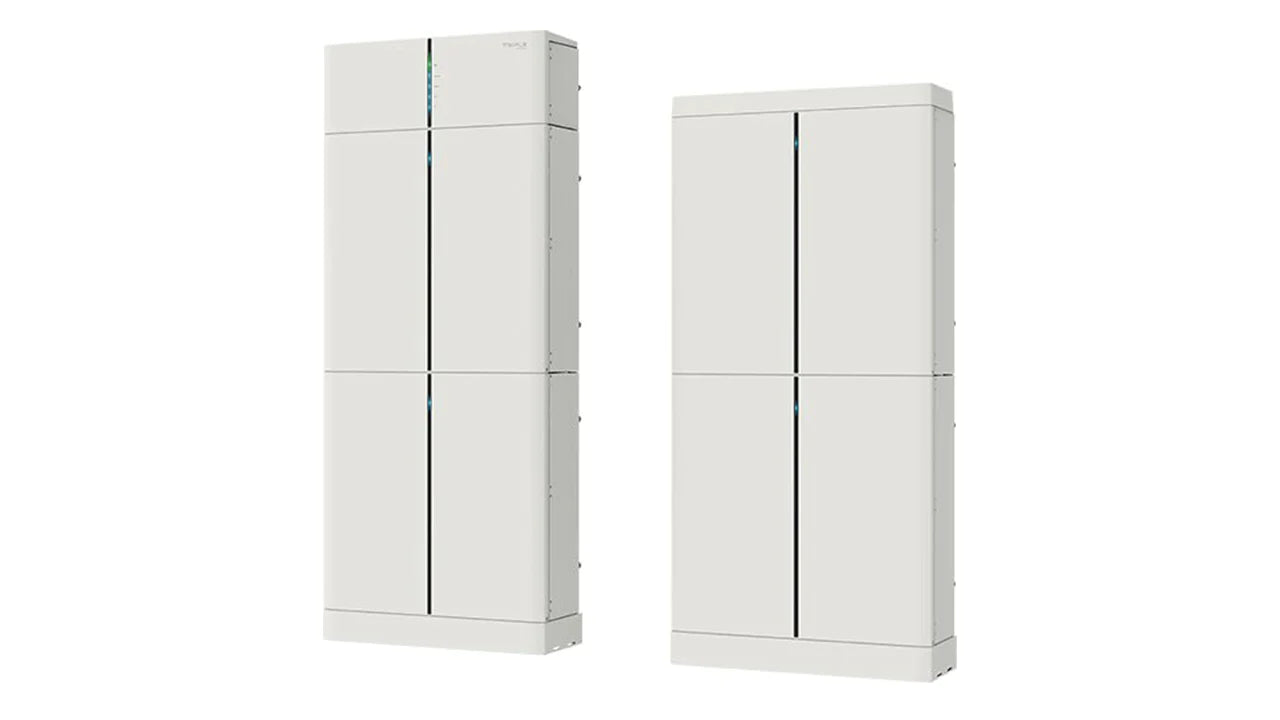

- Scalability: Scalable to 9kWh with SolaX X1 3.0kWh HV, SolaX X1 3.6 kWh HV AC Coupled Inverters and to 12kWh with SolaX X1 RetroFit 5.0KW HV and SolaX X1 RetroFit 7.5kW HV AC Coupled Inverters ,or SolaX X1 3.0kWh HV, SolaX X1 3.7kWh HV, SolaX X1 5.0kWh HV, SolaX X1 6.0kWh HV, and SolaX X1 7.5kWh HV Single Phase Hybrid Inverters with WiFi.
-
Proven Safety: SolaX prioritizes safety, employing technology with a proven record. All products are fully certified in relevant global standards.
-
Prompt Delivery: Benefit from the advanced features of SolaX Triple Power 3.0kWh Lithium Battery with a prompt 2-3 working days delivery within the UK (longer to the Highlands, islands, and Northern Ireland).
Power up your energy storage capabilities with SolaX's reliable and efficient solution.
Detailed specifications:
| Battery Type: Lithium-Ion |
| Nominal Voltage: 102.4V |
| Operating Voltage Range: 90.0 - 116.0V |
| Total Energy: 3.0kWh |
| Usable Energy: 2.7kWh |
| Rated Capacity: 30Ah |
| Nominal Power: 2.5kW |
| Max. Power: 3.0kW |
| Recommended Charge/Discharge Current: 25A |
| Max. Charge/Discharge Current: 30A |
| Battery Pack Round-Trip Efficiency:95% |
| Depth of Discharge: 90% |
| Cycle Life: 6000 (25°C, @90% DOD) |
| Expected life time / Warranty: 10 years |
| Operating Temperature Range: -30 ~ +50°C |
| Humidity: 0% to 100% (No Condensing) |
| Ingress Protection: IP65 |
| Battery to Inverter: RS485/CAN2.0 |
| Battery to Battery/BMS: CAN2.0 |
| Net Weight: BMS MC0600: - 7.5kg; Battery HV10230 - 34.5kg |
| Size: BMS MC0600: - 482.5×173.5×153mm; Battery HV10230 - 482.5×471.5×153mm |
- 1 X SOLAX BMS MC0600,
- 1...3 X SOLAX 3.0kWh T30 Solar Battery, if used with SolaX X1 AC Coupled Charger Inverter, or
- 1...4 X SOLAX 3.0kWh T30 Solar Battery, if used with SolaX X1-FIT G4 AC Coupled Inverters or SolaX X1 Hybrid Inverter,
- for 3 or 4 batteries: Triple Power X-ESS 3 and 4 battery install kit - cable and base;
- 1 X SOLAX 3.0kWh T30 Solar Battery User's Manual.
Don't see the answer to your question? Call us on 020 8064 0335 or email info@energian.co.uk.
