SolarEdge 102.4 kWh Battery Cabinet
Trade product for commercial and industrial projects. System design, compatibility checks and UK installation support available through Energian and trusted partners.
Need help with system design, inverter matching or backup architecture? Call +44 2080640335, email info@energian.co.uk or use live chat.

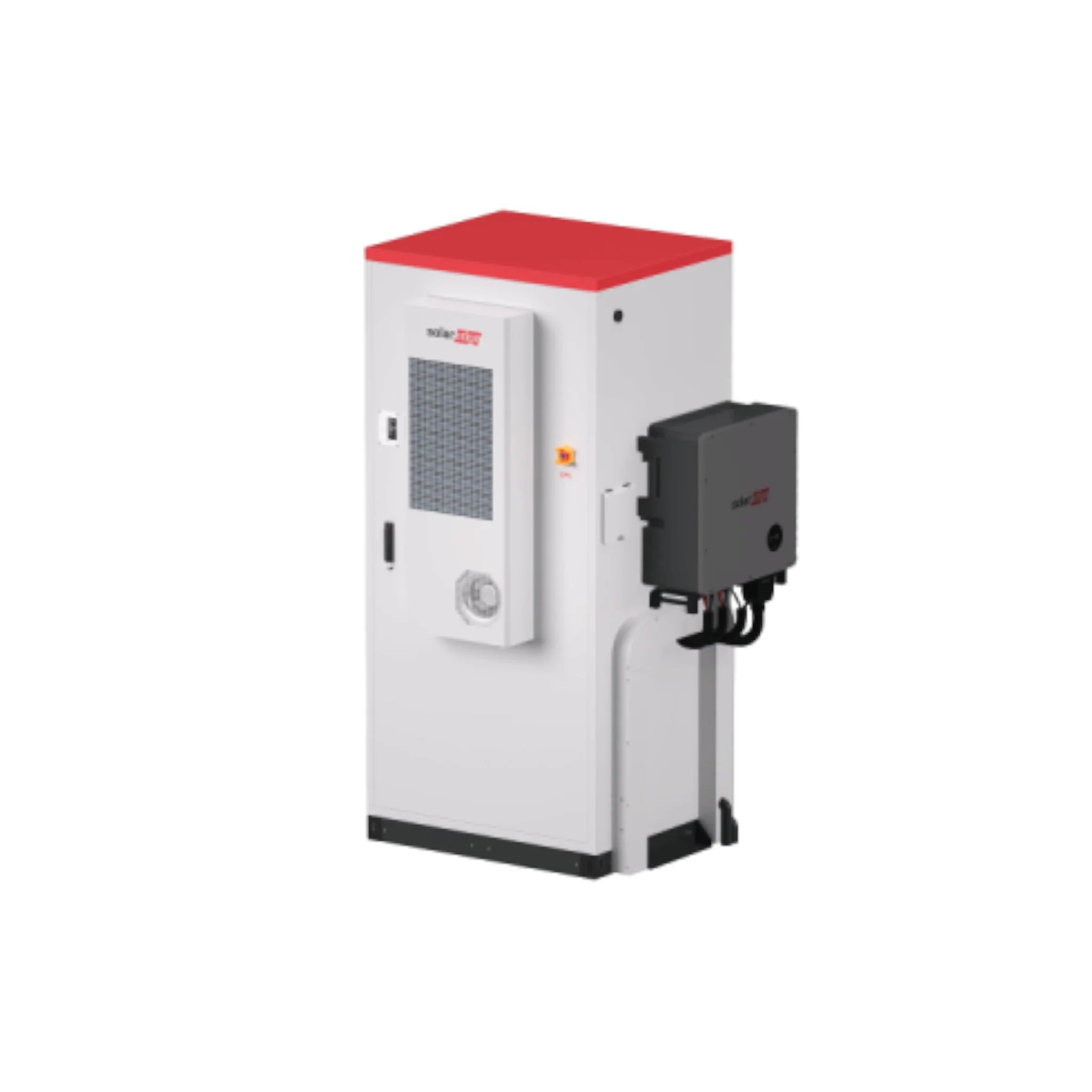

SolarEdge 102.4 kWh Battery Cabinet for commercial storage
- 102.4 kWh total capacity with 97.28 kWh usable energy for commercial and industrial energy storage.
- Pre-assembled cabinet with built-in HVAC, suitable for indoor or outdoor installation.
- Designed for AC-coupled SolarEdge sites and managed through the SolarEdge ONE platform.
Brief description
The SolarEdge CSS-OD Battery Cabinet 102.4 kWh is a commercial and industrial storage unit built around LFP cells and supplied as a pre-assembled cabinet for quicker deployment. It is intended for AC-coupled SolarEdge PV sites and is suited to applications such as self-consumption, load shifting and larger site storage projects where a high-capacity cabinet format is preferred.
This listing is for the battery cabinet model CSS-OU-20. The battery inverter is a separate product in the CSS-OD system, so please contact Energian if you need a complete matched solution including the SolarEdge AC Coupled 50kW PCS050 inverter, controls and backup interface options.
Key features
- Cell chemistry: LFP.
- Dual-cluster architecture with 10 + 10 battery modules.
- Integrated fire detection and double fire suppression mechanism.
- Built-in safeguards including earth fault, leakage fault and integrated DC & AC surge protection at system level.
- 10-year system warranty, with performance warranty of 6000 cycles or 10 years up to 70% SoH.
Applications
A good fit for logistics depots, warehouses, commercial rooftops, factories and other C&I sites looking to pair SolarEdge PV with higher-capacity storage. Where backup or microgrid functionality is required, this should be specified as part of the wider SolarEdge commercial storage architecture rather than used as a standalone out-of-the-box solution.
Technical specifications
| Model | CSS-OU-20 |
| Cell Chemistry | LFP |
| Total Battery Capacity | 102.4 kWh |
| Usable Battery Capacity | 97.28 kWh |
| Battery Module Total Capacity | 5.12 kWh |
| Number of Modules | 10 + 10 |
| Maximum C-Rate (charge/discharge) | 0.5 C-rate |
| Operating Voltage | 456 – 576 Vdc |
| AC Auxiliary Input | 220±15% / 50; 220±10% / 60 Vac / Hz |
| Battery Cabinet Dimensions (W x D x H) | 1100 x 930 x 2380 mm |
| Battery Cabinet Weight | 1421 kg |
| IP Protection | IP54 |
| Corrosion Protection | C4 |
| Cooling Method | Built-in HVAC |
| HVAC Refrigerant / Refrigerant Weight | R134a / 650 g |
| Noise | 65 dBA |
| Safety | IEC 62619 including 7.3.3 section |
| Ingress Protection Standard | IEC 60529 |
| Transportation | UN 38.3 |
| Emissions | EN / IEC 61000-3-3; EN / IEC 61000-6-2; EN / IEC 61000-6-4 |
| Operating Temperature | -20 to 45 °C |
| Operating Humidity | 5 – 95 (non-condensing) % |
| Maximum Operating Altitude | 3000 m |
| Distance to Coastline | ≥1 indoor / ≥2 outdoor km |
| System Warranty | 10 years |
| Performance Warranty | 6000 cycles or 10 years up to 70% SoH |
