RAULI FACADE & Wall Solar Panel Mounting Kits
- Mount solar panels vertically or at a designed angle on suitable building façades and walls.
- Quote-led mounting kits configured around your panel size, layout, wall construction and local wind loading.
- Suitable for residential, commercial, agricultural and industrial wall-mounted solar PV projects.
RAULI façade and wall solar panel mounting kits

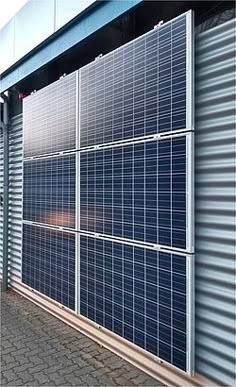

RAULI façade and wall solar panel mounting kits are designed for solar PV installations where roof area is limited, unsuitable or already occupied. They allow solar panels to be mounted to a suitable wall or façade structure in portrait or landscape orientation, subject to the selected kit and project design.
A wall-mounted solar array needs more than rails and clamps. The correct kit must account for panel dimensions and weight, the wall substrate, fixing pull-out capacity, wind loading, ventilation behind the modules, cable routing and safe installation access. Energian can help specify a suitable kit and refer installation through trusted partners.
Key features
- Uses unused wall area: A practical solar PV option for buildings with limited or unsuitable roof space.
- Project-configured kits: Select a kit around the required number of panels, panel orientation and façade layout.
- Suitable for varied applications: Can support residential, commercial, agricultural and industrial wall-mounted solar projects where the structure is suitable.
- Design-led installation: Wall condition, fixing method, panel loading and wind exposure must be assessed before ordering.
- System-ready support: Energian can help match compatible solar panels, inverter equipment, DC protection and cable-management components.
Where to use

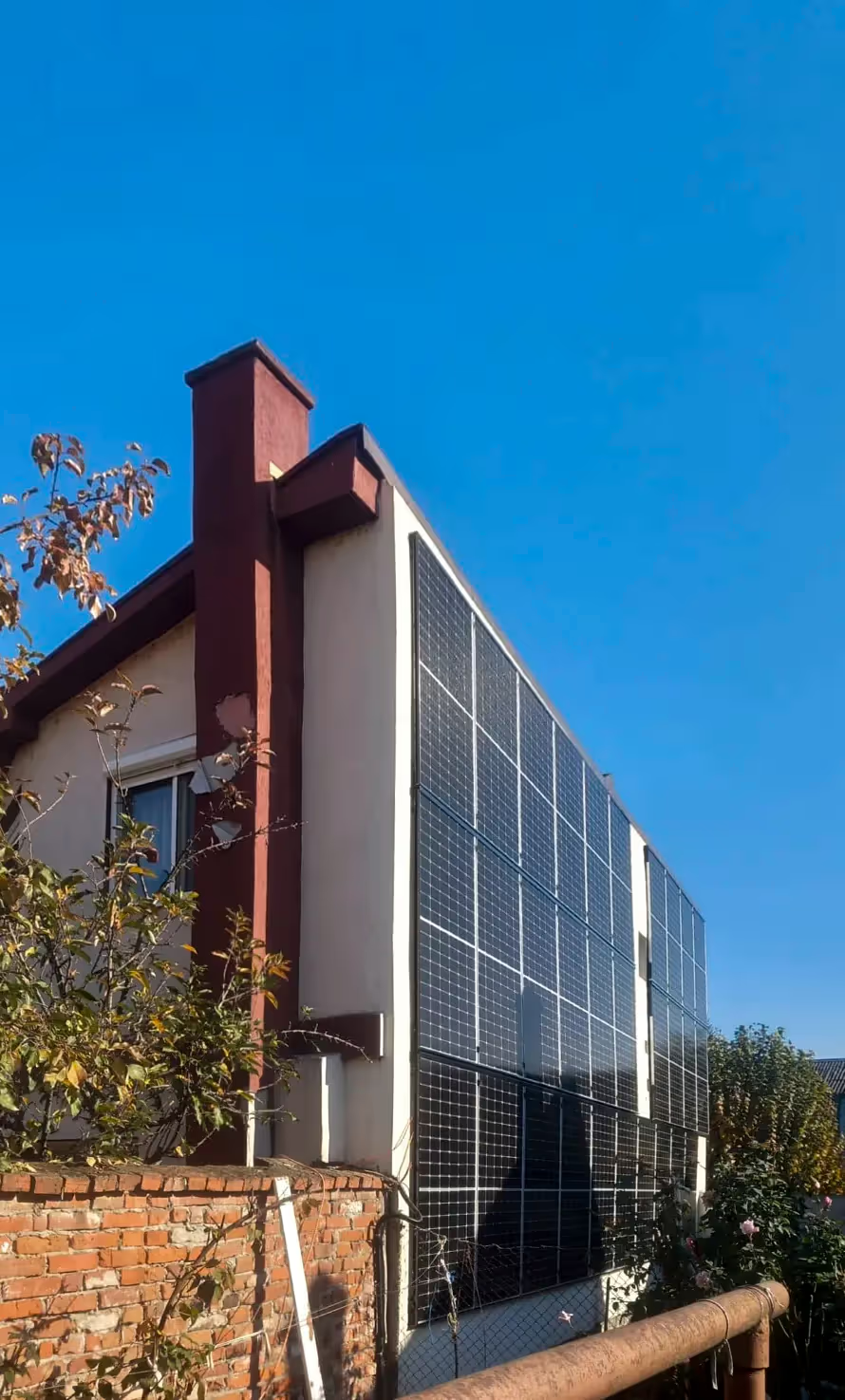

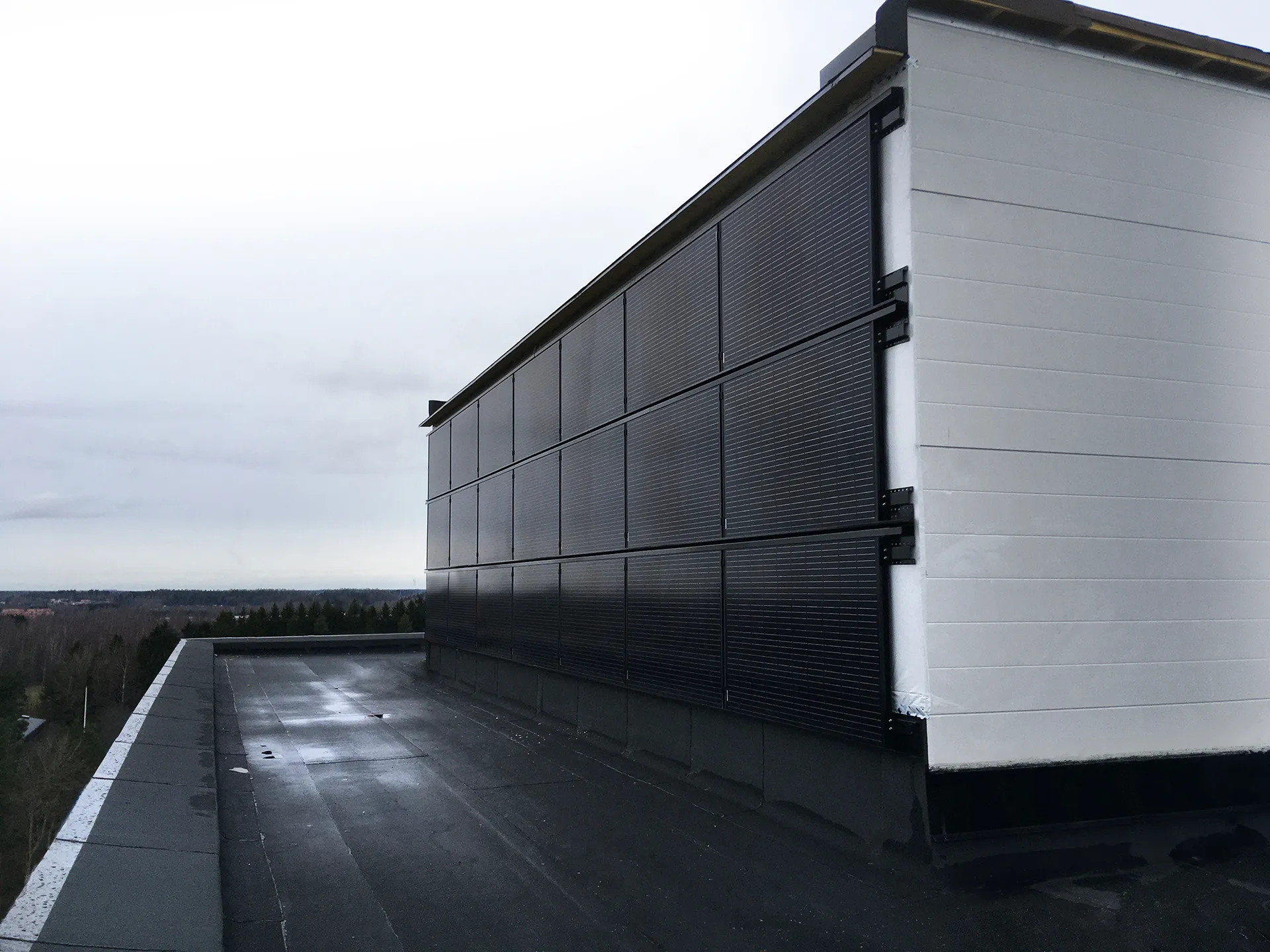

RAULI façade and wall solar panel mounting kits are suitable for external walls of homes, offices, warehouses, workshops, agricultural buildings, logistics facilities, schools and commercial premises. They can be considered for south-, east- or west-facing walls where a solar feasibility assessment supports the proposed layout.

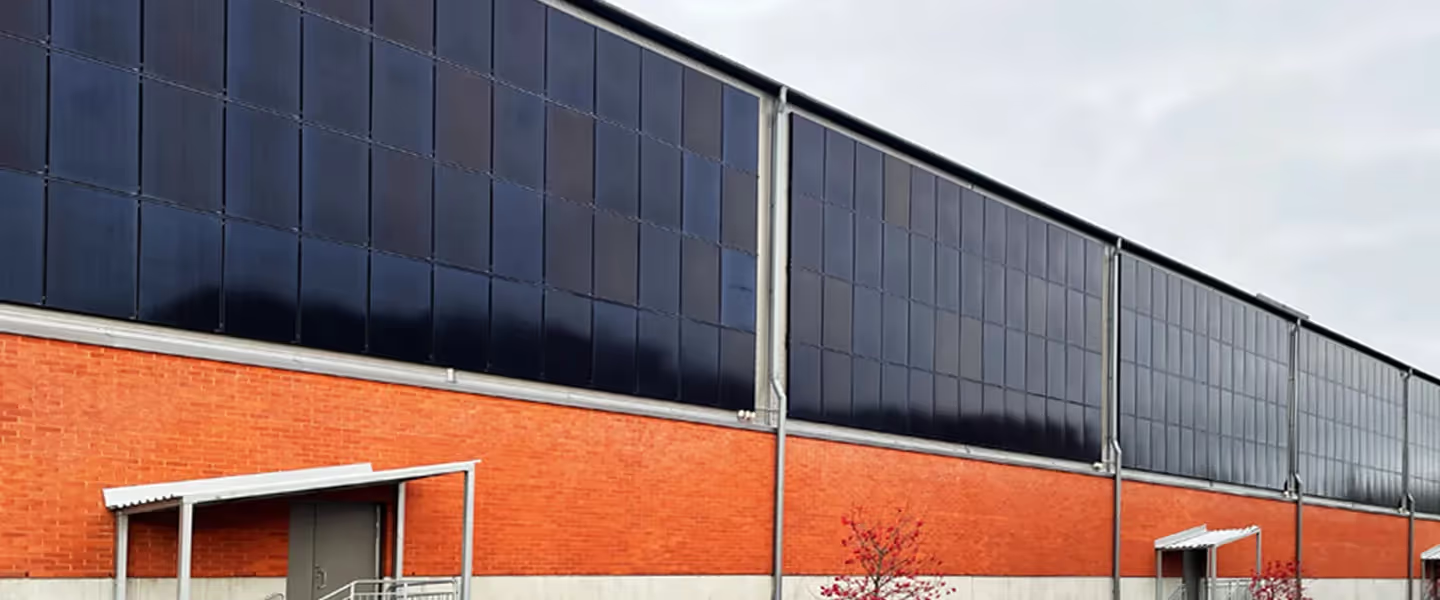

Typical uses include barn walls, warehouse façades, workshop elevations, perimeter walls, plant-room walls and areas where a ground-mounted array is not possible. Wall-mounted panels can also be useful where snow shedding, lower sun angles or site layout support a vertical or near-vertical array design.
A competent installer or structural engineer must confirm that the wall and its fixings can carry the permanent and wind-induced loads. This product is not a universal out-of-the-box kit: the wall substrate, fixing method, panel type and local wind exposure must be checked for every installation.
Technical specifications
| Product range | RAULI Façade & Wall Solar Panel Mounting Kits |
| Application | Wall- and façade-mounted solar PV installations |
| Panel orientation | Portrait or landscape, subject to the selected kit and project design |
| Panel quantity | Configured to the required project layout |
| Compatible panel dimensions | Standard, commercially available solar panels |
| Wall substrate | Suitable for concrete, brick, wood, metal and other wall materials |
| Fixing method | EASY SLIDE installation: panels slide into position between rails |
| Wind loading | Up to 60 m/s when configured correctly |
| Snow loading | Do not apply to vertical facade installations |
| Ventilation clearance | The RAULI FACADE & WALL mounting system provides rear ventilation through its unique EasySlide profile layout |
| Included components | Confirmed in the project quotation and bill of materials |
| Installation | Professional installation recommended; use a competent installer and follow project-specific design documentation |
Documents available for download
Shipping
Available for delivery throughout the UK, Ireland, Africa, the Caribbean and worldwide. If a shipping rate is not shown at checkout, please contact us on +44 2080640335 or info@energian.co.uk for a quote.
UK expert support
UK expert support is available for façade layout, solar panel selection, mounting compatibility, inverter matching and complete solar PV system design. Contact Energian by phone, email or live chat, or visit our office for an in-person consultation. For wall-mounted solar systems, we recommend installation through trusted partners following a suitable structural assessment.
