PYLONTECH US2000С 2.4-38.4kWh 48v Solar Battery System (Excl. Brackets)


Installation & VAT Refund

Delivery available

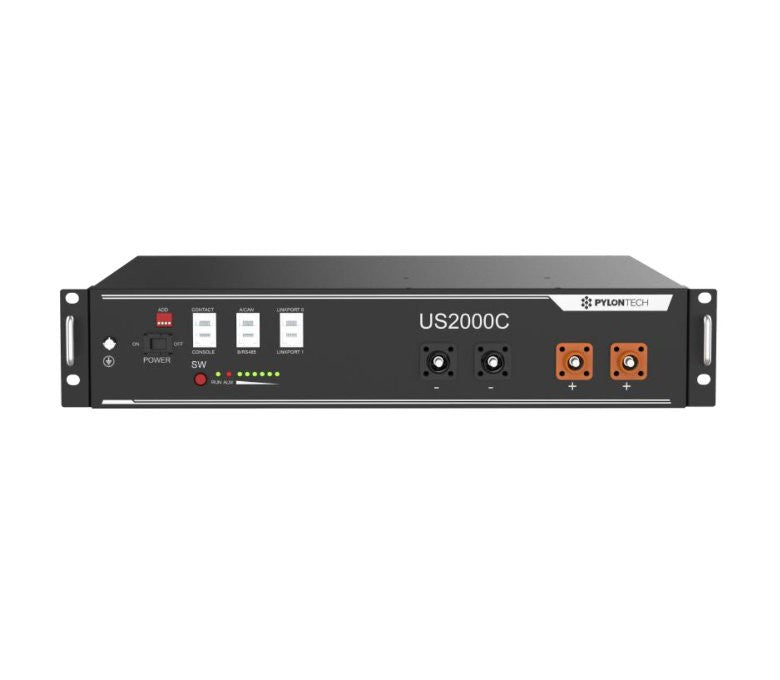

PYLONTECH US2000C: The Pinnacle of Photovoltaic Storage Innovation from 2.4kWh to 38.4kWh

Unlock the future of photovoltaic storage with the PYLONTECH US2000C, boasting a 2.4kWh capacity. Its simplicity and modularity make it the ideal choice for both small and large accumulation systems, adapting to current and future energy needs.

One pair of Pylon US2000C Battery Brackets are required for each battery!

Discover the ultimate solution you've been waiting for:

  • Modular Marvel: Engineered for ease of expansion with a modular design, allowing for seamless scalability.

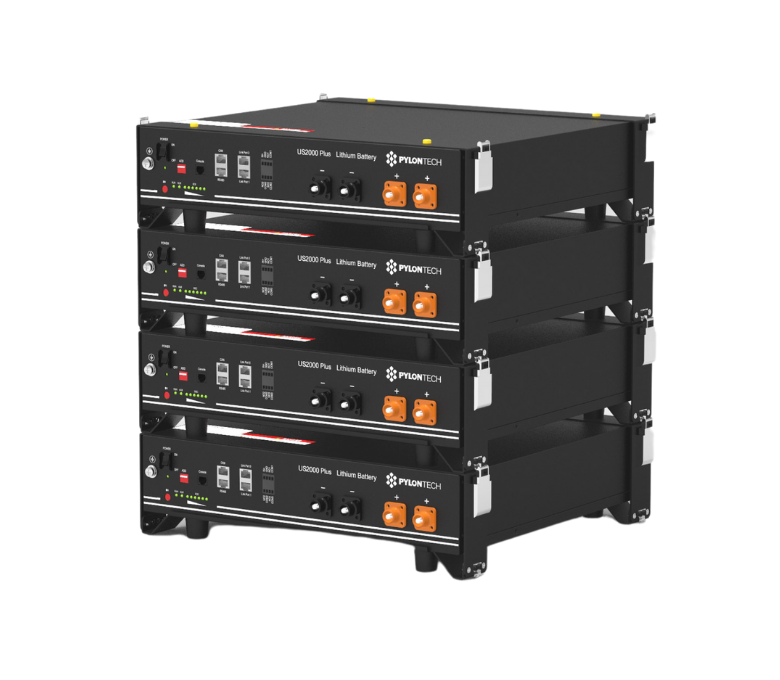

  • Parallel Powerhouse: Parallel Capability of up to 16 units, offering a flexible and powerful up to 38.4kWh energy storage solution.
  • Efficient Usable Capacity: Higher usable capacity results in fewer battery modules installed, enabling large installations of up to 38.4kWh without the need for an LV Hub.
  • Optimized Discharge: Boasting a 95% Depth of Discharge (DoD) with a usable capacity of 2280Wh, ensuring maximum efficiency.
  • Intelligent BMS: Equipped with an intelligent Battery Management System (BMS) that safeguards battery cells and is RS485 and CAN compatible.
  • Long-Lasting Performance: Ensures a long cycle life and superior performance, backed by a 7-year warranty extendable to 10 years upon online registration.

PYLONTECH US3000C: Unveiling Unparalleled Features

  • The PYLONTECH US2000C 2.4KWH LITHIUM-ION (LFP) SOLAR BATTERY is a testament to innovation, crafted with Pylontech's lithium iron phosphate cells and vertical industry integration. Key features include:
    • Impressive Life Cycle: Offers an incredible life cycle of 6000 cycles at an outstanding Depth of Discharge (DoD) of 95%.
    • Self-Designed BMS: Boasts a self-designed BMS that safeguards cells from abnormal temperature, current, voltage, State of Charge (SoC), and State of Health (SoH).
    • Extended Warranty: Comes with a standard 7-year warranty, extendable to 10 years upon registration, covering manufacturing or material faults.
  • The PYLONTECH US2000С 2.4KWH LITHIUM-ION (LFP) SOLAR BATTERY is specifically crafted for low voltage systems (48V), ensuring simplicity and modularity. Key highlights include:
    • Simplicity in Integration: Guarantees simplicity and modularity, ensuring a minimum capacity of38.4kWh for all single-phase inverters.
    • Integrated BMS: In low voltage batteries, the BMS is seamlessly integrated, independently managing and monitoring cell status, voltage, current, and temperature.
    • Protection Mechanism: Functions as an overload and over-current protection system, ensuring robust safety.
  • LV Inverter Compatibility: PYLONTECH US2000C 2.4KWH Battery is meticulously crafted for seamless integration with Solis RAI 5G 3.0kW AC Coupled Inverter ChargerSolis 3.0kW 5GSolis 3.6kW 5GSolis 4.6kW 5GSolis 5.0kW 5GSolis 6.0kW 5GSunsynk ECCO 3.6kWSunsynk ECCO 5.0kWSunsynk ECCO 8.0kW, and Sunsynk Max 16.0kW Single Phase Hybrid Inverters.
  • Delivery: 2-3 WORKING DAYS delivery within the UK (delivery times may vary to the Highlands, islands, and Northern Ireland).

    Detailed specifications:

    Battery Type: Lithium-Ferro-Phosphate (LFP
    Nominal Capacity: 2.4kWh
    Nominal Voltage: 48.0V
    Recommended Discharge Current: 25A
    Max. Charge/Discharge Current: 25A
    Battery Pack Round-Trip Efficiency: 95%
    Depth of Discharge: 95%
    Scalability: Up to 16 units in parallel
    Cycle Life: >6000 (25°C, @90% DOD)
    Installation Location: Indoor
    Operating Temperature: Charge: 0 ~+50°C, Discharge: -10 ~ +50°C
    Shelf Temperature: -20 ~ +60°C
    Humidity: 5% to 95% (No Condensing)
    Ingress Protection: IP20
    Net Weight: 22.5kg
    Size:  442*410*89mm

    In the Box:
    • 1 X PYLONTECH US2000С 2.4kWh Solar Battery,
    • 1 X PYLONTECH US2000С 2.4kWh Solar BatteryUser's Manual.

    Documents available for download:

    Data Sheet US2000C, US3000C and US5000
