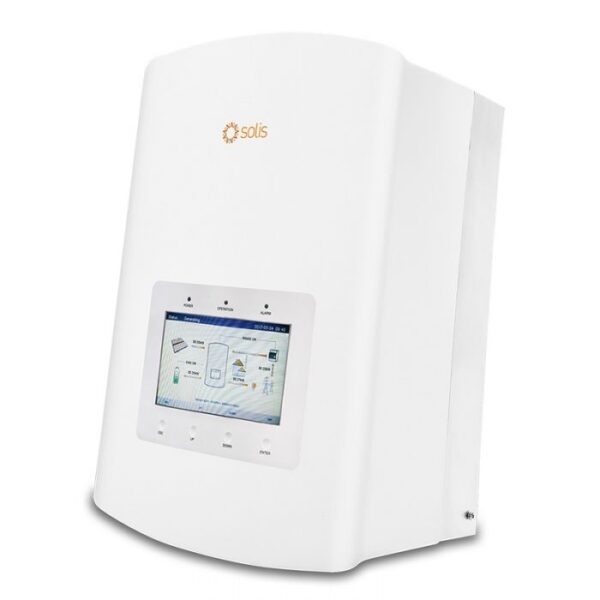

Solis 6.0kW Single Phase Hybrid On-grid/Off-grid 5G Inverter with DC Switch

£1,270.71
By Ginlong

Delivery available

Elevate Your Power Resilience with Solis 6.0kW Single Phase Hybrid On-grid/Off-grid 5G Inverter

Unleash the potential of your solar energy system with the Solis 6.0kW Single Phase Hybrid 5G Inverter, ensuring power for critical loads during load shedding and optimizing energy savings during peak demands. Here's why it's the ideal solution you've always wanted:

  • Fanless design IP65
  • High charge and discharge efficiency
  • Multiple work modes resulting in max self-consumption, increase benefit
  • Higher charge-discharge efficiency, improving economic benefits
  • Intelligent BMS function
  • 24-hour real-time intelligent energy management
  • Remotely control & upgrade

Note: This product is not recommended for use with Lead-acid batteries and, although supported, will not be covered under the European warranty. The Solis inverter cannot accurately monitor the state of charge for lead-acid batteries.

Features:

  • The Solis S5-EH1P6K-L 6.0kW Single Phase Hybrid On-grid/Off-grid 5G Inverter is meticulously designed for residential PV energy storage systems. With 5kW backup power supporting critical loads, it proves ideal for both indoor and outdoor applications. Cooled by natural convection, this inverter is remarkably quiet, easy to install, and ensures reliability and durability. Enjoy a backup switching time of less than 20 ms, integrating multiple protections and fault monitoring for enhanced safety.
  • Four Work Modes:
    • Self-use mode: Prioritizes using energy produced by the PV system for self-consumption. Excess energy charges the batteries and is then exported to the grid. Load Support Priority: PV > Battery > Grid.
    • Feed-in priority: Utilizes power generated by the PV system to supply local loads first, exporting excess power to the grid. Redundant power charges the battery. Load Support Priority: PV > Battery > Grid.
    • Backup Mode: Maintains the battery at a specific State of Charge (SOC) and only utilizes it during power outages. PV Power Using Priority: Battery > Load > Grid. Load Support Priority: PV > Grid > Battery.
    • Off-Grid Mode: For off-grid use and AC-Grid Port Disconnected use. PV Power Using Priority: Load > Battery. Load Support Priority: PV > Battery. Battery Charging Power comes from PV.
  • Fast Delivery Across the UK: Experience quick 2-3 working days delivery within the UK (longer to the Highlands, islands, and Northern Ireland). Elevate your power resilience with the Solis 6.0kW Single Phase Hybrid On-grid/Off-grid 5G Inverter.

      Detailed specifications:

      Model: S5-EH165K-L
      BATTERY
      Battery Type: Lithium-Ion / Lead-acid
      Battery Voltage: 42-58V
      Battery Capacity: 50-200Ah
      Max. Charge/Discharge Current: 100.0A
      Max. Charge/Discharge Power: 5kW
      Communication Interface: CAN
      INPUT PV
      Max. Input Power: 8000W
      Max. Input Voltage: 600V
      Start-up Input Voltage: 120V
      Rated Input Voltage: 330V
      MPPT Operating Voltage Range: 90-520V
      Max. Input Current: 15A/15A
      Max. Short-circuit Current: 22.5A/22.5A
      No. of Independent MPP Trackers: 2
      AC INPUT AND OUTPUT (GRID)
      Input Voltage: 187-265V
      Max. Input Current: 34.5A / 33A
      Frequency Range: 45-55Hz
      Rated Output Power: 6000W
      Max. Output Apparent Power: 6600VA
      Rated Output Current: 27.3A / 26.1A
      Max. Output Current: 30A
      Rated Grid Voltage: 220-230VAC
      Rated Grid Frequency: 50/60Hz
      Power Factor: >0.99 ( Adjustable from 0.8 leading to 0.8 lagging )
      THDi: <2% @rated power
      OUTPUT AC (BACK-UP)
      Rated Output Power: 5000W
      Max. Output Apparent Power: 7000VA, 10sec
      Rated Output Current: 23A / 22A
      Rated Output Voltage: 220-230VAC
      Rated Output Frequency: 50/60Hz
      THDi (linear load): <2%
      Switch Time: 20ms
      EFFICIENCY
      Max. Efficiency: >97.1%
      Operating Temperature: -25 ~ +60°C
      Protection Degree: IP65
      Size: 333 x 249 x 505mm
      Net Weight: 18.3kg

      In the Box:

      • 1 X Solis S5-EH1P6K-L 6.0kW Hybrid On-grid/Off-grid 5G Inverter,
      • 1 X Solis S5-EH1P6K-L 6.0kW Hybrid On-grid/Off-grid 5G Inverterr User's Manual.
