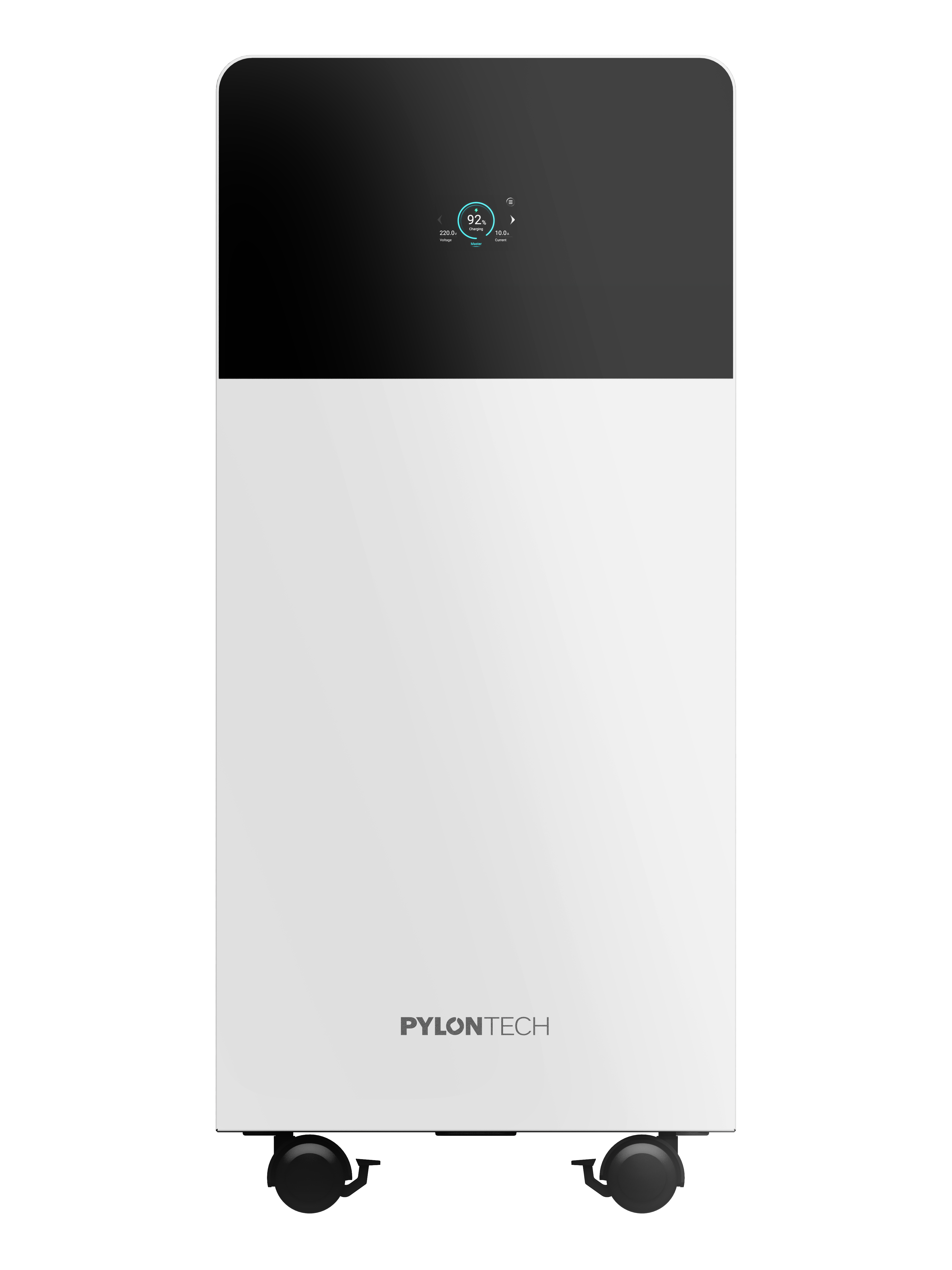

Pylontech Fidus Plus 16kWh LiFePO4 Battery, IP65 Self-Heating
- 16.076kWh nominal and usable battery capacity for larger 48V solar, backup and off-grid systems.
- Self-heating function supports charging in low ambient temperatures, with heating active between -20°C and 0°C.
- IP65 enclosure, C5-M anti-corrosion rating and optional aerosol fire-extinguishing module.
High-capacity 48V battery storage for demanding installations
The Pylontech Fidus Plus 16kWh LiFePO4 battery is a high-capacity, low-voltage energy-storage unit for compatible hybrid solar, backup-power and off-grid systems. The Fidus Plus range is designed for wall-mounted or floor-standing installation and provides a compact route to substantial usable storage capacity from one battery unit.
This self-heating Pro version is intended for environments that can experience cold conditions. Its battery heating activates between -20°C and 0°C to allow charging above 0°C, while the BMS limits charge and discharge current in extreme temperatures.
Key features
- 16.076kWh nominal capacity and 16.076kWh usable capacity, with support for 100% depth of discharge.
- 188A maximum continuous charge current and 200A maximum continuous discharge current.
- 300A peak charge/discharge current for 15 seconds.
- CAN and RS485 communications for compatible inverter and energy-management systems.
- Display screen, Bluetooth and Wi-Fi monitoring; optional aerosol fire-extinguishing module.
Where to use the Pylontech Fidus Plus 16kWh battery
Use the Pylontech Fidus Plus 16kWh battery in compatible 48V systems requiring significant stored energy in a single enclosure. Typical applications include commercial premises, workshops, agricultural sites, remote properties, larger residential backup systems and professionally designed off-grid installations.
For higher-capacity systems, up to 20 batteries can be configured in one battery group, with up to six strings. Multi-group parallel installations require the Pylontech LV-HUB-V2, which acts as the master unit. Confirm inverter compatibility, installation method, protection equipment and communications before ordering.
This battery requires professional system design and commissioning; it is not a plug-and-play product. UK expert support is available, and Energian can help arrange installation through trusted partners where required.
Technical specifications
| Model | FB-L-16-Pro |
| Battery chemistry | LiFePO4 |
| Nominal voltage | 51.2VDC |
| Nominal capacity | 16,076Wh |
| Usable capacity | 16,076Wh* |
| Depth of discharge | 100%* |
| Dimensions (W × D × H) | 435 × 240 × 900mm |
| Weight | 130kg |
| Discharge voltage | 40–56.8VDC |
| Charge voltage | 56–56.8VDC |
| Maximum continuous charge/discharge current | 188A / 200A |
| Peak charge/discharge current | 300A at 15 seconds |
| Communication | CAN, RS485 |
| Maximum quantity in one battery group | 20 batteries** |
| Maximum strings | 6** |
| Working temperature, charging | 0°C to +55°C*** |
| Working temperature, discharging | -20°C to +55°C*** |
| Storage temperature | -20°C to +60°C |
| Cooling type | Natural |
| Protective class | Class I |
| IP rating of enclosure | IP65 |
| Anti-corrosion classification | C5-M |
| Humidity | 5–95% RH, non-condensing |
| Maximum altitude | ≤4,000m |
| Certifications | IEC62619, IEC63056, UN38.3, EMC/CE |
| Design life at 25°C / 77°F | 15 years |
| Cycle life at 25°C / 77°F | 8,000 cycles**** |
| Interaction | Display screen, Bluetooth and Wi-Fi |
| Fire extinguishing | Aerosol, optional |
*The battery supports 100% depth of discharge. Rated capacity is stated at 25°C and 0.2C discharge. The default lower state-of-charge limit is 5% and is adjustable.
**For multi-group installations, an LV-HUB-V2 is required for parallel connection and acts as the master unit. Each group supports a maximum of 19 batteries.
***The BMS limits charge/discharge current in extreme temperatures. Battery heating activates from -20°C to 0°C, allowing charging above 0°C.
****Cycle-life data is based on 25°C, a 0.2C charge/discharge rate and a 5%–95% state-of-charge range.
Documents available for download
Shipping and UK expert support
Shipping is available to the UK, Ireland, Africa, the Caribbean and worldwide. If a shipping rate is not shown at checkout, contact us on +44 2080 640335 or info@energian.co.uk for a quote.
UK expert support is available for product questions and system-design support. Contact Energian by phone, email or live chat, or visit our office for an in-person consultation.
