Pylontech BMS for PowerCube H2 Battery System
- Manage and monitor a compatible PowerCube H2 high-voltage battery string through a dedicated Pylontech BMS controller.
- RS485 and CAN communication for integration with an approved inverter or power conversion system.
- Rack-mounted controller with a 200–1000V DC operating range and 100A maximum charge/discharge rating, subject to the battery system’s lower limits.
Pylontech PowerCube H2 battery management

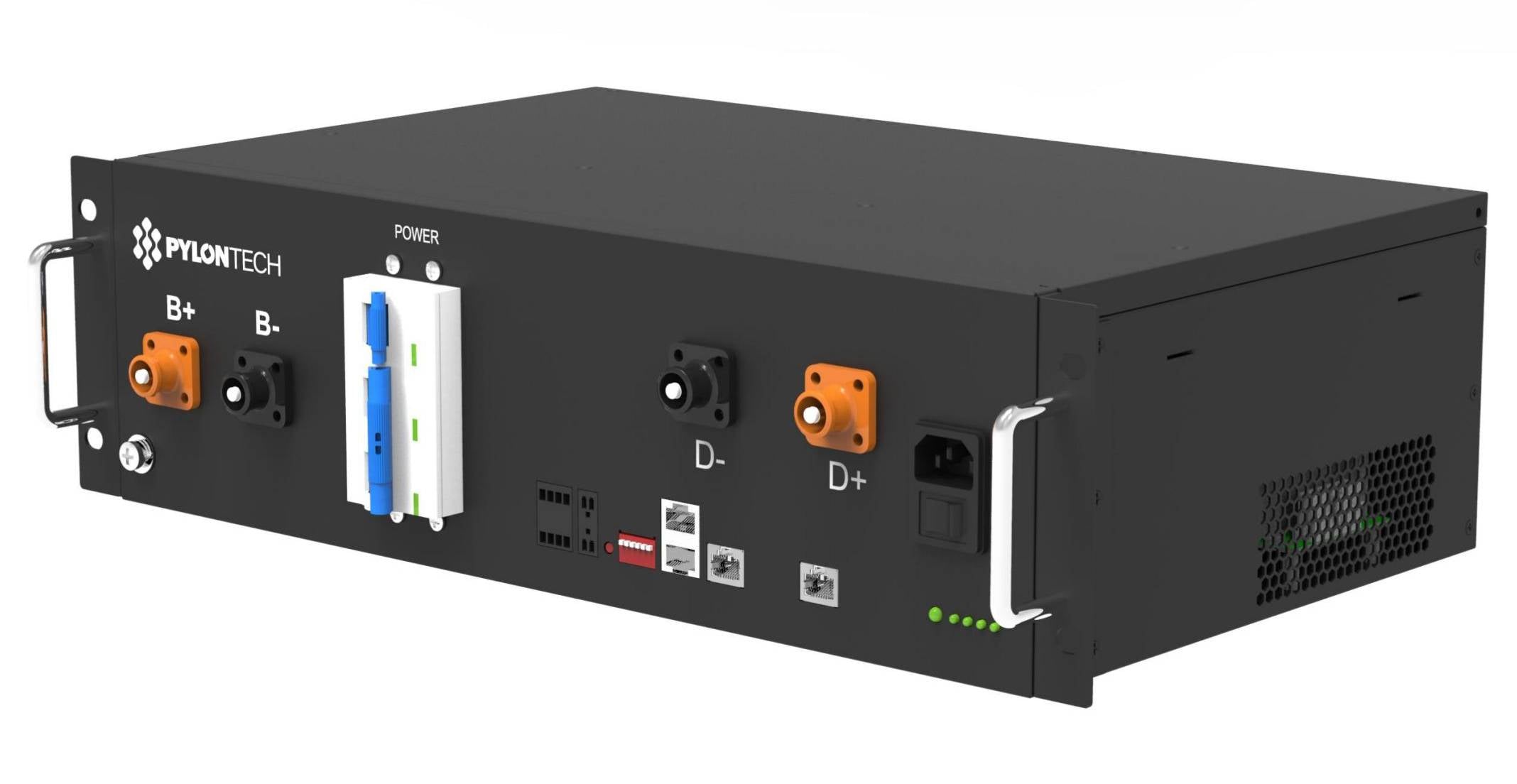

The Pylontech BMS for PowerCube H2 Battery System provides the controller required to manage a compatible high-voltage battery string. It forms part of the PowerCube battery-management architecture, coordinating battery operation and communication with the connected inverter. This listing is for the BMS controller, not a complete battery rack; battery modules, rack, cables and other system equipment must be specified separately.
Key features
- Designed for the Pylontech PowerCube H1/H2 battery family, with the correct controller revision and system configuration.
- 200–1000V DC controller working and system operating voltage range.
- 100A maximum controller charge and discharge ratings; actual permitted current is governed by the battery modules, BMS commands and inverter.
- RS485/CAN communication and 8W specified self-consumption.
- 442 × 390 × 132mm rack-mounted format with IP20 protection.
Where to use
Use as part of an approved PowerCube H2 installation serving commercial premises, warehouses, workshops or other sites requiring high-voltage battery storage. It can also be specified as a replacement controller where Pylontech confirms compatibility with the existing battery modules, firmware and inverter.
This controller is not a universal BMS for generic 48V batteries and is not a standalone charger or inverter. Check the exact part number, controller revision, inverter compatibility, communication cables and permitted module count before ordering. Newer controller versions must not be assumed interchangeable with older systems.
Installation and commissioning require a qualified installer experienced in high-voltage battery systems. The IP20 equipment requires a suitable dry, protected installation location. Contact our UK expert support team for system checks or assistance through trusted installation partners.
Technical specifications
| Controller specification | Details |
|---|---|
| Manufacturer | Pylontech |
| Product type | Battery management system / battery-string controller |
| Controller model in controller specification document | SC1000-100S |
| Controller name in attached PowerCube H2 system datasheet | SC1000-100 |
| Related battery systems | PowerCube H1 / H2 |
| Controller working voltage | 200–1000V DC |
| System operation voltage | 200–1000V DC |
| Maximum controller charge current | 100A; battery-string limits apply |
| Discharge voltage | 200–1000V DC |
| Maximum controller discharge current | 100A; battery-string limits apply |
| Self-consumption power | 8W |
| Dimensions, width × depth × height | 442 × 390 × 132mm |
| Communication | RS485 / CAN |
| Protection class | IP20 |
| Controller weight | 8.2kg |
| Operating life stated in controller document | 15 years; not a warranty term |
| Controller operating temperature | -20°C to +65°C; battery-system temperature limits still apply |
| Controller storage temperature | -40°C to +80°C |
| Product certification entries in controller document | TÜV, CE |
PowerCube H2 system reference specifications
The following figures describe the battery system in the attached datasheet, not the BMS sold alone. The full reference rack contains 12 H48074 modules. The symbol “n” means the number of modules in the series string, from 5 to 12 for this documented configuration.
| Battery-system specification | Details |
|---|---|
| Product type | PowerCube-H2, 576V / 74Ah reference configuration |
| Cell technology | Lithium-ion LFP, lithium iron phosphate |
| Battery-system capacity | 42.624kWh with 12 modules |
| Battery-system voltage | 576V DC with 12 modules |
| Battery-system amp-hour capacity | 74Ah |
| Battery module | H48074 |
| Module quantity in reference configuration | 12 |
| Module capacity | 3.552kWh |
| Module voltage | 48V DC |
| Module amp-hour capacity | 74Ah |
| Documented module quantity per rack | 5–12; actual permitted quantity must also match the controller revision and inverter |
| Charge upper-voltage limit | n × 54V DC; 648V DC for 12 modules |
| Standard operating current | 14.8A; specified for capacity measurement |
| Normal operating current | 37A; operating current communicated by the BMS |
| Maximum operating current | 74A peak for 15 seconds; not a continuous rating |
| Discharge lower-voltage limit | n × 43.5V DC; 522V DC for 12 modules |
| Efficiency | 95%, as stated in the system datasheet |
| Depth of discharge | 90% |
| System dimensions, width × depth × height | 600 × 505 × 2130mm for the reference rack |
| System communication | RS485 / CAN |
| System protection class | IP20 |
| System weight | (n × 32) + 77kg; 461kg for 12 modules |
| Operating life stated in system datasheet | 15+ years; not a warranty term |
| Operating cycle life | 5,000 cycles; test conditions are not stated in the supplied sheet |
| System operating temperature | 0°C to +50°C |
| System storage temperature | -20°C to +60°C |
| Product certification entries | IEC 62619, CE |
| Transport certification entry | UN38.3 |
| Battery-controller dimensions, width × depth × height | 442 × 390 × 132mm |
| Battery-module dimensions, width × depth × height | 442 × 390 × 132mm |
Shipping and UK expert support
Shipping is available to the UK, Ireland, Africa, the Caribbean and worldwide. If a shipping rate is not shown at checkout, contact us on +44 2080640335 or info@energian.co.uk for a quote.
UK expert support is available for compatibility checks, product questions and support requests. Contact us by phone, email or live chat, or visit our office for an in-person consultation. Where system design or installation is required, we can suggest trusted installation partners.
