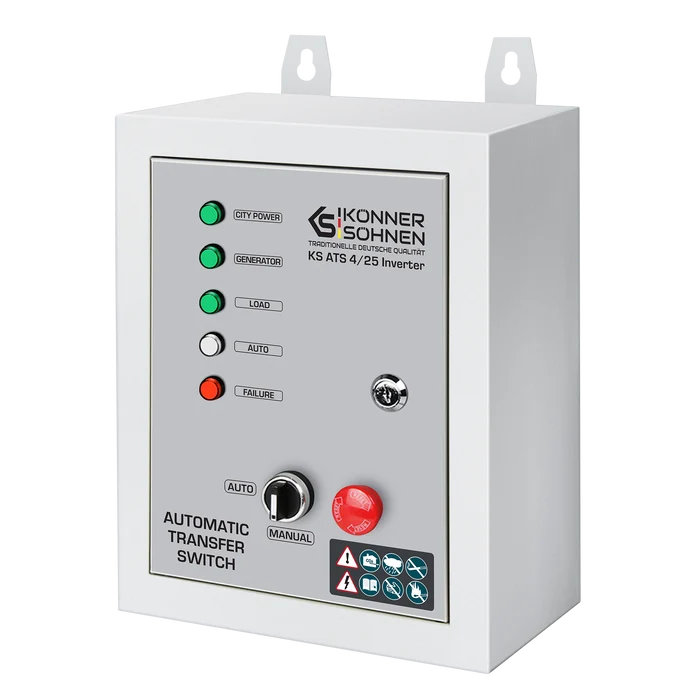

Könner & Söhnen Automatic Transfer Switch KS ATS 4/25 Inverter
- Automatically starts a compatible generator and transfers the load when the mains supply fails.
- Purpose-built for the Könner & Söhnen KS 5500iES ATSR, KS 5500iEG inverter generators with its 7-pin ATS connector.
- Provides automatic or manual operation, battery charging and an emergency generator-stop button.
Automatic backup power for compatible inverter generators
The Könner & Söhnen KS ATS 4/25 Inverter is an automatic transfer switch for creating an automatic standby-power arrangement with the KS 5500iES ATSR inverter generator. It monitors the mains supply, starts the generator after a power failure and transfers the connected load once generator power is available.
When mains power is restored, the unit transfers the load back and stops the generator automatically. A built-in PLC allows the generator start delay and warm-up time before load connection to be programmed.
Key features
- Matched compatibility: designed for the KS 5500iES ATSR inverter generator with an integrated 7-pin ATS connector.
- Automatic mains-failure response: starts the generator and transfers the load during a mains outage; returns the load when mains power is restored.
- Manual or automatic operation: select the operating mode to suit commissioning, testing or normal standby operation.
- Generator protection functions: emergency-stop button, error indication and up to five automatic start attempts if the first start is unsuccessful.
- Battery support: built-in 12V battery charging supply with a maximum charging current of 2A.
Where to use
Use this Könner & Söhnen automatic transfer switch with a compatible KS 5500iES ATSR generator for essential single-phase loads in homes, small offices, workshops, telecoms equipment or remote sites. The total connected load must remain within the ATS and generator ratings.
The KS ATS 4/25 Inverter can be connected to single-phase or three-phase mains networks, but the connected generator determines the available generator supply. The KS 5500iES ATSR is a single-phase generator; this ATS does not make it a three-phase generator.
This is not a plug-and-play building connection. Mains connection, earthing, protective devices, cable sizing and commissioning must be completed by a qualified electrician. Energian can help arrange installation through trusted UK partners.
Technical specifications
| Model | KS ATS 4/25 Inverter |
| Compatible generator | Könner & Söhnen KS 5500iES ATSR with integrated 7-pin ATS connector |
| Operating voltage | 230V / 400V |
| Frequency | 50Hz |
| Power at 230V | 5.75kW (11.5kW) |
| Maximum current at 230V | 25A (50A) |
| Power at 400V | 13kW |
| Maximum current at 400V | 25A |
| Power consumption | 0.36W in standby mode; 1.2W in operating mode |
| Working environment | -10°C to +55°C; humidity ≤60% |
| Storage environment | -10°C to +70°C; humidity ≤60% |
| IP protection class | IP41 |
| Insulation class | AC 1.0kV / 1 min / 1mA |
| Maximum battery charging current | 2A from built-in 12V power supply |
| Control-cable length | 5m |
| Net dimensions (L × W × H) | 320 × 250 × 140mm |
| Gross dimensions (L × W × H) | 405 × 325 × 200mm |
| Net weight | 4.9kg |
