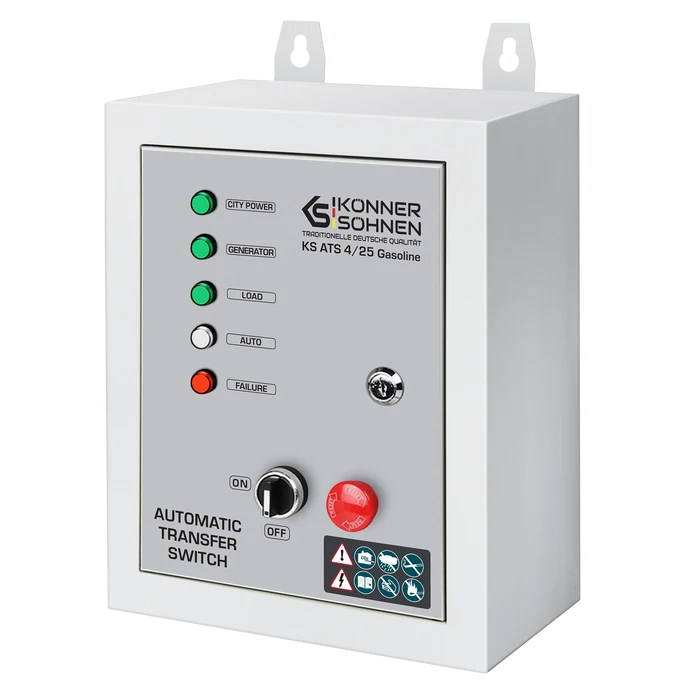

Könner & Söhnen Automatic Transfer Switch KS ATS 4/25 Gasoline
- Starts a compatible petrol inverter generator and transfers essential loads automatically when the mains supply fails.
- Suitable for compatible Könner & Söhnen KS KS 4000iE S, KS 4100iE, KS 6000iE, 8100iE ATSR inverter generators with an integrated 8-pin ATS connector.
- Provides automatic and manual control, programmable starting functions, battery charging and emergency generator stop.
Automatic standby power for compatible petrol generators
The Könner & Söhnen KS ATS 4/25 Gasoline is an automatic transfer switch for creating a mains-failure backup-power system with compatible Könner & Söhnen petrol inverter generators. It starts the generator and changes the connected load to generator power when the mains supply is interrupted.
When the mains supply returns, the ATS transfers the load back and stops the generator. Its programmable logic controller allows adjustment of the engine-start delay, starter operating time and engine warm-up time before the load is connected.
Key features
- Compatible generator connection: for Könner & Söhnen petrol inverter generators equipped with an 8-pin ATS input.
- Automatic load transfer: starts the generator after mains loss, transfers the load, then returns it to mains power after restoration.
- Automatic or manual operation: select the appropriate mode for normal standby use, testing and commissioning.
- Programmable control: PLC control for start delay, starter-operation time, warm-up time and error signalling.
- Generator support: built-in 12V battery charging supply, status LEDs, supplied 5m control cable and emergency-stop button.
Where to use
Use the KS ATS 4/25 Gasoline with compatible Könner & Söhnen generators for essential circuits in homes, small offices, workshops, communications equipment and remote sites. Typical backed-up loads include lighting, refrigeration, security systems and selected sockets.
Compatible models stated by the manufacturer include the KS 4000iE S, KS 4100iE, KS 6000iE S and KS 8100iE ATSR, provided the generator has the required integrated 8-pin ATS connector.
This system requires professional installation. A qualified electrician or an Energian trusted installation partner should assess the generator, cable routes, earthing, protective devices, essential-load distribution board and local electrical requirements before commissioning.
Technical specifications
| Model | KS ATS 4/25 Gasoline |
| Compatible ATS connector | 8-pin generator ATS connector |
| Operating voltage | 230V / 400V |
| Power consumption | 0.36W in standby mode; 1.2W in operating mode |
| Power at 230V | 5.75 (11.5)kW |
| Maximum current at 230V | 25 (50)A |
| Power at 400V | 13kW |
| Maximum current at 400V | 25A |
| Working environment | -10°C to +55°C; humidity ≤60% |
| Storage environment | -10°C to +70°C; humidity ≤60% |
| IP protection class | IP41 |
| Insulation class | AC 1.0kV / 1 min / 1mA |
| Maximum battery charging current | 2A from built-in 12V power supply |
| Control cable length | 5m |
| Net dimensions (L × W × H) | 250 × 140 × 320mm |
| Gross dimensions (L × W × H) | 325 × 200 × 405mm |
| Net weight | 6kg |
| Gross weight | 6.5kg |
| SKU | KS ATS 4/25 Gasoline |
| Barcode | 4260405364787 |
