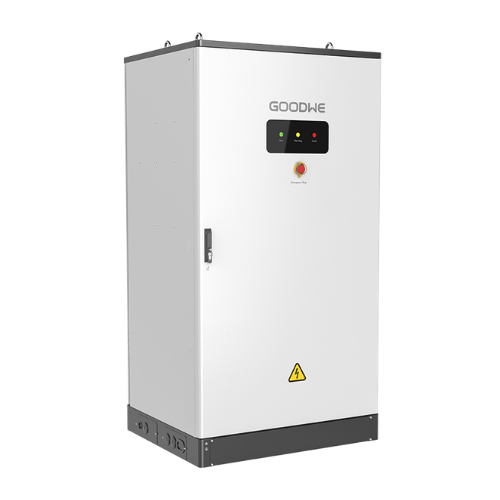

GoodWe 112.6 kWh Battery Cabinet
-
110 kWh usable LFP battery storage for commercial and industrial energy systems.
-
Supports solar self-consumption, peak shaving, load shifting and backup-power system designs.
-
Parallel connection of up to four cabinets enables storage capacity scaling to 450 kWh.
Commercial battery storage with practical scalability
The GoodWe 112.6 kWh Battery Cabinet is a high-voltage commercial and industrial battery system for sites requiring substantial on-site energy storage. Built around LFP (LiFePO4) battery technology, it provides 112.6 kWh nominal energy and 110 kWh usable energy in a weather-protected IP55 cabinet.
It is intended for use with compatible GoodWe ET hybrid inverters and a GoodWe Static Transfer Switch (STS) box as part of a professionally designed energy storage system. Contact Energian for UK expert support and a complete, compatible system proposal. [web:2][file:1]
Key features
-
Commercial-scale capacity: 112.6 kWh nominal and 110 kWh usable energy from 11 battery packs.
-
High power capability: up to 101.3 kW charge power and 123.9 kW discharge power.
-
Expandable design: connect up to four cabinets in parallel, for up to 450 kWh system capacity.
-
Outdoor-ready cabinet: IP55 enclosure, C4 anti-corrosion classification and air-conditioner cooling.
-
Integrated safety provisions: aerosol fire-safety equipment at pack and cabinet level, plus pack-level humidity monitoring and automatic dehumidification.
Where to use
Suitable for small-to-medium commercial and industrial sites with solar PV, variable loads or resilience requirements. Typical applications include warehouses, workshops, agricultural premises, logistics facilities, small manufacturing sites and commercial buildings.
A GoodWe 112.6 kWh Battery Cabinet can be specified for solar energy shifting, reducing peak grid demand, managing site loads and providing energy storage within a suitably designed backup-power solution. It is not an out-of-the-box domestic battery; installation and commissioning should be completed by a trusted, qualified partner. [web:2][file:1]
Technical specifications
|
Model |
GW112.6-BAT-AC-G10 |
|
Battery system |
LFP (LiFePO4) |
|
Cell capacity |
100 Ah |
|
Rated capacity |
200 Ah |
|
Pack type model |
GW10.2-PACK-ACI-G10 |
|
Pack nominal energy |
10.24 kWh |
|
Pack configuration |
2P176S |
|
Pack weight |
90 kg |
|
Number of packs |
11 |
|
Nominal energy |
112.6 kWh |
|
Usable energy |
110 kWh |
|
Nominal voltage |
563.2 V |
|
Operating voltage range |
505.12–635.36 V |
|
Charging operating temperature range |
-20°C to +55°C |
|
Discharging operating temperature range |
-20°C to +55°C |
|
Maximum charge / discharge current |
180 A / 220 A |
|
Maximum charge / discharge rate |
0.9C / 1.1C |
|
Maximum charge / discharge power |
101.3 kW / 123.9 kW |
|
Cycle life |
6,000 cycles (25°C ±2°C, 0.5C, 90% DOD, 70% EOL) |
|
Depth of discharge |
100% |
|
Round-trip efficiency |
96% (100% DOD, 0.2C, 25°C ±2°C) |
|
Storage temperature |
35°C to 45°C for 6 months; -20°C to 35°C for 1 year |
|
Relative humidity |
0–100%, non-condensing |
|
Maximum operating altitude |
4,000 m |
|
Cooling method |
Air conditioner |
|
User interface |
LED |
|
Communication |
CAN; RS485 optional |
|
Weight |
1,400 kg |
|
Dimensions (W × H × D) |
1,055 × 2,000 × 1,055 mm |
|
Ingress protection rating |
IP55 |
|
Anti-corrosion class |
C4; C5-M optional |
|
Fire-safety equipment |
Aerosol, pack and cabinet level |
|
Safety regulations |
IEC 62619, IEC 63056, IEC 60730, IEC 62477, VDE 2510, ISO 13849, IEC 62040, N140, EU 2023/1542, UN38.3 |
|
EMC |
IEC/EN 61000-6-1, IEC/EN 61000-6-2, IEC/EN 61000-6-3, IEC/EN 61000-6-4 |
