Excel Power 100A Automatic Transfer Switch (ATS) - Single Phase
A wall-mounted 100 A automatic transfer switch for single-phase standby-generator installations. It monitors the mains supply, starts a compatible generator on loss of mains and transfers the load automatically, then returns the load to mains and stops the generator after supply restoration.
Key Features
- 100 A AC-1 automatic transfer switch for residential single-phase 240 V systems
- Suitable for single-phase standby generators rated from 14 kVA to 24 kVA
- Automatic mains-loss sensing, generator start signal and load transfer

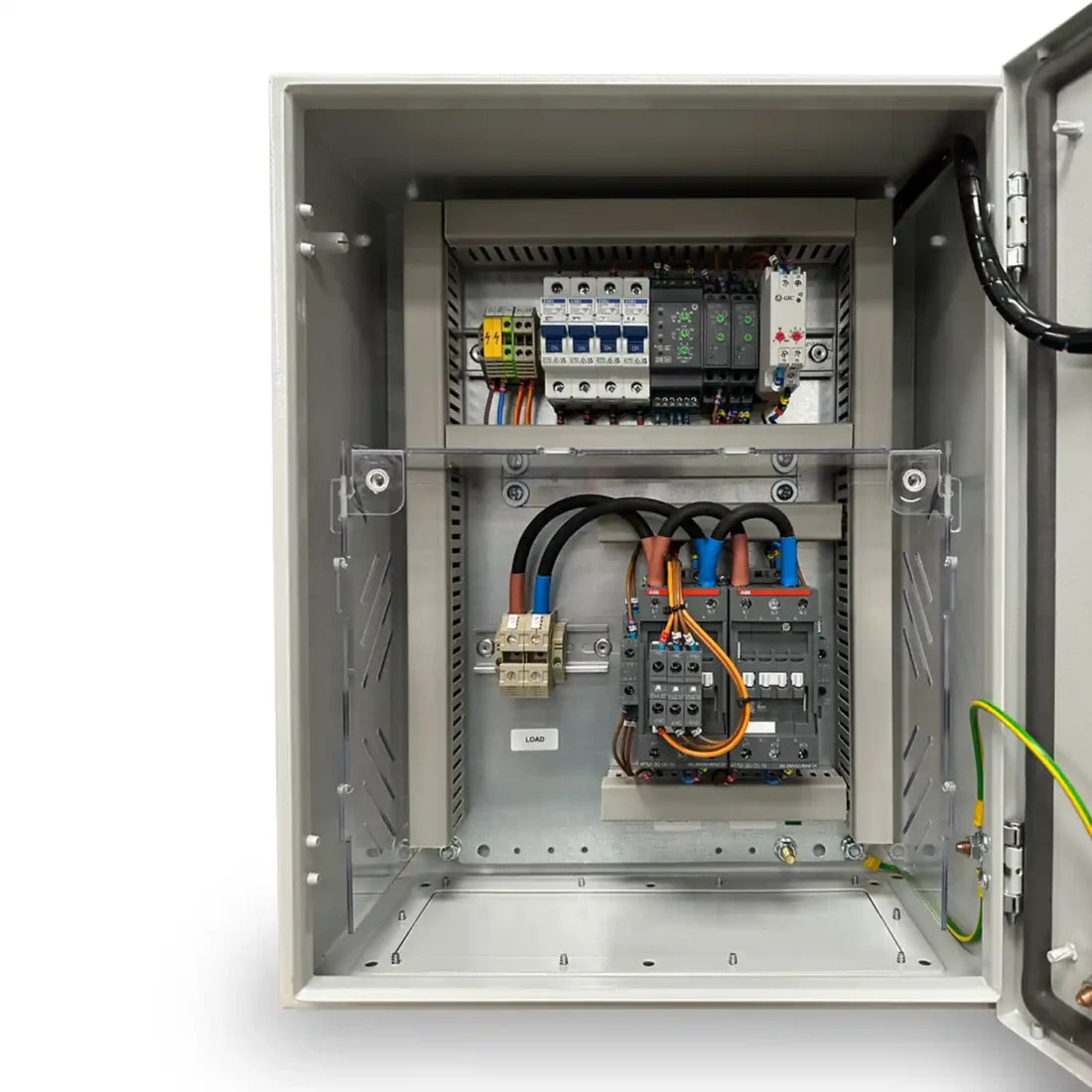

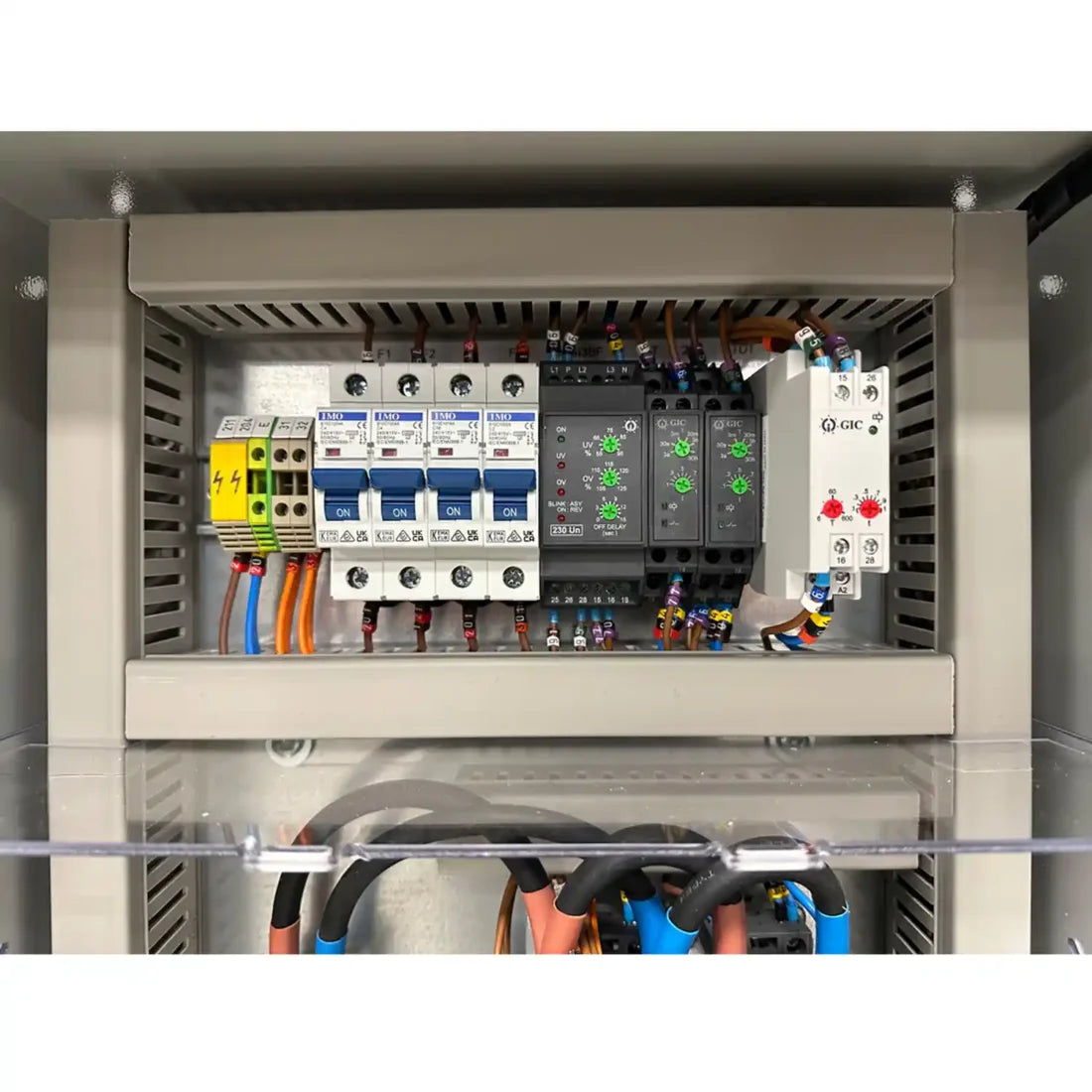

- Three-pole, mechanically and electrically interlocked ABB AF52-30-00-13 contactor arrangement
- Generator warm-up and mains-restoration timers
- Two-wire generator start and stop interface

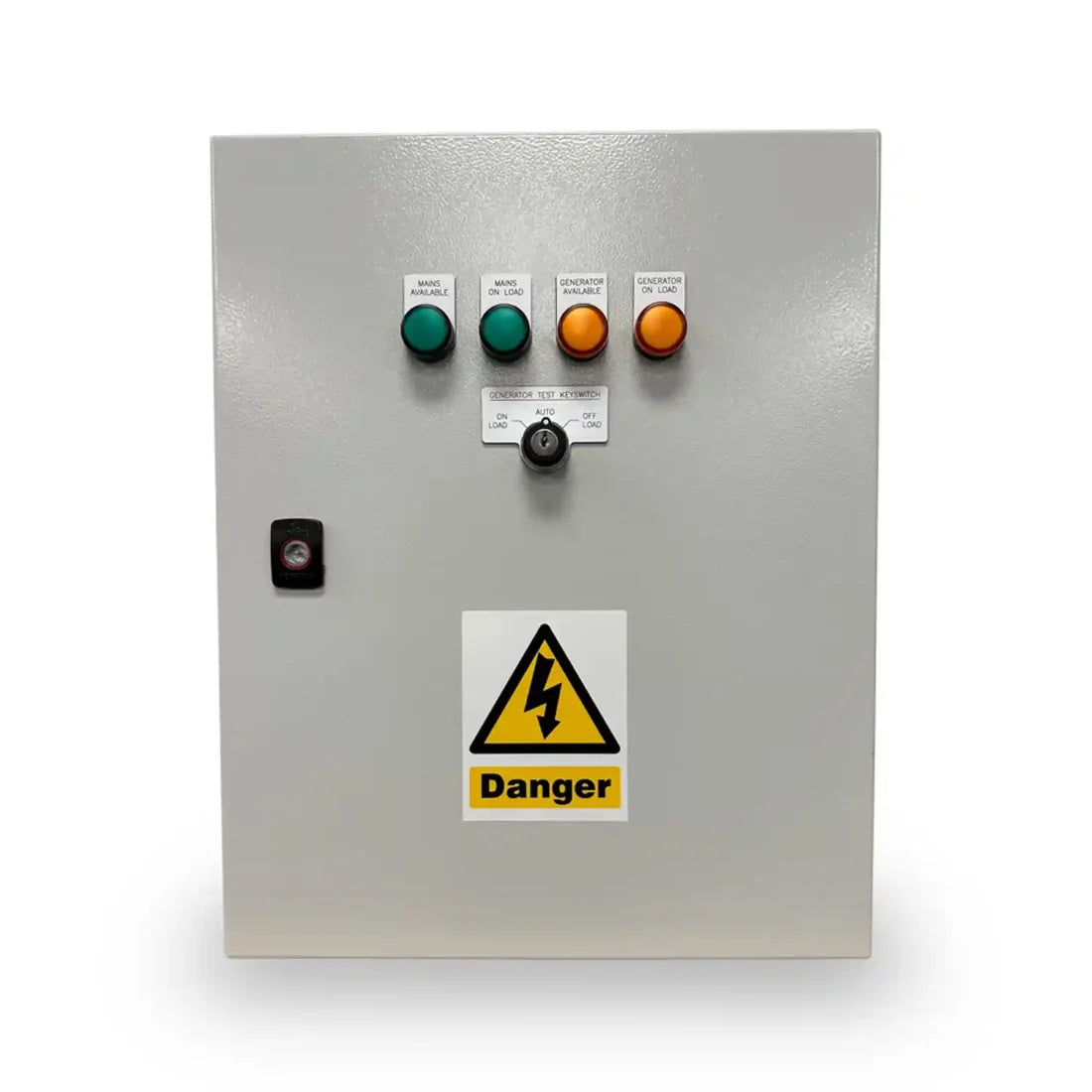

- LED indication for mains-on-load and generator-on-load status

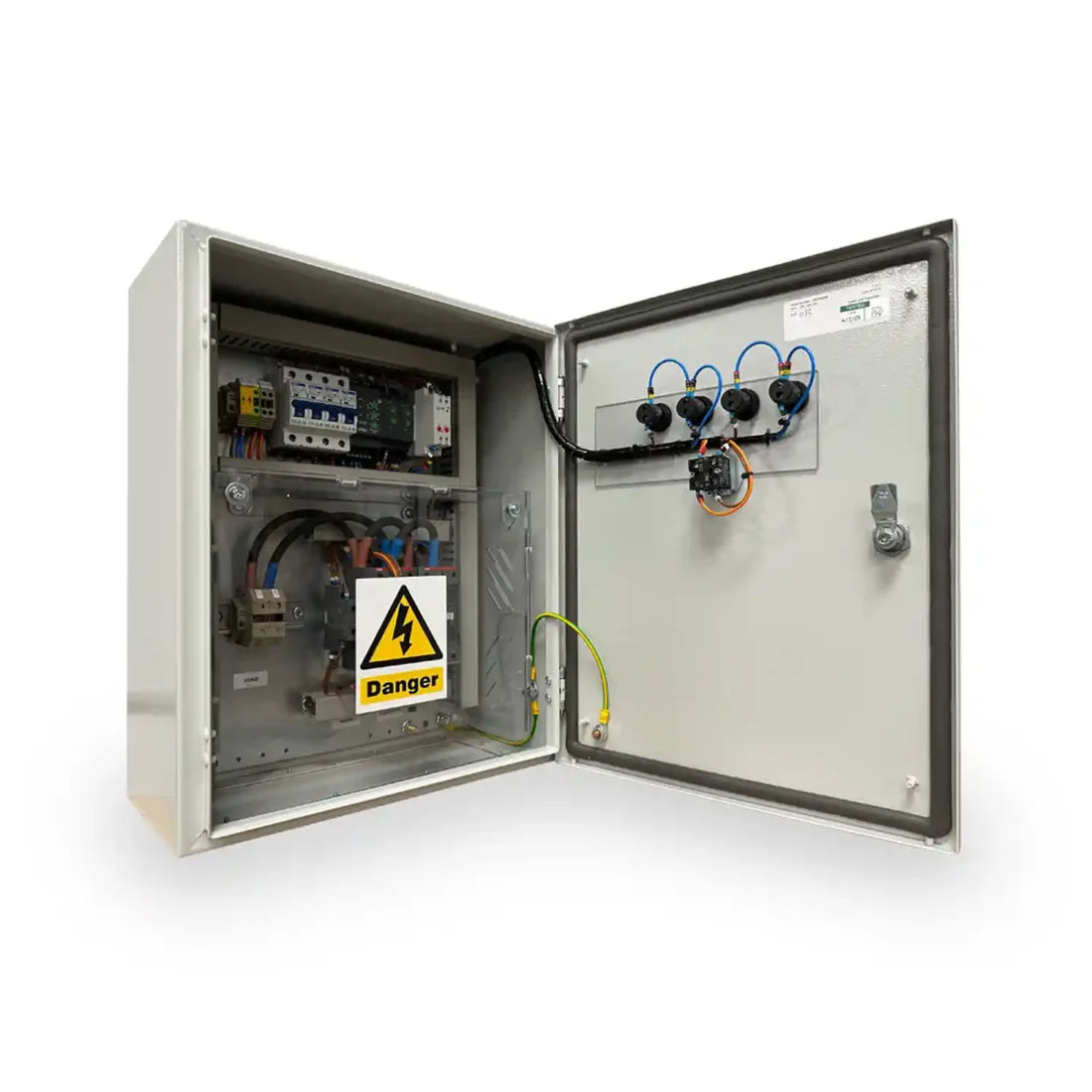

- IP65 mild-steel wall-mount enclosure with undrilled bottom gland plate
- Enclosure dimensions: 500 mm high × 400 mm wide × 210 mm deep
- Includes electrical schematics
How It Works
In normal operation, the property load is supplied by the mains. If the mains supply fails, the ATS detects the loss and sends a two-wire start signal to the generator. Once the generator is running at a suitable speed and frequency, the switch transfers the load to generator power. When mains power returns, the ATS transfers the load back, allows the generator to cool down and then stops it.
Installation
This item must be permanently installed close to the building's incoming mains supply by a competent electrician experienced in standby-power systems. Confirm generator compatibility, earthing arrangement, protective devices and local requirements before installation.
