EcoFlow STREAM Expansion Battery 5000
Add 5.02kWh of battery storage to a compatible EcoFlow STREAM 5000 or STREAM AC 5000 system. The EcoFlow STREAM Expansion Battery 5000 increases stored solar energy without adding a separate inverter or PV input stage.
- Adds 5,024Wh of LiFePO₄ battery capacity to a compatible STREAM 5000 or STREAM AC 5000 base unit.

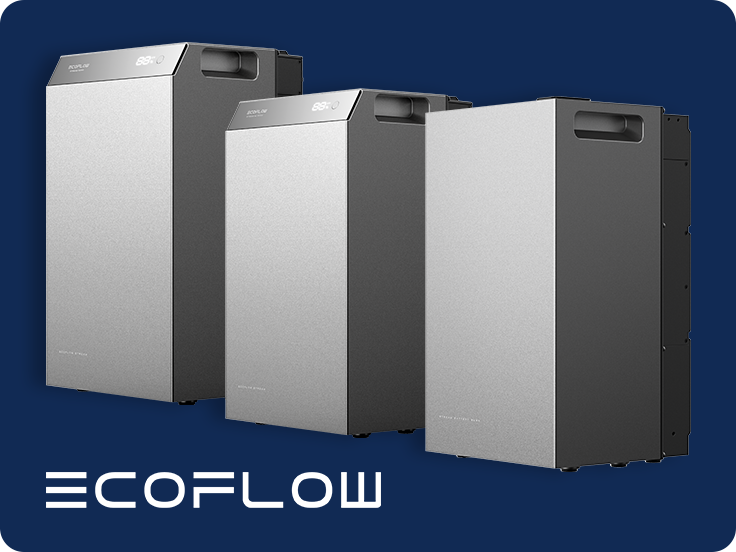

- Up to two expansion batteries can be connected per base unit, increasing total capacity to 15.07kWh.
- Rated for up to 1,800W charging and discharging power, with IP65 protection and low-temperature charging activation.
EcoFlow STREAM Expansion Battery 5000 for Additional Energy Storage

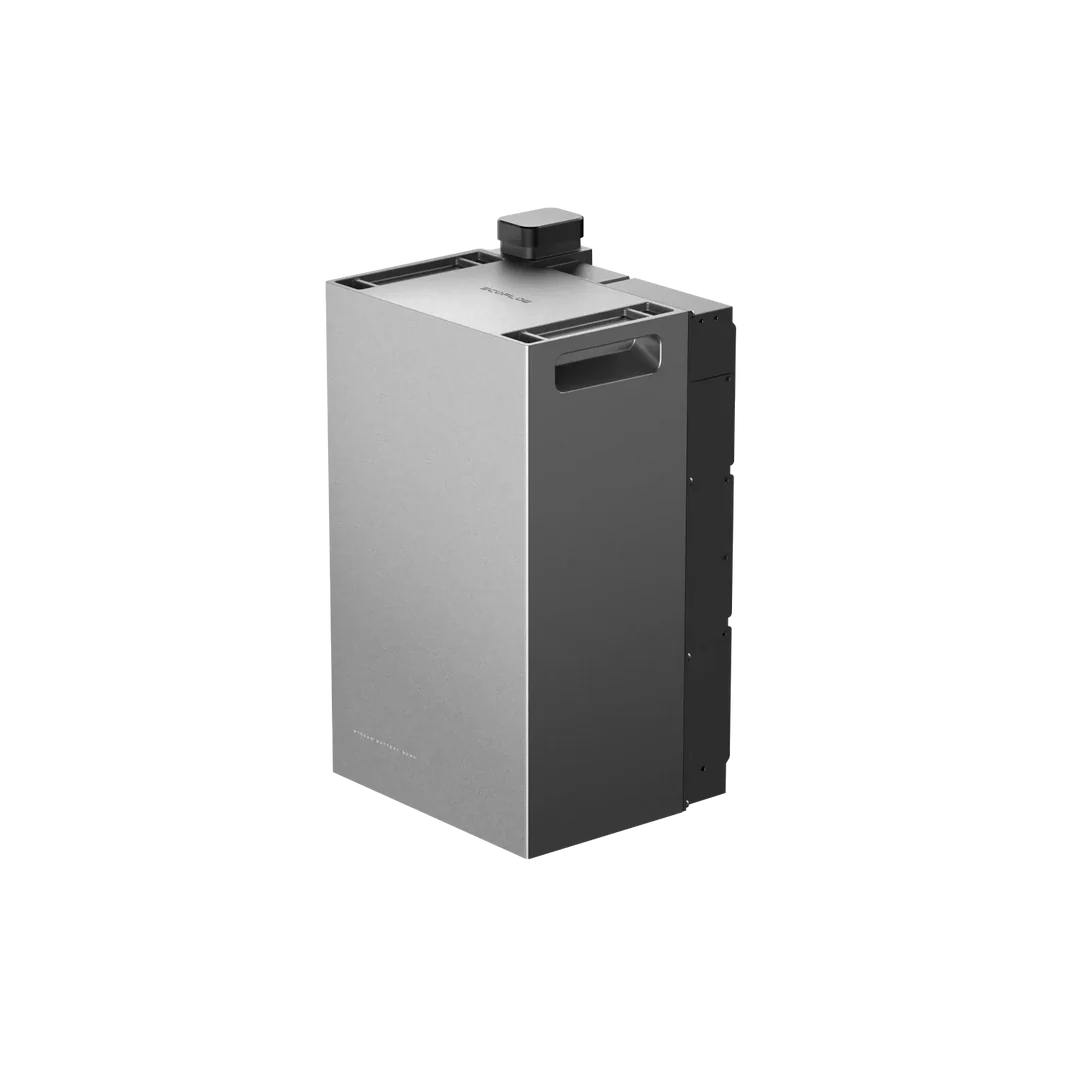

The EcoFlow STREAM Expansion Battery 5000 is a 5,024Wh LiFePO₄ battery module for increasing the storage capacity of a compatible EcoFlow STREAM 5000 or STREAM AC 5000 system. It is intended for users who need longer battery runtime, more stored solar energy or higher available system output when used with a compatible base unit.
This product is an expansion battery only. It does not include a built-in inverter, AC output or direct solar PV inputs, so it cannot operate as a standalone battery system. A compatible EcoFlow STREAM 5000 or STREAM AC 5000 base unit is required.
Key features
- 5.02kWh added capacity: adds 5,024Wh of LiFePO₄ battery storage to an existing compatible EcoFlow STREAM system.
- Up to 15.07kWh per base unit: connect up to two STREAM Expansion Battery 5000 units to one compatible STREAM 5000 or STREAM AC 5000 base unit.
- Up to 1,800W charge and discharge: supports the expansion capability of the EcoFlow STREAM platform.
- Low-temperature support: integrated battery heating enables low-temperature charging activation below 10°C.
- Indoor or outdoor installation: IP65 enclosure rating, subject to installation in line with EcoFlow requirements and suitable site conditions.
Where to use
Use the EcoFlow STREAM Expansion Battery 5000 where an existing STREAM 5000 or STREAM AC 5000 system needs more energy storage. Typical applications include homes with larger evening electricity use, home offices, workshops, small offices, outbuildings and sites with more surplus solar generation than a single base battery can store.
For example, one base unit with one expansion battery increases nominal storage from 5.024kWh to 10.04kWh. A base unit with two expansion batteries provides up to 15.07kWh nominal capacity, helping extend the duration for which suitable connected loads can be supplied.
The expansion battery must be installed with a compatible EcoFlow STREAM system. For a fixed installation, use a trusted installation partner to confirm electrical integration, mounting location, cable routing, ventilation, environmental exposure and any grid-connected requirements. Energian can provide UK expert support before purchase.
Technical specifications
| Product model | EcoFlow STREAM Expansion Battery 5000 |
| Product code | EFSTREAM-EB5000 |
| Product type | Expansion battery only |
| Compatible base units | EcoFlow STREAM 5000 and EcoFlow STREAM AC 5000 |
| Battery chemistry | LiFePO₄ |
| Battery capacity | 5,024Wh / 5.02kWh |
| Maximum charging power | 1,800W |
| Maximum discharging power | 1,800W |
| Maximum expansion batteries per base unit | 2 |
| Total capacity with one base unit and one expansion battery | 10.04kWh nominal |
| Total capacity with one base unit and two expansion batteries | 15.07kWh nominal |
| Maximum combined STREAM system capacity | Up to 90kWh when up to six STREAM 5000 and/or STREAM AC 5000 systems are combined, subject to EcoFlow system requirements |
| Cycle life | 10,000 charge cycles |
| Low-temperature charging activation | Below 10°C |
| Ingress protection rating | IP65 |
| Ambient temperature | -30°C to 60°C |
| Allowable relative humidity | 5%–95% |
| Dimensions | 295 × 489 × 287mm |
| Weight | 42.5kg |
| Warranty | 10 years |
Shipping
Available for delivery to the UK, Ireland, Africa, the Caribbean and worldwide. If the shipping rate is not shown at checkout, please contact us on +44 2080 640335 or info@energian.co.uk for a quote.
UK expert support
UK expert support is available. Contact Energian with questions or support requests by telephone, email or live chat, or visit our office for an in-person consultation. We can help confirm compatibility with your existing EcoFlow STREAM system, assess storage requirements and identify a suitable installation route.
