DMEGC 460W Infinity RT Mono Bifacial Dual Glass N-Type Black Frame Solar Panels
- 460 W N-type bifacial solar panel with a black frame for high-output residential and commercial rooftop systems.
- 23.0% module efficiency with dual 2 mm heat-strengthened glass and a practical 1,762 × 1,134 mm format.
- 1,500 V DC system rating, 5,400 Pa front test load and 30-year linear power warranty.

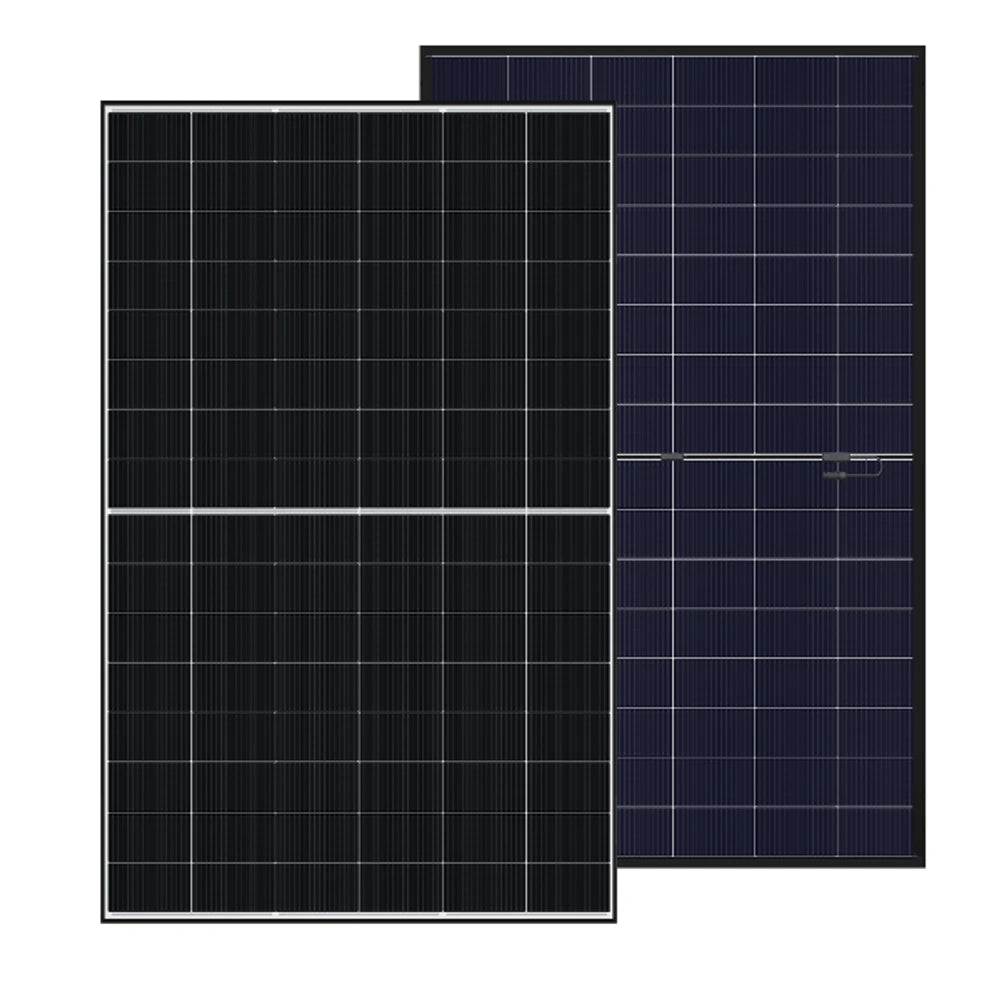

DMEGC 460W Infinity RT bifacial dual glass solar panel
The DMEGC DM460G12RT-B48HBW is a 460 W N-type monocrystalline bifacial solar panel with double-glass construction. It is designed for residential and commercial solar PV systems where a high-efficiency module, black-framed appearance and the potential benefit of rear-side generation are required.
The bifacial cell design can generate from both sides of the module where reflected light reaches the rear glass. Actual rear-side yield depends on mounting height, spacing, shading, roof surface, ground reflectivity and system design, so it should be assessed for each installation.
Key features
- 460 W rated output: Helps achieve more installed capacity with fewer modules, roof fixings and DC connections than lower-wattage panels.
- N-type bifacial technology: N-type monocrystalline module with 96 cells in a 6 × 16 configuration.
- 23.0% module efficiency: Suitable for projects where roof space is limited or higher output per panel is needed.
- Dual-glass construction: Uses 2 mm heat-strengthened glass on both sides, with an anti-reflective front coating.
- Long-term power cover: 30-year linear power warranty with stated first-year degradation of no more than 1% and annual degradation of no more than 0.4% thereafter.
Where to use
The DMEGC 460W Infinity RT bifacial dual glass solar panel is suitable for homes, commercial premises, offices, retail units, workshops, warehouses, agricultural buildings, carports and ground-mounted solar arrays. It can be particularly useful where rear-side irradiance can be captured through an elevated mounting arrangement or a reflective surface.
At 1,762 × 1,134 mm, the module is suitable for many standard roof-mounting systems, subject to the manufacturer's approved clamping zones and structural design. Check roof structure, wind loading, inverter input limits and string voltage before installation.
Energian can help with module quantities, mounting compatibility, inverter and optimiser selection, DC protection and full system design. Where a system cannot be used out of the box, installation can be arranged through trusted partners.
Technical specifications
| Manufacturer | DMEGC |
| Module model | DM460G12RT-B48HBW |
| Module type | N-type monocrystalline bifacial module with double glass |
| Cell type and layout | N-type monocrystalline, 96 cells (6 × 16) |
| Rated maximum power (Pmax) | 460 W |
| Module efficiency at STC | 23.0% |
| Power output tolerance | 0 to +3% |
| Maximum power voltage (Vmp) | 30.95 V |
| Maximum power current (Imp) | 14.87 A |
| Open-circuit voltage (Voc) | 36.32 V |
| Short-circuit current (Isc) | 15.83 A |
| STC test conditions | Irradiance 1,000 W/m², module temperature 25°C, AM 1.5 |
| Electrical measurement standard | IEC 60904-3 |
| Pmax test uncertainty | ±3% |
| Isc measurement tolerance | ±4% |
| Voc measurement tolerance | ±3% |
| Bifaciality | 80 ± 5% |
| Module dimensions | 1,762 × 1,134 × 30 mm |
| Weight | 24 kg |
| Front cover | 2 mm heat-strengthened glass with anti-reflective coating |
| Rear cover | 2 mm heat-strengthened glass |
| Frame | Black frame requested; exact frame material and finish are not stated in the supplied datasheet |
| Junction box | Three diodes, IP68 according to IEC 62790 |
| Output cables | 4 mm²; portrait: 300 mm positive / 200 mm negative; landscape: 1,100 mm positive / 1,100 mm negative; cable length can be customised |
| Connector type | PV-ZH202B or MC4-EVO 2A |
| Operating temperature | -40°C to +85°C |
| Maximum system voltage | 1,500 V DC (IEC) |
| Overcurrent protection rating | 30 A |
| Protection class | Class II |
| Temperature coefficient of Pmax | -0.29%/°C |
| Temperature coefficient of Voc | -0.25%/°C |
| Temperature coefficient of Isc | +0.048%/°C |
| Maximum test load, push/pull | Front 5,400 Pa / rear 2,400 Pa |
| Maximum design load, push/pull | Front 3,600 Pa / rear 1,600 Pa |
| Hail class | HW3; reference ice-ball diameter VKF 30 mm, ice-ball storage temperature -20°C |
| First-year degradation | ≤1% |
| Annual degradation over 30 years | ≤0.4% |
| Linear power warranty | 30 years |
| Product certifications | IEC 61215, IEC 61730, IEC TS 63209, IEC 62716, IEC 61701, IEC TS 63342 and IEC 60068 |
Documents available for download
Shipping
Available for delivery throughout the UK, Ireland, Africa, the Caribbean and worldwide. If a shipping rate is not shown at checkout, please contact us on +44 2080640335 or info@energian.co.uk for a quote.
UK expert support
UK expert support is available for panel selection, bifacial array design, inverter and optimiser compatibility, roof mounting and complete solar PV system planning. Contact Energian by phone, email or live chat, or visit our office for an in-person consultation.
