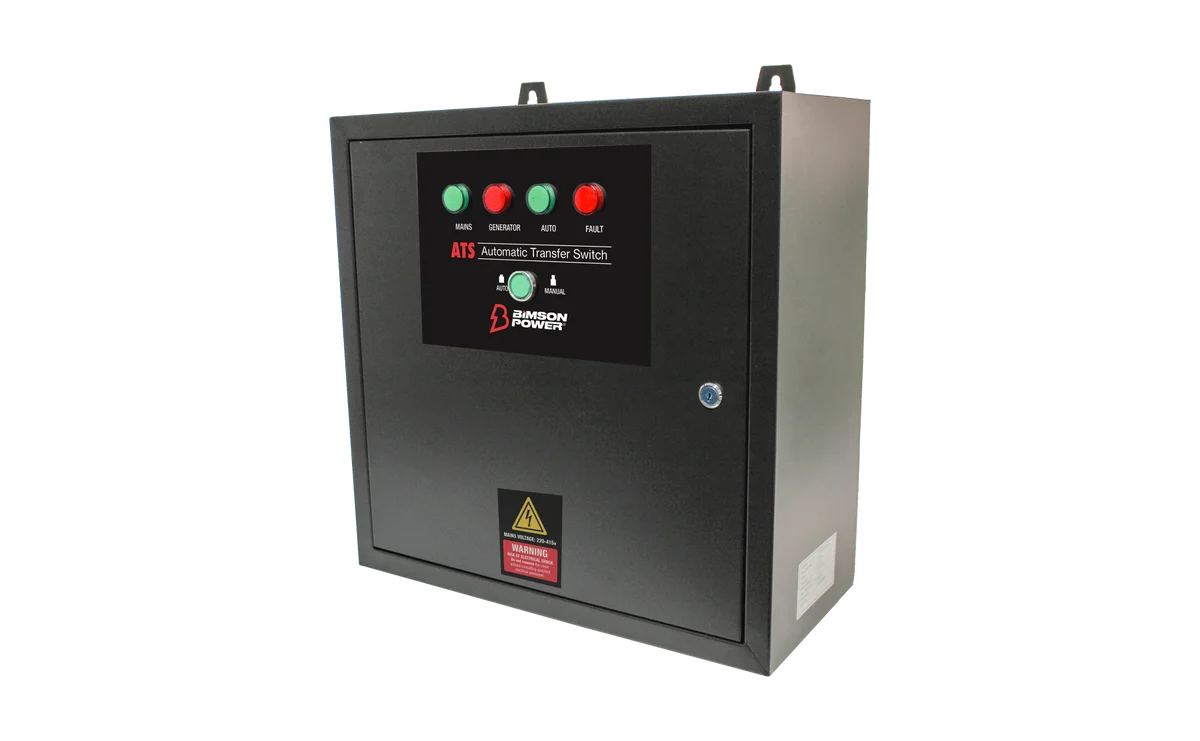

BIMSON POWER ATS – Automatic Transfer Switch for Diesel Generators
- Automatically starts a compatible diesel generator during a mains failure and transfers essential loads to backup power.
- Returns loads to mains supply when power is restored, then stops the generator automatically.
- Supports 230 V single-phase and 415 V three-phase installations, with a built-in 2 A battery charger.
Automatic backup power for compatible diesel generators
The BIMSON POWER ATS Automatic Transfer Switch for Diesel Generators provides automatic mains-to-generator changeover for compatible generators with an ATS connection. It monitors the incoming mains supply, starts the generator when supply is lost or low, and transfers the connected load once generator power is available.
When the mains supply returns, the ATS transfers the load back to mains power and stops the generator after approximately 15 seconds. Use it for backup supplies where selected circuits need to remain operational during a power cut, such as workshops, farms, small commercial sites and essential building services.
Key features
- ATS multi phase panel suits all Warrior diesel models from 4kW to 15kW in both single & three phase (MUST have ATS Input socket on generator panel)
- Automatic start and changeover: starts a compatible generator within six seconds of a mains failure or low incoming supply.
- Automatic mains restoration: transfers back to mains power on restoration and stops the generator approximately 15 seconds later.
- Single- and three-phase support: wiring diagrams are provided for 230 V single-phase and 415 V three-phase systems.
- Built-in battery charger: 2 A battery charging current helps maintain the generator starter battery while the generator is not running.
- Fault indication and manual override: red fault light, three automatic start attempts, Auto/Manual control and an internal manual lever override.
Where to use
Suitable for compatible BIMSON POWER and Warrior diesel generators with the required ATS port. It is intended for emergency standby applications where automatic generator start and controlled changeover are needed for a dedicated consumer unit, essential circuits or selected equipment.
This product must be installed and commissioned by a qualified electrician or trusted generator-installation partner. They must confirm generator compatibility, phase configuration, cable and protective-device sizing, earthing, neutral arrangement and anti-backfeed protection before use.
Technical specifications
| Model | 190102000010 |
| Product type | Automatic Transfer Switch (ATS) panel for diesel generators |
| Supported supply configurations | 230 V single-phase; 415 V three-phase |
| ATS current rating | 100 A |
| Generator start timing | Within 6 seconds of mains supply loss or low supply |
| Generator load application | After approximately 5–6 seconds of generator running in automatic mode |
| Start attempts | 3 attempts; red fault indicator illuminates if unsuccessful |
| Mains restoration / generator stop | Load transfers to mains; generator stops approximately 15 seconds later |
| Battery charger | Built-in; 2 A charging current |
| Controls | Auto/Manual button, key switch, manual handle and padlock isolation provision |
| Indicators | Mains supply, generator supply, automatic mode and red fault indication |
| ATS port configuration | 12 V power; start relay; fuel oil; flywheel-frequency sensing |
| Generator control cable | ATS input cable supplied for connection to the generator control panel |
| Diesel-generator ignition position for automatic operation | OFF |
