Automatic Transfer Kit for Ferbo Prime/Standby Generators – Up to 100A Transfer Current
- Automatic mains-failure backup solution for compatible Ferbo prime and standby generator installations.
- Combines a 100A three-phase automatic change-over panel with the DSE7320 MKII AMF generator control module.
- Monitors mains and generator supply, starts the generator automatically and transfers the connected load when generator power is ready.
Ferbo 100A automatic transfer kit
The Ferbo Automatic Transfer Kit provides the control and change-over equipment needed to create an automatic standby-power system for compatible Ferbo diesel generators. It is designed for three-phase installations with transfer currents up to 100A.
The kit pairs a 100A automatic transfer switch/change-over panel with the DSE7320 MKII Auto Mains (Utility) Failure controller. The DSE module monitors the mains supply, controls generator start and stop, and commands load transfer through the correctly wired change-over panel.
The DSE7320 MKII provides automatic mains-failure control, generator start/stop and load-transfer functionality; the 100A Target change-over panel is stated as a three-phase ATS solution for 50–60 kVA generator applications.
Key features
- Automatic mains-failure operation: detects loss or abnormal condition of the mains supply and automatically initiates the backup sequence.
- 100A three-phase change-over panel: suitable for appropriately designed three-phase generator installations up to 100A transfer current.
- DSE7320 MKII AMF control: provides mains and generator sensing, engine protection, automatic starting, stopping and load-transfer control.
- Generator and site monitoring: back-lit display, LED status indication, configurable alarms, data logging and PC configuration capability.
- Flexible system integration: suitable for diesel or gas generator applications, subject to generator controller, engine and wiring compatibility.
Where to use
Use this Ferbo automatic transfer kit for business premises, agricultural buildings, workshops, logistics facilities, remote sites and other locations where selected three-phase loads need to transfer automatically to generator power during a mains outage.
This is a professionally configured system, not a plug-and-play accessory. Installation, DSE programming and commissioning must be completed by a qualified generator-control electrician or one of Energian's trusted installation partners.
Technical specifications

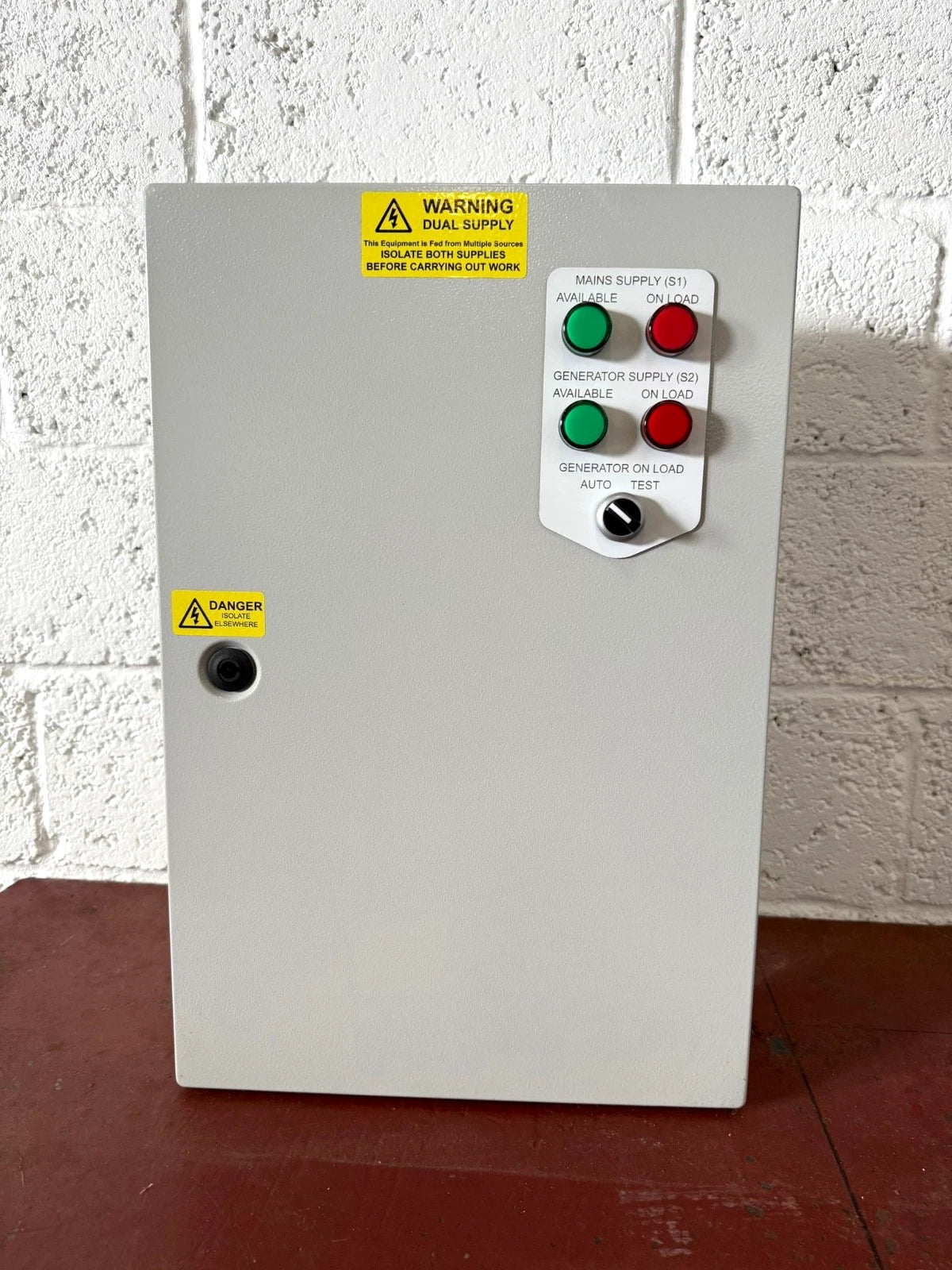

Automatic transfer switch / change-over panel
| Product type | Automatic Transfer Switch / Change-Over Panel |
| Transfer-current rating | 100A |
| System configuration | Three-phase |
| Listed circuit breaker | ABB AF52.40 |
| Stated generator suitability | 50–60 kVA generator applications |

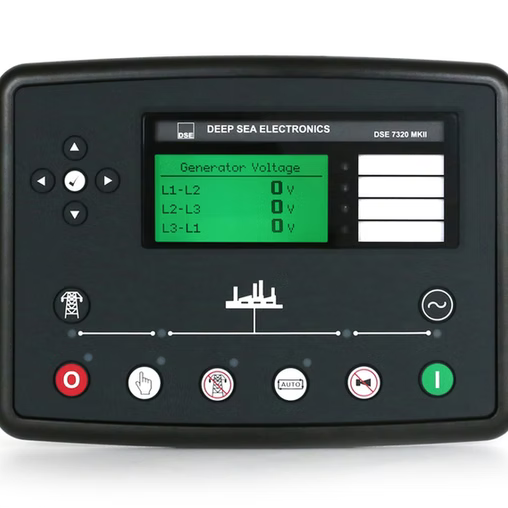

DSE7320 MKII AMF control module
| Product variant | 7320-03 – DSE7320 MKII Auto Mains (Utility) Failure Control Module |
| DC supply, continuous voltage rating | 8V to 35V DC continuous |
| Maximum operating current | 340mA at 12V; 160mA at 24V |
| Maximum standby current | 160mA at 12V; 80mA at 24V |
| Generator and mains voltage range | 15V to 415V AC phase-to-neutral; 25V to 720V AC phase-to-phase |
| Generator and mains frequency range | 3.5Hz to 75Hz |
| Magnetic pick-up voltage range | ±0.5V to 70V |
| Magnetic pick-up frequency range | 5Hz to 10kHz |
| Overall module size | 245 x 184 x 51mm |
| Panel cut-out size | 220 x 160mm |
| Maximum panel thickness | 8.0mm |
| Communications | USB, RS232, RS485, DSENet®; Modbus RTU support |
| Ingress protection | IP65 from the front when the supplied gasket is fitted into a control panel |
| Environmental testing standards | BS EN 61000-6-2; BS EN 61000-6-4; BS EN 61010; BS EN 60068-2-1; BS EN 60068-2-2; BS EN 60068-2-6; BS EN 60068-2-30; BS EN 60068-2-78; BS EN 60068-2-27; BS EN 60529 |
