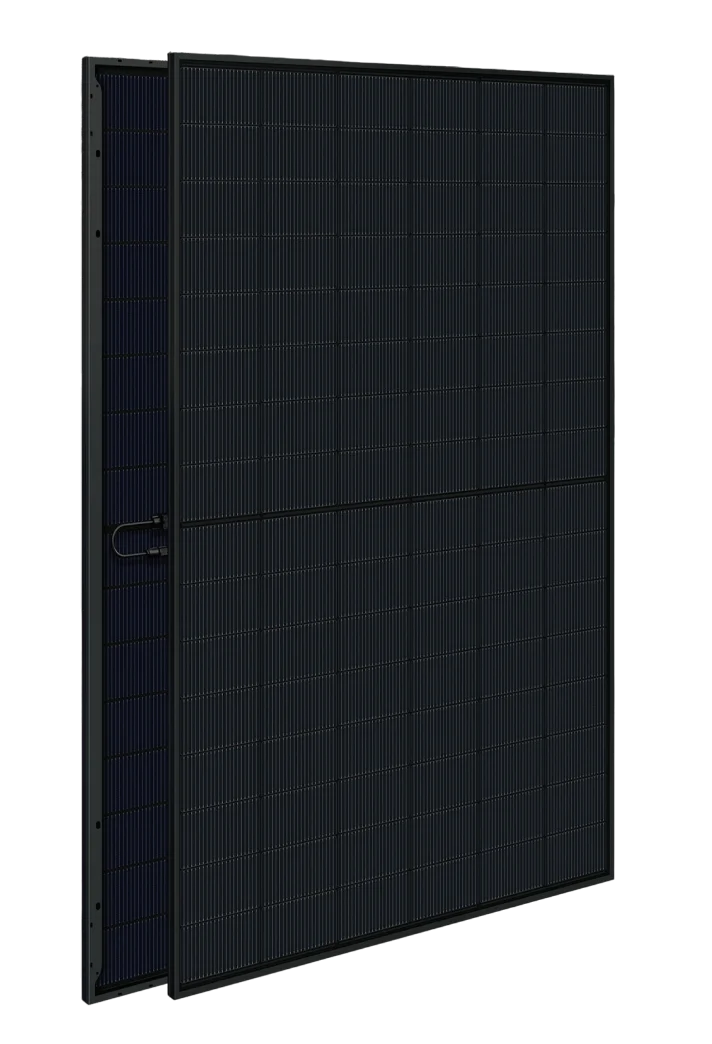

ASTRONERGY ASTRO N7s CHSM-48RN(DG)/F-BH 460W Bifacial All Black n Solar Panel

• High-efficiency 460W bifacial n-type TOPCon 4.0 module with up to 23.0% module efficiency for compact commercial and industrial arrays.
• Dual-glass construction and 6000Pa / 4000Pa test loads for robust performance on exposed roofs and ground-mount structures.
• Long-term reliability backed by 25-year product warranty and 30-year linear power warranty.

Overview

The ASTRO N7s CHSM-48RN(DG)/F-BH 460W is a bifacial, dual-glass n-type TOPCon solar panel designed for modern rooftop and ground-mounted systems where space, durability and output per square metre matter. With 460W STC output, 23.0% module efficiency and bifaciality of 80±5%, it is well suited to commercial, industrial and logistics sites looking to maximise yield on limited roof or frame area.

Key features

• 460W bifacial module with 23.0% maximum efficiency and positive power tolerance of 0~+3%.
• n-type TOPCon 4.0 cells with ZBB (zero-busbar) design for high performance and low degradation (≤1.0% first year, ≤0.4% per year years 2–30).
• Glass-glass build (2.0mm front + 2.0mm back) with aluminium frame and IP68 junction box for harsh environments.
• Compact footprint under 2m² (1762 × 1134 × 30mm) and 24.5kg weight for easier handling and installation.
• Certified to IEC 61215 and IEC 61730, manufactured under ISO 9001, ISO 14001 and ISO 45001 quality systems.

Where to use

This ASTRO N7s 460W bifacial panel is ideal for commercial roofs, logistics hubs, agricultural buildings and industrial sites where you want high output from relatively small arrays. The bifacial design is particularly effective on light-coloured roofs, elevated frames, carports and ground-mount systems with good rear-side irradiance.

For UK and European projects, Energian can support system design and supply, with installation carried out by trusted partners experienced in dual-glass bifacial modules and C&I mounting systems. This panel integrates well with modern string inverters and mounting solutions for on-grid, hybrid and commercial self-consumption systems.

Technical specifications

Series and warranties

• Series: ASTRO N7s CHSM-48RN(DG)/F-BH, Bifacial Series
• Power range: 440–460W
• Product warranty: 25 years
• Linear power warranty: 30 years
• First year power degradation: ≤1.0%
• Year 2–30 annual power degradation: ≤0.4%

Mechanical specifications

• Outer dimensions (L × W × H): 1762 × 1134 × 30mm
• Cell type: n-type mono-crystalline
• No. of cells: 96 (6 × 16)
• Frame technology: Aluminium, black or silver anodised
• Front / back glass: 2.0 + 2.0mm
• Cable length (including connector): Landscape 1200mm; or customised length
• Cable diameter (IEC/UL): 4mm² / 12 AWG
• Maximum mechanical test load: 6000Pa (front) / 4000Pa (back)
• Connector type (IEC/UL): MC4-EVO2A (standard) / HCB40 (optional)
• Module weight: 24.5kg
• Packing unit: 36 pcs / box
• Weight of packing unit (for 40' HQ container): 927kg
• Modules per 40' HQ container: 936 pcs (subject to sales contract)

Electrical specifications (STC)

• Test conditions: Irradiance 1000W/m², cell temperature 25°C, AM = 1.5
• Rated output (Pmpp / Wp): 460
• Rated voltage (Vmpp / V): 30.60
• Rated current (Impp / A): 15.03
• Open circuit voltage (Voc / V): 36.74
• Short circuit current (Isc / A): 15.88
• Module efficiency: 23.0%

Temperature coefficients

• Temperature coefficient (Pmpp): -0.29%/°C
• Temperature coefficient (Isc): +0.043%/°C
• Temperature coefficient (Voc): -0.25%/°C

Operating parameters

• Bifaciality (Pmpp): 80±5%
• Junction box IP rating: IP68
• Max. series fuse rating: 30A
• Max. system voltage (IEC/UL): 1500VDC

Certifications and quality

• IEC 61215, IEC 61730
• ISO 9001:2015 – Quality Management System
• ISO 14001:2015 – Environment Management System
• ISO 45001 – Occupational Health and Safety
• Nord IEC/TS 62941 certification audit (factory quality for PV modules)
• Listed in 2024 Kiwa PV Module Reliability Scorecard, Tier 1 BloombergNEF, underwritten by international insurer.

Documents available for download

• ASTRO N7s CHSM-48RN(DG)/F-BH 440–460W Bifacial Series – Datasheet – Download datasheet


Shipping & support

Shipping is available to the UK, Ireland, Africa, the Caribbean and worldwide. If the shipping rate is not shown at checkout, please contact us on +44 2080640335 or info@energian.co.uk for a quote.

UK expert support is available – contact Energian with any questions or support requests via phone, email or live chat, or visit our office for an in-person consultation. For this ASTRO N7s CHSM-48RN(DG)/F-BH 460W bifacial solar panel we recommend installation by trusted specialist partners to ensure correct mounting, wiring and compliance with local electrical standards.
