All-in-One Sunsynk PowerHub Energy Storage System 122.8kWh Battery 65kW Inverter
- All-in-one three-phase commercial battery storage system with 122.8 kWh LiFePO4 battery capacity and integrated 65 kW PV inverter input capability.
- 50 kW nominal output and UPS power for solar self-consumption, peak-demand management, load shifting and critical-load support.
- IP55 floor-mounted cabinet with integrated HVAC, AC/DC coupling capability, generator input and expansion potential up to 1.28 MWh.

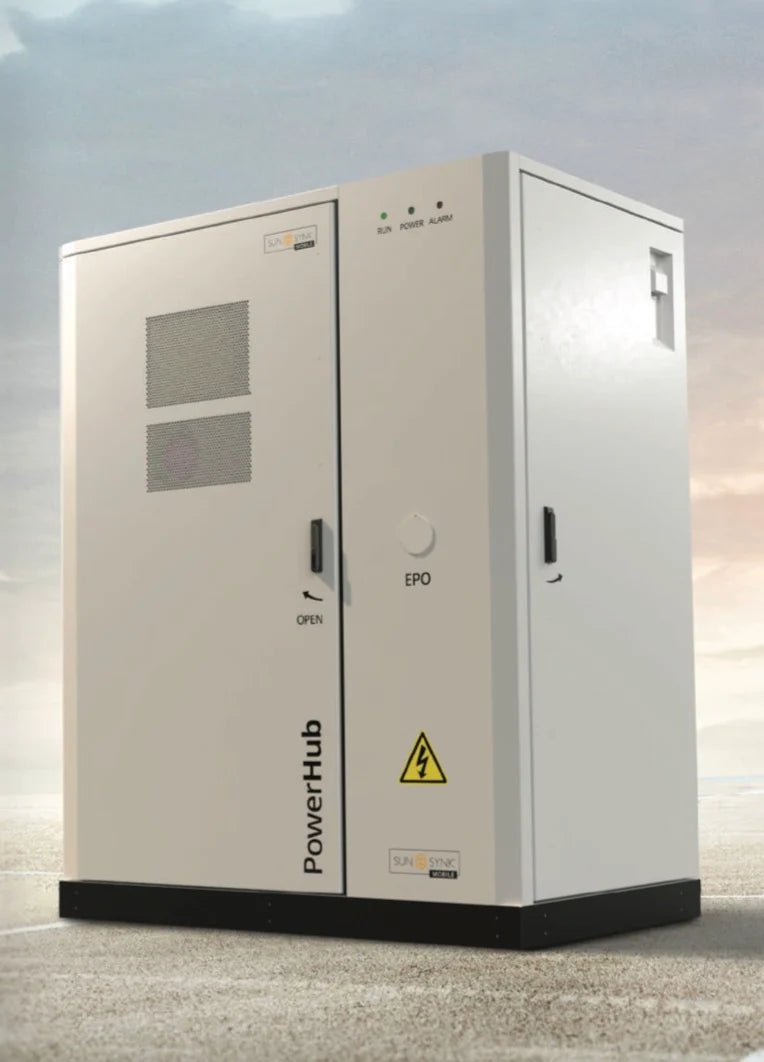

Sunsynk PowerHub 122.8kWh all-in-one energy storage
The Sunsynk PowerHub F120 is a high-voltage, three-phase all-in-one energy storage system for commercial and industrial applications. The cabinet brings together 122.8 kWh of LiFePO4 battery storage, an integrated inverter, BMS, EMS and HVAC temperature control in a single floor-mounted enclosure.
It supports both AC- and DC-coupled solar integration, allowing it to be specified for new PV projects or alongside compatible existing grid-tied solar systems. The PowerHub can also be used in on-grid or off-grid system designs and includes a dedicated generator input for redundancy. [file:127][web:118]
Key features
- Integrated commercial system: combines inverter, battery, BMS, EMS and HVAC equipment in one IP55 enclosure.
- Solar-ready inverter: up to 65,000 W PV input, four MPPTs and a 150–850 V DC MPPT operating range.
- Three-phase output: 50,000 W nominal output/UPS power at 220/380 V or 230/400 V AC.
- Flexible site integration: AC and DC coupling, CT-based smart AC coupling and a dedicated generator input.
- Expandable platform: supports future storage-capacity expansion up to 1.28 MWh.
Where to use
The Sunsynk PowerHub 122.8kWh battery system is suited to warehouses, logistics premises, agricultural sites, retail units, offices, workshops and small manufacturing facilities. Typical applications include increasing solar self-consumption, reducing peak grid demand, charging from lower-cost tariff periods and supporting critical loads.
This is a substantial C&I system rather than an out-of-the-box battery. A trusted qualified partner should design the grid connection, export limitation, PV interface, generator interface, protection, earthing, civil base, lifting plan and commissioning process. Energian offers UK expert support for complete system design. [file:127]
Technical specifications
System specification
| Model | SS-CS-GE-F120 |
| System type | Turnkey, all-in-one AC/DC-coupled energy storage solution |
| Energy configuration | 122.8 kWh |
| Module capacity | 100 Ah |
| Battery chemistry | LiFePO4 |
| Battery operating voltage | 500–700 V |
| Charge/discharge current | 100 A |
| Maximum charging/discharging efficiency | 91.0% |
| Maximum grid AC input | 50,000 W |
| Nominal output power / UPS power | 50,000 W |
| AC output frequency and voltage | 50/60 Hz; 220/380 V, 230/400 Vac |
| Grid type | 3L/N/PE |
| AC output rated current | 75.8 A |
| Dimensions (W × D × H) | 1,780 × 1,056 × 2,235 mm |
| Weight | Approximately 2,090 kg |
| Enclosure protection rating | IP55 |
| Installation style | Floor-mounted |
| Temperature control | Built-in HVAC system |
| Grid compatibility | On-grid and off-grid installations |
| Generator integration | Dedicated generator input |
| Scalability | Up to 1.28 MWh |
| Warranty | 10 years |
Inverter technical specification
| Maximum PV input power | 65,000 W |
| Maximum PV input current | 36 A + 36 A + 36 A + 36 A |
| Rated PV input voltage | 600 Vdc |
| Start-up DC voltage | 180 Vdc |
| MPPT voltage range | 150–850 Vdc |
| Maximum PV short-circuit current | 55 A + 55 A + 55 A + 55 A |
| Number of MPPTs | 4 |
| Peak power, off-grid | 1.5 times rated power for 10 seconds |
| Power factor | 0.8 leading to 0.8 lagging |
| Total harmonic distortion | <3% |
| DC injection current | <0.5% In |
| Display | LCD |
| Operating temperature range | -40°C to +60°C; derating above +45°C |
| Relative humidity | 15–85%, non-condensing |
| Inverter dimensions (W × D × H) | 527 × 294 × 894 mm |
| Inverter communication | CAN, RS485, WiFi, Ethernet |
| Grid regulation | VDE 4105, IEC 61727/62116, VDE 0126, AS 4777.2, CEI 0-21, EN 50549-1, G98, G99, C10-11, UNE 217002, NBR 16149/NBR 16150 |
| Maximum efficiency | 97.6% |
| MPPT efficiency | 99.9% |
Battery technical specification
| Battery module nominal voltage | 51.2 V |
| Battery module energy | 5.12 kWh |
| BMS communication | CAN |
| Battery module dimensions (W × D × H) | 440 × 570 × 133 mm |
| Battery module weight | 44 kg |
| Operating temperature range | Charge: 0°C to +55°C; discharge: -20°C to +55°C |
| Cycle life | ≥6,000 cycles at 25°C ±2°C, 0.5C/0.5C, 70% EOL |
| Battery module certification | UN38.3, IEC 62619, IEC 61000 |
