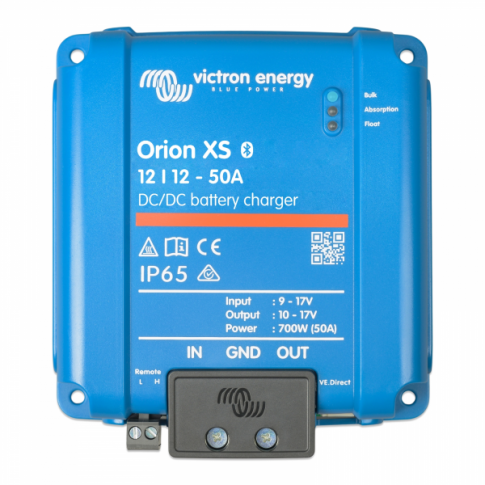

Victron Orion XS 50A 12V DC to 12V DC isolated battery-to-battery charger for lead acid or lithium batteries with Bluetooth
Victron Orion XS 50A 12V DC to 12V DC non-isolated battery-to-battery charger for lead acid or lithium batteries with Bluetooth
- Ultra-compact 50A (700W) charger fits tight engine bays in trucks, generators, or commercial vehicles.
- Fanless, silent operation at 98.5% efficiency with adjustable current (1-50A in 0.1A steps).
- Bluetooth app plus VE.Direct enables fleet monitoring and precise alternator current limiting.
This non-isolated Victron Orion XS 50A DC-DC charger draws from a 12V starter battery (via alternator) to charge 12V service batteries using adaptive 4-stage charging. Engine running detection protects the starter battery; ideal for logistics fleets or construction sites. For correct dual-battery wiring, use our trusted UK installation partners – our experts provide guidance.
Key Features
- 4-stage adaptive charging with 8 presets for lead-acid or lithium batteries via VictronConnect app.
- Smart alternator compatible with adjustable input current limit and engine detection.
- Bluetooth Smart, VE.Direct port, VE.Smart Networking for system integration.
- IP65 rated; full protections against overload, short circuit, over-temperature, reverse polarity.
- Parallels unlimited units; configurable as power supply (10-17V output).
Technical Specifications
- Input voltage range: 9 – 17 V
- Output voltage adjust range: 10 – 17 V
- Output voltage tolerance: ± 0.25% (max)
- Output voltage noise: 10 mV rms
- Input and output current setting range: 1 – 50 A
- Maximum constant short-circuit current: 50 A
- Continuous output power up to 40 °C: 700 W
- Maximum efficiency: 98.5%
- No-load current consumption: < 100 mA
- Standby current consumption: < 1.5 mA
- Operating temperature range: -20 to +60 °C (derating 1.5% per °C above 40 °C)
- Humidity: 95%, non-condensing
- DC connection: Screw terminals
- Maximum cable cross-section: 4 AWG (21.2 mm²)
- Protection category: IP65
- Weight: 0.520 kg (1.14 lb)
- Dimensions h x w x d: 138.1 x 124.4 x 53 mm (5.44 x 4.9 x 2.1 inch)
