Victron 20A 24V DC to 12V DC Isolated Battery-to-Battery Charger for Lead Acid or Lithium Batteries with Bluetooth
Victron 20A 24V DC to 12V DC battery-to-battery charger for lead acid or lithium batteries with Bluetooth and galvanic isolation
- Charges 12V batteries from 24V source using alternator, solar or DC input – suits dual voltage systems in vehicles and sites.
- Bluetooth app for monitoring, settings and adaptive charging to extend battery life.
- Galvanic isolation prevents current leakage in marine or mixed ground setups.

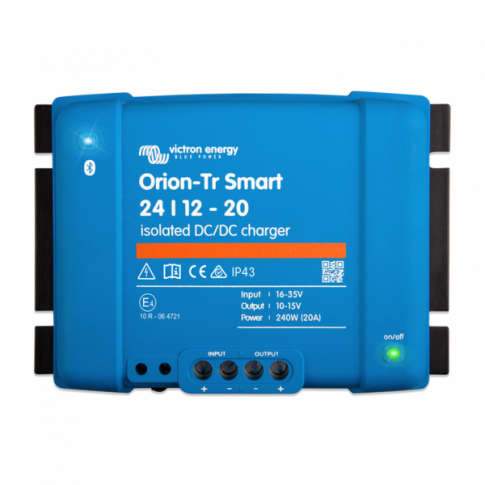

The Victron Orion-Tr Smart 24/12-20 isolated DC-DC charger provides 240W to charge 12V lead-acid or lithium batteries from a 24V source. Intelligent multi-stage charging includes bulk, absorption and float stages with engine detection for vehicles. Galvanic isolation up to 200V DC separates input, output and case.
Key Features
- Remote on/off and parallel capable for system expansion.
- Short circuit proof, high temperature protected with IP43 rating.
- Low standby draw under 1mA; suits smart alternators.
- LED indicators for charge stage and Bluetooth status.
Applications
Ideal for HGVs with 24V systems charging 12V auxiliaries, boats, off-grid sites and industrial dual-battery setups. Suggest installation via trusted partners for non-plug-and-play use; our UK experts can guide.
Technical Specifications
Orion-Tr Smart isolated 24/12-20 (240W)
- Input voltage range: 16-35 V
- Under voltage shut down: 14 V
- Under voltage restart: 15 V
- Nominal output voltage: 12.2 V
- Output voltage adjust range: 10-15 V
- Output voltage tolerance: +/- 0.2 V
- Output noise: 2 mV rms
- Cont. output current at nominal output voltage and 40°C: 20 A
- Maximum output current (10 s): 25 A
- Short circuit output current: 50 A
- Cont. output power at 25°C: 300 W
- Cont. output power at 40°C: 240 W
- Efficiency: 88%
- No load input current: < 100 mA
- Standby current: Less than 1 mA
- Galvanic isolation: 200 V dc between input, output and case
- Operating temperature range: -20 to +55 °C (derate 3% per °C above 40 °C)
- Humidity: Max. 95% non-condensing
- DC connection: Screw terminals 16 mm² (AWG6)
- Weight: 1.3 kg
- Dimensions h x w x d: 130 x 186 x 70 mm
- Standards: Safety EN 60950; Emission EN 61000-6-3, EN 55014-1; Immunity EN 61000-6-2, EN 61000-6-1, EN 55014-2; Automotive Directive ECE R10-5
