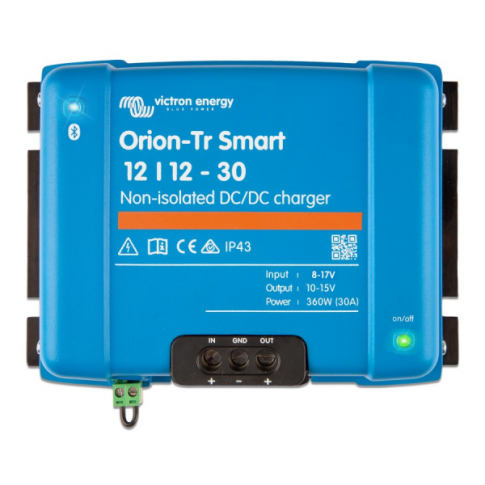

Victron Orion Smart 30A 12V DC to 12V DC non-isolated battery-to-battery charger with Bluetooth
Victron Orion Smart 30A 12V DC to 12V DC non-isolated battery-to-battery charger for with Bluetooth connectivity
- Charges 12V leisure batteries from starter batteries while driving, with adaptive 3-stage algorithm for lead-acid or lithium.
- Bluetooth app control for monitoring and settings – suits vans, trucks, or site generators.
- Smart alternator compatible with engine-run detection to protect starter batteries.
This non-isolated Victron Orion Smart 30A DC-DC charger transfers power from a 12V starter battery to charge another 12V service battery safely. It uses bulk, absorption, and float stages to optimise battery life, working alongside solar or generators. For dual-battery installs in commercial vehicles, consult our UK experts or use trusted partners.
Key Features
- Bluetooth Smart enabled for monitoring, settings changes, and software updates via VictronConnect app.
- Fully programmable charge algorithm or fixed output; adaptive absorption time.
- Remote on/off via switch or relay; short circuit proof; parallels for higher current.
- High temperature protection; IP43 rated when mounted vertically.
- Screw terminals for easy installation, no special tools needed.
Technical Specifications
- Input voltage range: 10-17 V
- Under voltage shut down: 7 V
- Under voltage restart: 7.5 V
- Nominal output voltage: 12.2 V
- Output voltage adjust range: 10-15 V
- Output voltage tolerance: +/- 0.2 V
- Output noise: 2 mV rms
- Cont. output current at nominal output voltage and 40°C: 30 A
- Maximum output current (10 s) at nominal output voltage: 40 A
- Short circuit output current: 60 A
- Cont. output power at 25°C: 430 W
- Cont. output power at 40°C: 360 W
- Efficiency: 87%
- No load input current: < 80 mA
- Standby current: Less than 1 mA
- Operating temperature range: -20 to +55°C (derate 3% per °C above 40°C)
- Humidity: Max. 95% non-condensing
- DC connection: Screw terminals
- Maximum cable cross-section: 16 mm² (AWG6)
- Weight: 1.3 kg
- Dimensions h x w x d: 130 x 186 x 70 mm
- Protection category: IP43 (when installed with screw terminals oriented downwards)
