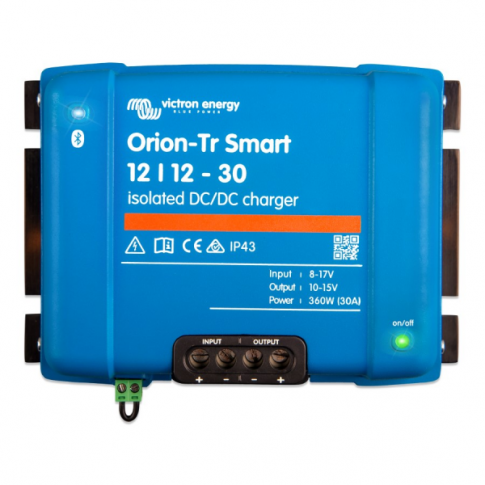

Victron Orion Smart 30A 12V DC to 12V DC isolated battery-to-battery charger with Bluetooth
Victron Orion Smart 30A 12V DC to 12V DC battery-to-battery charger for lead acid or lithium batteries with Bluetooth and galvanic isolation
- Galvanic isolation (200 VDC) separates input/output/case to prevent ground loops and noise in sensitive electronics.
- Charges 12V service batteries from starter batteries with Bluetooth monitoring, ideal for trucks or marine use.
- Adaptive 3-stage charging works with lead-acid or lithium and Euro 5/6 smart alternators.
This isolated Victron Orion Smart 30A DC-DC charger safely transfers power from a 12V starter battery to charge a 12V auxiliary battery. Full galvanic isolation protects against electrical interference, suiting logistics vehicles, boats, or generators with electronics. For proper dual-battery wiring, use our trusted UK installation partners – our experts can guide you.
Key Features
- Bluetooth Smart via VictronConnect app for real-time monitoring, programming, and engine-run detection.
- Adaptive 3-stage charging (bulk, absorption, float) fully programmable for battery type.
- Galvanic isolation: 200 VDC between input, output, and case; full protections included.
- Remote on/off control; can parallel units; works with solar chargers.
- LED diagnosis; high temperature shut down and recovery.
Technical Specifications
- Input voltage range: 10 – 17 V
- Under voltage shut down: 9 V
- Under voltage restart: 10 V
- Nominal output voltage: 12.2 V
- Output voltage adjust range: 10 – 15 V
- Output voltage tolerance: +/- 0.2 V
- Output voltage ripple: 2 mV rms
- Continuous output current at 40°C: 30 A
- Maximum output current (10s): 40 A
- Short circuit output current: 60 A
- Continuous output power at 25°C: 430 W
- Continuous output power at 40°C: 360 W
- Efficiency: 87%
- No load input current: < 80 mA
- Standby current: < 1 mA
- Galvanic isolation: 200 VDC (input, output, case)
- Operating temperature: -20 to +55°C (derate 3% / °C above 40°C)
- Humidity: Max. 95% non-condensing
- DC connection: Screw terminals
- Maximum cable cross-section: 16 mm² (AWG6)
- Protection category: IP43 (electronics), IP22 (connection)
- Dimensions (h x w x d): 130 x 186 x 80 mm
- Weight: 1.8 kg
