VICTRON MultiPlus 12/3000/120-16 230V VE.Bus 12V 3kVA, 2.4kW Off-grid Hybrid Inverter charger (Copy)

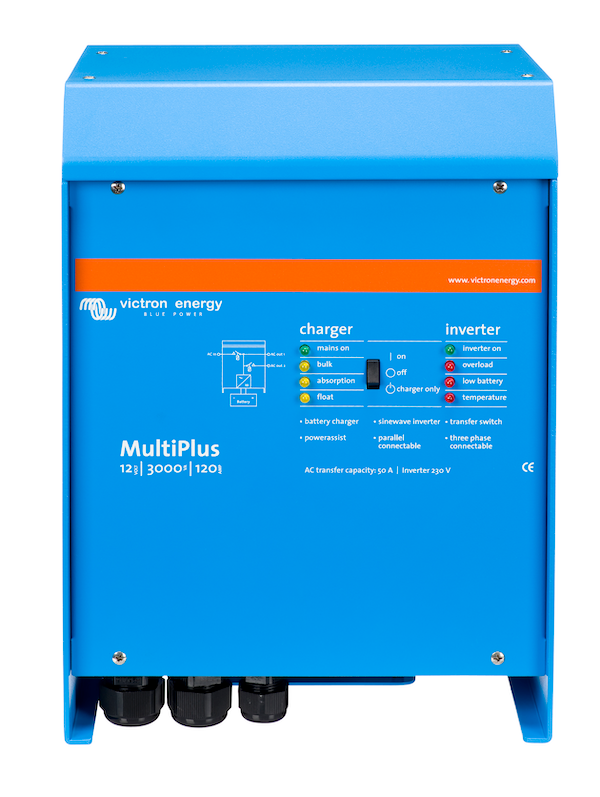

Victron MultiPlus 12/3000/120-16 230V VE.Bus Inverter/Charger
The MultiPlus combines a true sine wave inverter, an adaptive high-current charger and a rapid AC transfer switch in one compact unit. It brings proven Victron features like PowerAssist, PowerControl and flexible system integration to campervans, boats, cabins and off-grid homes where space and reliability matter.
Installation available – contact us for a quote.
Key features
- 3000 VA 12 V pure sine wave inverter: delivers up to 2400 W continuous at 25 °C with 6000 W peak for demanding start-ups.
- Adaptive 120 A 4-stage battery charger (bulk, absorption, float, storage) with temperature compensation for safe, fast charging.
- High-speed AC transfer: automatic switchover in <20 ms for UPS-class continuity to sensitive loads.
- Two AC outputs: uninterrupted output for priority loads plus an auxiliary output that disconnects on inverter power to protect non-essential loads.
- PowerControl: set a shore or generator current limit so charging automatically backs off to avoid tripping supplies.
- PowerAssist: boosts shore or generator power with inverter power during short peaks, then recharges the battery when the load drops.
- Expandable: up to 6 units in parallel for higher power. Configure for three-phase systems with matching models.
- Smart system options: remote monitoring and control with Victron GX devices and the free VRM portal. Programmable relay and communication ports for custom control.
- Second battery output: dedicated 4 A trickle charge for a starter battery.
- Efficient operation: up to 93% inverter efficiency, 20 W idle, 15 W in AES mode and as low as 8 W in Search mode.
Ideal applications
Off-grid systems, backup power for home offices and garden rooms, marine and motorhome electrical systems, mobile workshops and remote monitoring sites.
Additional intelligent functions
- Programmable relay for alarm or generator start/stop functions.
- BatterySafe & Storage modes to reduce gassing, prevent sulphation and extend battery life.
- Voltage sense and temperature sensor included for accurate charging at the battery terminals.
Delivery
- FREE 2–3 working days shipping if ordered by 5 pm on a working day (longer to the Scottish Highlands, Islands and Northern Ireland).
Detailed specifications
| Model | MultiPlus 12/3000/120-16 230 V VE.Bus |
| Nominal battery voltage | 12 V DC |
| Inverter – continuous / peak | 3000 VA / 2400 W continuous at 25 °C, 6000 W peak |
| Output voltage / frequency | 230 VAC ±2% / 50 Hz ±0.1% (60 Hz configurable) |
| Transfer time | Typically <20 ms |
| Charger | 120 A max (house bank), 4 A starter output; adaptive 4-stage profile |
| AC input range | 187–265 VAC, 45–65 Hz |
| Max AC transfer current | 16 A (AC-out-1), AC-out-2 up to 16 A when shore/generator present |
| Efficiency / idle consumption | Up to 93% / 20 W idle, 15 W AES, 8 W Search |
| Operating temperature | -40 °C to +65 °C (fan-assisted cooling) |
| Humidity | Max 95% RH, non-condensing |
| Ingress protection | IP20 |
| Battery connections | M8 bolts (two positive, two negative) |
| AC connections | Screw terminals, 13 mm² (6 AWG) |
| Dimensions (H × W × D) | 362 × 258 × 218 mm |
| Weight | 18 kg |
| Protection | Output short circuit, overload, battery over/undervoltage, over-temperature, 230 VAC on inverter output, excessive input ripple |
| Standards | EN 60335-1, EN 60335-2-29, IEC 62109-1; EMC EN 55014-1/-2 |
In the box
- 1 × Victron MultiPlus 12/3000/120-16 230 V VE.Bus Inverter/Charger
- Wall mounting plate and fasteners
- Battery temperature sensor
- User manual
Support documents
Warranty
5-year manufacturer warranty included.
