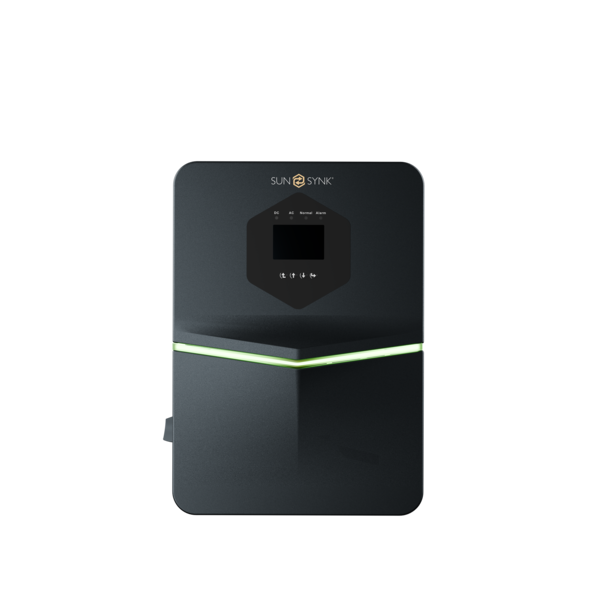

Sunsynk ACURE 3.6kW Black Single-Phase Hybrid Inverter
- 3.6 kW single-phase hybrid inverter for solar PV, 48 V battery storage and selected backup-load systems.
- Supports up to 7.2 kW PV access power across two independent MPPT trackers.
- Compatible with lead-acid and lithium-ion batteries, with self-adaption to a compatible lithium battery BMS.
Sunsynk ACURE 3.6kW hybrid inverter for solar and battery storage
The black Sunsynk ACURE 3.6kW Single-Phase Hybrid Inverter combines solar PV conversion, low-voltage battery charging and AC energy management in one IP65-rated unit. It is suitable for homes, smaller outbuildings, workshops and small single-phase sites seeking to use more on-site solar energy.
The inverter provides 3,600 W rated AC input/output active power, supports a 40–60 V battery bank and has two MPPT inputs for separate PV array orientations. It should be installed, protected and commissioned by a qualified trusted partner. [web:64]
Key features
- Flexible PV connection: two MPPT trackers, with one string per tracker and up to 7,200 W PV access power.
- 48 V battery system: works with lead-acid or lithium-ion batteries at 40–60 V, with up to 90 A charge and discharge current.
- Backup-load support: 3.6 kW rated AC power, with up to twice rated off-grid peak power for 10 seconds.
- Efficient conversion: 97.6% maximum efficiency, 96.5% European efficiency and MPPT efficiency above 99%.
- Weather-protected design: IP65 enclosure, intelligent air cooling and Type II AC and DC surge protection.
Where to use
Use the Sunsynk ACURE 3.6kW Black Single-Phase Hybrid Inverter in residential solar-and-battery systems, garden offices, workshops, farm outbuildings and modest-demand single-phase commercial applications. Its two MPPTs suit solar arrays on two roof aspects, provided the string design remains within the inverter’s voltage and current limits.
It can form part of a battery-backed power system, but battery compatibility, backup circuits, PV string sizing, earthing, protection and G98/G99 requirements must be confirmed for the site. Energian offers UK expert support and can help identify a trusted installation partner. [web:64][web:92]
Technical specifications
| Model | SunC2-3.6LV01WB |
| Battery type | Lead-acid or lithium-ion |
| Battery voltage range | 40–60 V |
| Maximum charging current | 90 A |
| Maximum discharging current | 90 A |
| Lithium-ion charging strategy | Self-adaption to BMS |
| Number of battery inputs | 1 |
| Maximum PV access power | 7,200 W |
| Maximum PV input power | 5,760 W |
| Maximum PV input voltage | 500 V |
| Start-up voltage | 125 V |
| MPPT voltage range | 150–425 V |
| Rated PV input voltage | 370 V |
| Maximum operating PV input current | 18 A + 18 A |
| Maximum input short-circuit current | 27 A + 27 A |
| Number of MPPT trackers / strings per MPPT | 2 / 1+1 |
| Rated AC input/output active power | 3,600 W |
| Maximum AC input/output apparent power | 3,960 VA |
| Peak power, off-grid | 2 times rated power, 10 seconds |
| Rated AC input/output current | 16.4 A / 15.7 A |
| Maximum AC input/output current | 18 A / 17.3 A |
| Maximum continuous AC passthrough, grid to load | 35 A |
| Rated input/output voltage range | 220 V / 230 V; 0.85Un–1.1Un |
| Grid connection form | L+N+PE |
| Rated input/output grid frequency range | 50 Hz: 45–55 Hz; 60 Hz: 55–65 Hz |
| Power factor adjustment range | 0.8 leading–0.8 lagging |
| Total current harmonic distortion | THDi <3% of nominal power |
| DC injection current | <0.5% In |
| Maximum efficiency | 97.6% |
| European efficiency | 96.5% |
| MPPT efficiency | >99% |
| Integrated protection | DC polarity reverse connection protection, AC output overcurrent protection, thermal protection, AC output overvoltage protection, AC output short-circuit protection, DC component monitoring, overvoltage load drop protection, ground fault current monitoring, optional arc-fault circuit interrupter, power-network monitoring, island-protection monitoring, earth-fault detection, DC input switch, DC terminal insulation impedance monitoring, residual current (RCD) detection |
| Surge protection level | Type II (DC), Type II (AC) |
| Display | LCD + LED |
| Communication interface | RS485 / RS232 / CAN |
| Monitoring mode | GPRS / WiFi / Bluetooth / 4G / LAN, optional |
| Operating temperature range | -40°C to +60°C; derating above +45°C |
| Permissible ambient humidity | 0–100% |
| Permissible altitude | 2,000 m |
| Noise | <30 dB |
| Ingress protection rating | IP65 |
| Inverter topology | Non-isolated |
| Over-voltage category | OVC II (DC), OVC III (AC) |
| Cabinet size (W × H × D) | 366 × 630 × 281.41 mm, excluding connectors and brackets |
| Weight | 27.1 kg |
| Cooling | Intelligent air cooling |
| Warranty | 5 years; 10 years when installed with a Sunsynk battery |
| Grid regulation | G98/G99, NRS 097-2-1, EN 50549-1 |
| Safety / EMC standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 |
