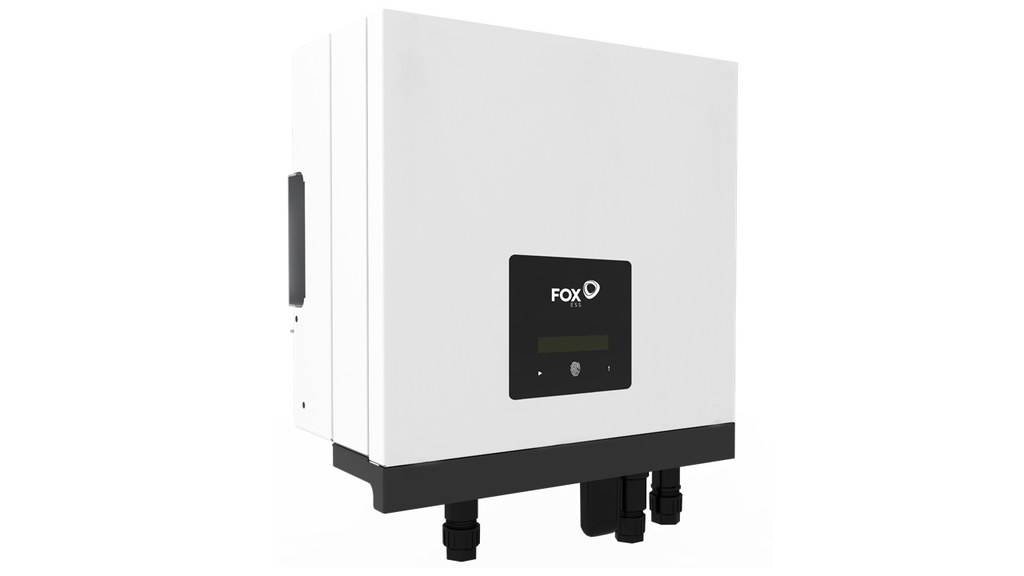

Fox ESS Hybrid H1 3.0kW Single Phase Charger Inverter

£939.20
By Fox ESS

Delivery available

Optimize Your Power with Fox ESS H1 3.0kW Hybrid Inverter

Experience ease of installation and efficient power management with the Fox ESS H1 3.0kW hybrid inverter. Save time during installation and enjoy remote monitoring through your smartphone or web portal.

Benefites:

  • Utilize High Voltage Batteries: Benefit from the advanced technology of high voltage battery systems Fox ESS HV2600-V2, Fox ESS ECS2900, Fox ESS ECS4100, Fox ESS ECS4300, and Fox ESS ECS4800.
  • IP65 Rated for Outdoor Installations: The inverter comes with an IP65 rating, making it suitable for outdoor installations.
  • Remote Monitoring via Web Portal or Smartphone: Stay connected and monitor your system remotely through a web portal or smartphone.
  • Expandable Battery Capacity: Easily expand your battery capacity as needed for enhanced energy storage.
  • Dual MPPT for Optimal Solar Production: Ensure maximum solar production efficiency with the dual MPPT design.
  • High Round-trip Efficiency of 97%: Experience a high round-trip efficiency of 97% for effective energy utilization.
  • Included Accessories: The box includes CT clamps, a meter, and a WiFi stick for added convenience.

Key Features:

  • The Fox ESS H1 3.0kW Hybrid Charger Inverter is a premium-quality device designed to convert solar energy into AC energy for storage in a battery. With flexible configuration and plug-and-play setup, it offers built-in fuse protection and an IP65 rating for outdoor installations.
  • Four Work Modes:
    • Self-use (with PV power): Optimize self-consumption by using energy produced by the PV system. Excess energy charges the batteries and is exported to the grid.
    • Self-use (without PV power): When solar panels don't provide power, the battery powers home appliances, and the grid supplies power when the battery capacity is insufficient.
    • Feed-in Priority: Utilize an external generator to power home appliances first, exporting excess power to the grid and charging the battery.
    • Force Time Use: Ideal for peak and off-peak pricing. Use off-peak electricity to charge the battery, and flexible settings allow choosing whether to charge from the grid. Use stored energy during peak times.
    • Backup (EPS) Mode: Supply emergency power from PV or a battery during grid outages to support home loads.
  • The Fox ESS H1 3.0kW Hybrid Charger Inverter seamlessly integrates with smart Agile tariffs, offering compatibility with Octopus Energy and other Economy 7 energy providers. Additionally, it supports external backup generators for prolonged grid outages.
  • Fast Delivery Across the UK: Enjoy the benefits of the Fox ESS H1 3.0kW Hybrid Charger Inverter with quick 2-3 working days delivery within the UK (longer to the Highlands, islands, and Northern Ireland).

Detailed specifications:

BATTERY CONNECTION
Battery Type: Lithium Iron Phosphate (LiFePO4)
Battery Voltage: 85-450V
Max. Charge/Discharge Current: 40A
Communication Interface: CAN (to communicate with inverter), RS485 (to upgrade BMS)
INPUT PV
Max. Input Power: 390W
Max. Input Voltage: 600V
Start-up Input Voltage: 75V
Rated Input Voltage: 360V
MPPT Operating Voltage Range: 80-550V
Max. Input Current: 13.5A/13.5A
Max. Short-circuit Current: 15A/15A
No. of Independent MPP Trackers: 2
No. of Strings per MPP Tracker: 1
AC INPUT AND OUTPUT (GRID)
Max. AC Input Power: 7000VA
Max. Input Current (per phase): 31.8A
Rated Output Power: 3000W
Max. Output Apparent Power: 3000VA
Rated Output Current (per phase): 13.0A
Max. Output Current: 14.3A
Rated Grid Voltage: 220-240VAC
Rated Grid Frequency: 50/60Hz
Power Factor: 1 ( Adjustable from 0.8 leading to 0.8 lagging )
THDi: <3% @rated power
EPS OUTPUT (WITH BATTERY)
Max. Output Apparent Power: 5000VA
Peak Output Apparent Power (60sec): 6000VA
Max. Current (per phase): 21.7A
Rated Output Voltage: 220-240VAC
Rated Output Frequency: 50/60Hz
Power Factor: 1 ( Adjustable from 0.8 leading to 0.8 lagging )
THDi (linear load): <2% @rated power
Switch Time: 20ms
EFFICIENCY
Max. Efficiency: 97.80%
Max. Battery Charge Efficiency (PV to BAT) (@full load): 98.5%
Max. Battery Discharge Efficiency (BAT to AC)(@full load): 97.00%
Operating Temperature: -25 ~ +60°C
Protection Degree: IP65
Size: 430 x 410 x 178mm
Net Weight: 23kg

In the Box:

  • 1 X Fox ESS H1 3.0kW Hybrid Inverter,
  • 1 X Fox ESS H1 3.0kW Hybrid Inverter User's Manual.
