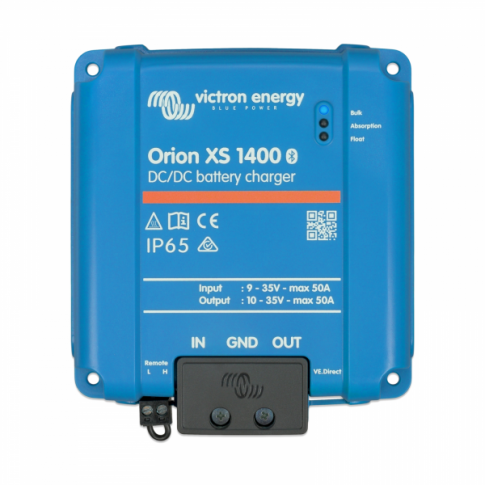

Victron Orion XS 1400 50A DC to DC automatic multi-stage intelligent battery-to-battery charger for mixed 12V/24V systems
Victron Orion XS 1400 50A DC to DC automatic multi-stage intelligent battery-to-battery charger for mixed 12V/24V systems
- Handles 12V input to 12V or 24V output at 50A (up to 1400W), with auto-voltage detection for flexible mixed systems.
- Ultra-compact (138 x 124 x 53 mm) and fanless for silent operation in tight commercial vehicle bays or generators.
- Bluetooth app lets you adjust current precisely (1-50A steps of 0.1A) and monitor via VictronConnect.
This Victron Orion XS 1400 50A DC-DC charger boosts alternator output to properly charge 12V or 24V service batteries from a 12V starter battery (input up to 35V). Engine detection activates charging only when running, protecting the starter battery. Suits logistics trucks, construction sites, or RVs; for safe install, use our trusted UK partners – our experts are here to help.
Key Features
- Adaptive 4-stage charge algorithm with 8 pre-programmed settings for lead-acid or lithium batteries.
- Engine running detection and adjustable input current limit for smart alternators (Euro 5/6).
- Bluetooth Smart enabled; VE.Smart Networking and VE.Direct port for advanced monitoring (DVCC).
- Low temp shutdown for lithium; remote on/off; parallels unlimited units.
- IP65 rated; protections for overload, short circuit, over-temp, input undervoltage.
Technical Specifications
- Input voltage range: 9 – 35 V
- Output voltage adjust range: 10 – 35 V
- Output voltage tolerance: +/- 0.25% (max)
- Output voltage noise: 10 mV rms
- Input and output current setting range: 1 – 50 A
- Maximum constant short-circuit current: 50 A
- Continuous output power up to 40 °C: 1400 W
- Maximum efficiency: 98.5%
- No-load current consumption: < 100 mA
- Standby current consumption: < 1.5 mA
- Can be used as power supply: Yes, output voltage can be set with VictronConnect App
- Communication: VictronConnect App / Bluetooth Smart: Yes; VE.Smart Networking: Yes; VE.Direct: Yes (including DVCC)
- Operating temperature range: -20 to +60 °C (derating 1.5% per °C above 40 °C)
- Humidity: 95%, non-condensing
- Maximum altitude: 2000 m
- Pollution degree: PD2
- Overvoltage category: OVC 1
- DC connection: Screw terminals
- Maximum cable cross-section: 4 AWG (21.2 mm²)
- Weight: 0.520 kg (1.14 lb)
- Dimensions h x w x d: 138.1 x 124.4 x 53 mm (5.44 x 4.9 x 2.1 inch)
- Protection category: IP65
- Standards - Safety: IEC 62477-1; EMC: EN 300 328, EN 301 489-1, EN 301 489-17, FCC 15B, ICES-003; Automotive Directive: ECE R10-6
