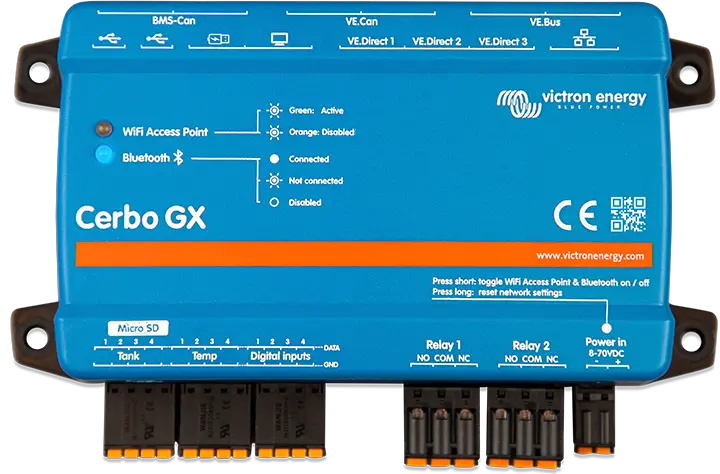

Victron Cerbo GX Communication Centre
Gain total control over your off-grid or hybrid power system with the Victron Cerbo GX. This compact, powerful communication hub gives you instant visibility of all system components and enables full remote access, configuration, and diagnostics from anywhere via the Victron Remote Management (VRM) portal or VictronConnect app.
Pair it with the optional GX Touch 50 or 70 display for a sleek, waterproof interface that brings your system to life with real-time insights at your fingertips.
Key Features
- Complete system monitoring: See battery status, solar yield, generator use, shore input, loads, tank levels and more, locally or remotely.
- Multiple communication ports: Includes VE.Bus, VE.Direct, VE.Can, Ethernet, USB, and built-in WiFi & Bluetooth for seamless integration with Victron and third-party equipment.
- Remote access via VRM: Monitor, control and configure your entire system online, just as if you were standing in front of it.
- Simple installation: Mounts easily on a wall or DIN rail (with optional adapter). Connects to GX Touch display with a single cable.
- Smart relay outputs: Two programmable relays for generator auto-start, alarms, tank pumps, or custom logic (firmware 2.80+ required).
- Futureproof platform: Runs Victron’s Venus OS, with constant firmware updates and integration possibilities.

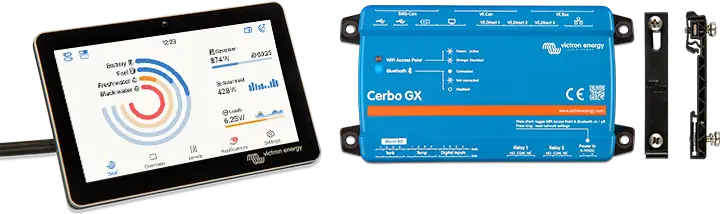

Optional Display – GX Touch
The GX Touch 50 and GX Touch 70 displays are optional touchscreen interfaces for the Cerbo GX. Available in top/wall mount or flush-mount styles, they offer:
- High-resolution displays: 800×480 (Touch 50), 1024×600 (Touch 70)
- Waterproof design: IP54 or IP65 (with rubber gasket)
- Protective UV cover (included with wall-mounted models)
- Quick installation with 2m cable included
Specifications
| Parameter | Value |
|---|---|
| Supply Voltage | 8 – 70 VDC |
| Power Consumption | 2.8 W @ 12 V (no display), up to 4.8 W with display |
| Communication Ports | 3 × VE.Direct, 2 × VE.Bus, 2 × VE.Can (1 isolated), 1 × BMS-Can, Ethernet, USB, HDMI |
| Inputs | 4 × tank level, 4 × temperature, 4 × digital |
| Relay Outputs | 2 × programmable relays (NO/NC), up to 6 A AC / DC |
| Bluetooth & WiFi | Built-in (Bluetooth for setup only) |
| Mounting | Wall or DIN rail (adapter required) |
| Operating Temperature | -20°C to +50°C |
| Dimensions (h × w × d) | 78 × 154 × 48 mm |
| IP Rating | IP20 |
What's Included
- Victron Cerbo GX (main unit)
- Wiring terminals and connectors
- Optional: GX Touch 50 or 70 display (with mounting accessories and protective cover)
Applications
- Off-grid and hybrid solar energy systems
- Marine and vehicle power systems
- Commercial backup or grid-tied storage setups
