Van der Valk ValkSolarFix Flat Roof Solar Mounting Kit

To receive a bespoke design and accurate quote, please contact is via info@energian.co.uk with your project details. The price displayed here is a placeholder.

• Mechanical flat roof anchoring kit for ValkPro+ and ValkPitched systems where ballast alone is not enough or where the roof can't support ballast (tall buildings, high wind, weaker roofs).
• No extra ballast required at the anchor points, reducing dead load on the roof while providing a storm‑proof connection into the structural deck.
• Certified, watertight fixing with EPDM sealing and membrane rosette, backed by UK expert support from Energian and your certified roofer.

ValkSolarFix is Van der Valk Solar Systems’ mechanical roof anchoring console for ValkPro+ flat roof and ValkPitched roof mounting systems. It is not a complete mounting system; instead, it provides a low‑profile aluminium base with an M10 hanger bolt that fixes through the roof covering and insulation into the deck below using tested methods for timber, steel, concrete or aerated concrete roofs.

Key features

• No ballast required at the anchor — the mechanical fixing eliminates additional dead load on the structure while providing storm‑resistant restraint.
• Large base footprint distributes pressure over the membrane and insulation, with free water flow and airflow beneath the panels for heat regulation.
• Completely watertight fixing using an EPDM sealing ring at the hanger bolt plus a heat‑welded bitumen or PVC rosette installed by a qualified roofer.
• Multiple fixing options for timber, steel, concrete and aerated concrete decks, plus toggle anchors for deep insulation or hard‑to‑reach decks.
• Compatible with ValkPro+ roof carrier, Side++ perimeter anchoring profiles and C+ profiles, allowing mechanical anchoring exactly where the design requires it.

Typical applications

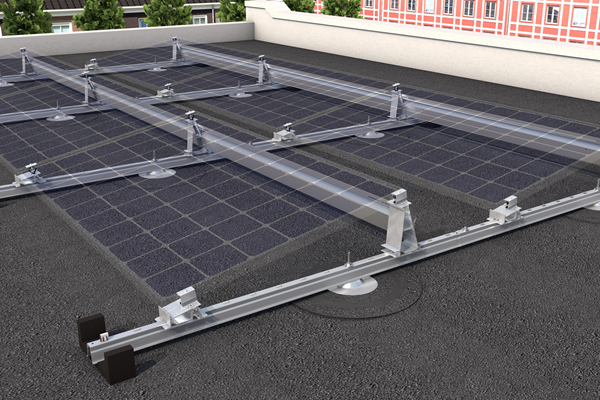

Use ValkSolarFix wherever a ballasted flat roof PV system needs mechanical restraint: tall commercial buildings, exposed coastal sites, logistics hubs and roofs with limited load‑bearing capacity. It is also suitable for pitched warm roofs and green roofs via dedicated variants and accessories, when used with the appropriate Van der Valk mounting system above.

How the ValkSolarFix mounting kit works

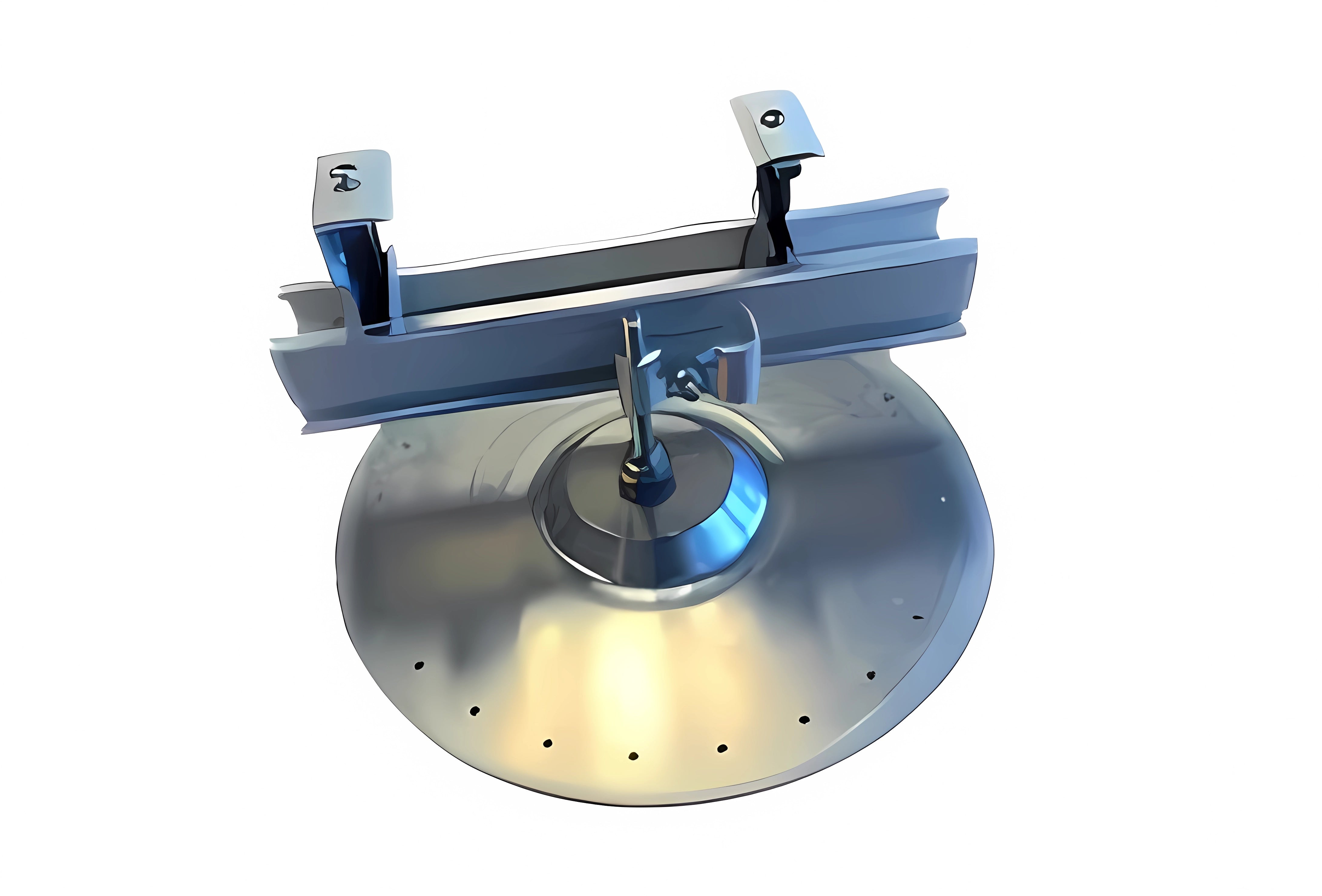

The core console (article 747600) is a low‑profile aluminium base plate, 20 mm high, with a central stainless‑steel M10 hanger bolt that protrudes upward for clamping the rail or roof carrier. The console is fixed through the roof membrane and insulation into the structural deck using stainless steel screws, toggle anchors or concrete anchors, selected according to deck type and total roof build‑up height.

Once fixed, the ValkPro+ roof carrier, Side++ profile or C+ profile is clamped to the hanger bolt with the mounting set (747604 or 747607), which includes M10 bolt, nuts, body rings and EPDM sealing ring, with tightening torque between 8–14 N·m for the console connection and 15 N·m for Side++ profile connections.

Technical specifications

What it is

• Product type: Mechanical roof anchoring console for solar mounting systems
• Function: Fixing interface between the roof structure and a Van der Valk mounting system above (ValkPro+ for flat roofs, ValkPitched for pitched roofs).
• Purpose: Provides a certified, waterproof mechanical anchor point where ballast alone is insufficient, typically on tall buildings, high‑wind sites or roofs with low load‑bearing capacity

Console – core component

• ValkSolarFix Low h=20 mm - aluminium base console.
• ValkSolarFix Low - PVC cover (for PVC roof membranes).
• ValkSolarFix Low h=20 mm - PVC coated version, supplied on request.
• Console position: Sits on top of the roof membrane; the central M10 hanger bolt passes through the insulation and deck.

Fixation methods - four options

1. Screws into wood (timber deck / OSB

2. Screws into steel sheet (trapezoidal / flat steel deck)

3. Toggle anchor (wood or steel - where screws cannot reach deck)

4. Concrete anchor (concrete roof deck / aerated concrete).

Scope of application

• Flat roof, timber/OSB deck: screw fixings 747630-747638.
• Flat roof, steel deck (0.75-2.5 mm): screw fixings 747640-747645.
• Flat roof, concrete deck: concrete anchors 747610-747613.
• Flat roof, aerated concrete deck: aerated concrete screws 747651-747656
• Flat or pitched roof with deep insulation: toggle anchors 747620-747621.
• Pitched warm roof: any of the above fixings, with C+ profile above.
• Green roof: special ValkSolarFix Green Roof variants 747670-747671.
• Suitable for buildings up to 25 m height; higher buildings on request with project calculation in ValkPVplanner.

Special accessories

• Fixation tool 15 L=200 mm - for tightening EPDM flange nuts;
• Fixation tool 17 L=500 mm - for tightening toggle/concrete anchor M10 nut;
• Bitumen rosette for membrane seal around console;
• PVC rosette;
• B‑Clamp – steel girder;
• Z‑Clamp – wood and concrete girder;
• L‑Clamp – wood and concrete girder;
• ValkSolarFix Green Roof – single fixation;
• ValkSolarFix Green Roof - multiple fixation.

Documents available for download

• ValkSolarFix — System Description
• ValkSolarFix Installation Manual
