Trinasolar 520W Vertex S+ Dual Glass N-type i-TOPCon Black Frame Solar Panels
- 520W rated output and 23.4% module efficiency for rooftop projects where available space matters.
- Dual-glass construction with a black aluminium frame, measuring 1961 × 1134 × 30mm.
- 15-year product warranty and 30-year power guarantee, subject to Trinasolar’s applicable warranty terms.

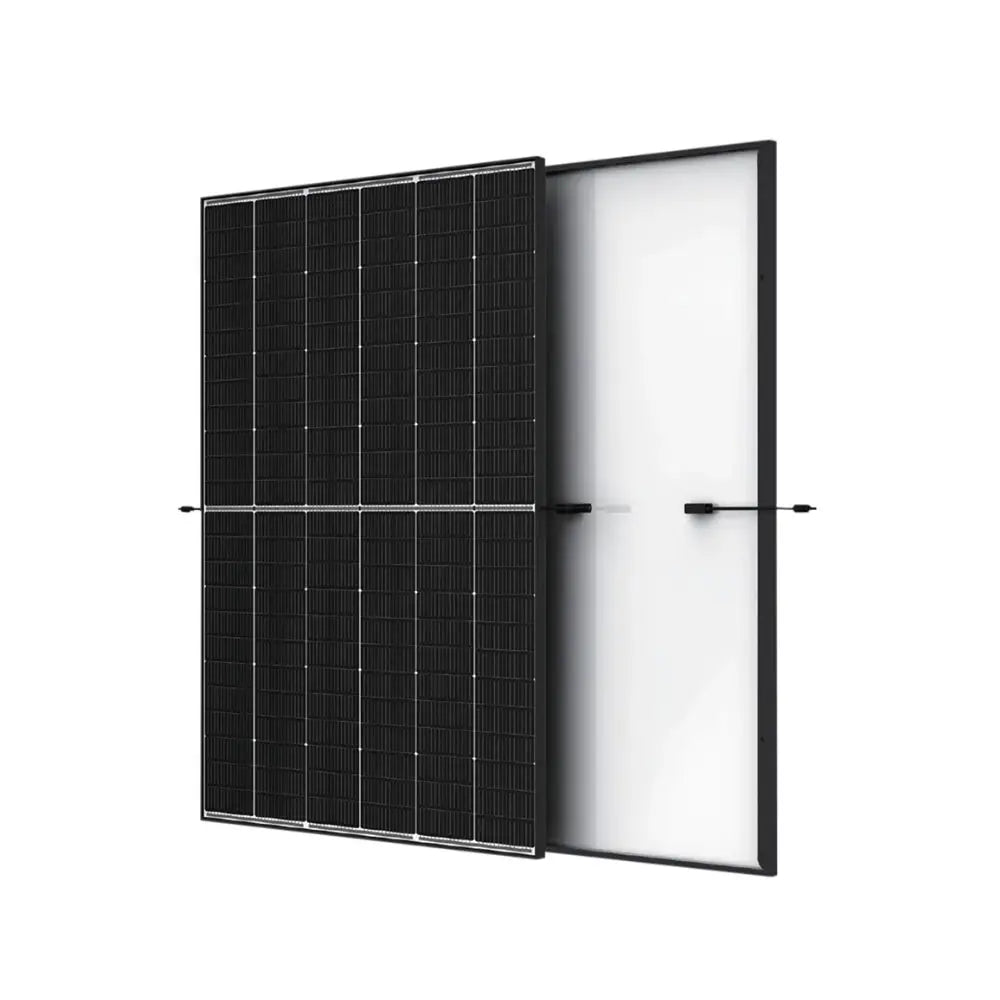

Trinasolar 520W Vertex S+ dual glass solar panel
The Trinasolar 520W Vertex S+ dual glass solar panel combines N-type i-TOPCon monocrystalline cells with 23.4% module efficiency and a black frame. Part of the TSM-NEG18R.28 range, it provides 520W rated output in a module under two metres long. Its monofacial design generates from the front surface; dual glass describes the construction, not rear-side generation.
Key features
- 520W rated output under standard test conditions, with a maximum power voltage of 34.1V.
- N-type i-TOPCon monocrystalline technology with 108 cells and a power temperature coefficient of −0.29%/°C.
- 1.6mm heat-strengthened glass on both sides, with an anti-reflective coating on the front glass.
- Mechanical performance stated up to 5400Pa positive load and 2400Pa negative load, subject to the approved mounting arrangement.
- 30-year power guarantee showing 87.4% retained rated output at year 30.
Where to use
Suitable for professionally designed commercial and industrial rooftops, warehouses, logistics facilities, agricultural buildings and larger residential arrays. It can also be considered for carports and ground-mounted systems where the module dimensions, mounting arrangement and electrical characteristics suit the project.
Select mounting equipment compatible with the 30mm frame and Trinasolar’s approved fixing positions. Confirm inverter input-current limits, string voltage at the site’s minimum design temperature and the exact connector supplied. Mechanical load ratings do not replace a site-specific structural assessment.
Energian can help with panel quantities, mounting compatibility, inverter string design, DC protection and complete solar PV system planning. This panel is an installed system component, not a standalone power supply; installation can be arranged through trusted partners.
Technical specifications
| Product identification | |
|---|---|
| Manufacturer | Trinasolar |
| Product family | Vertex S+ |
| Datasheet model series | TSM-NEG18R.28 |
| Datasheet power range | 490–520W |
| Product power rating | 520W |
| Solar cell technology | N-type i-TOPCon monocrystalline |
| Module construction | Monofacial dual glass |
| Frame finish | Black |
| Electrical data — standard test conditions (STC) | |
| Peak power (Pmax) | 520Wp |
| Maximum power voltage (Vmpp) | 34.1V |
| Maximum power current (Impp) | 15.25A |
| Open-circuit voltage (Voc) | 41.2V |
| Short-circuit current (Isc) | 15.99A |
| Module efficiency | 23.4% |
| Power selection, table value | 0 to +5W |
| Power selection, datasheet footnote | Up to +3% |
| Measuring tolerance | ±3% |
| STC reference conditions | Irradiance 1000W/m²; cell temperature 25°C; air mass AM1.5 |
| Temperature ratings and application conditions | |
| Temperature coefficient of Pmax | −0.29%/°C |
| Temperature coefficient of Voc | −0.24%/°C |
| Temperature coefficient of Isc | +0.04%/°C |
| Operating temperature | −40°C to +70°C |
| Maximum system voltage | 1500V DC, IEC |
| Maximum series fuse rating | 30A |
| Mechanical data | |
| Number of cells | 108 |
| Module dimensions | 1961 × 1134 × 30mm |
| Module weight | 23.5kg |
| Front glass | 1.6mm / 0.06in; anti-reflective coating, heat-strengthened glass |
| Back glass | 1.6mm / 0.06in; heat-strengthened glass |
| Frame | 30mm / 1.18in anodised aluminium alloy, black |
| Junction box | IP68 rated |
| Cable type | Photovoltaic cable |
| Cable cross-section | 4.0mm² / 0.006in² |
| Connector options | MC4 EVO2 / TS4 Plus / TS4; regional specification applies |
| Mounting holes | 4 holes, 9 × 14mm |
| Mounting-hole spacing shown in drawing | 1300mm longitudinally; 1095mm transversely |
| Grounding holes | 8 holes, diameter 4.3mm |
| Drain holes | 8 |
| Frame section A–A, as shown | 30mm height; 28.5mm base width; 10mm upper dimension |
| Frame section B–B, as shown | 30mm height; 18mm base width; 10mm upper dimension |
| Positive mechanical load stated in datasheet | Up to 5400Pa |
| Negative mechanical load stated in datasheet | Up to 2400Pa |
| Product certifications and system standards listed in datasheet | |
| Module qualification and safety | IEC 61215; IEC 61730 |
| Salt mist corrosion testing | IEC 61701 |
| Ammonia corrosion testing | IEC 62716 |
| Quality management system | ISO 9001 |
| Environmental management system | ISO 14001 |
| Greenhouse gas emissions verification | ISO 14064 |
| Occupational health and safety management system | ISO 45001 |
| Warranty and power retention | |
| Product warranty | 15 years |
| Power guarantee | 30 years |
| First-year power degradation | 1% |
| Annual power attenuation after the first year | 0.4% |
| Power retention shown at year 1 | 99.0% |
| Power retention shown at year 30 | 87.4% |
| Warranty conditions | Refer to Trinasolar’s applicable product warranty for details |
