Trina Vertex S+ 460W N-Type Mono Dual Glass Full Black Solar Panels
- 460 W full-black N-type i-TOPCon solar panel with up to 23.0% module efficiency.
- Dual-glass construction and black anodised aluminium frame for residential and commercial rooftop systems.
- 25-year product workmanship warranty and 30-year power warranty from Trina Solar.

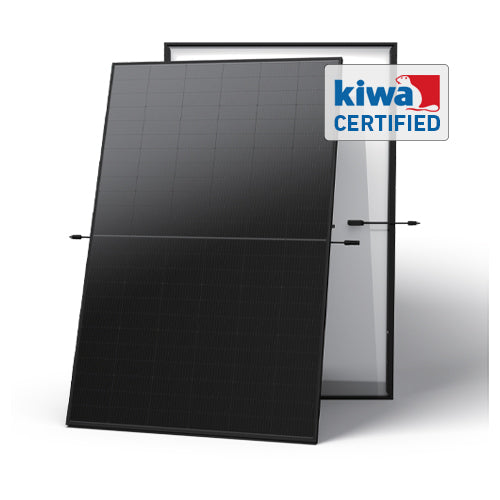

Trina Vertex S+ 460W full black solar panel
The Trina Vertex S+ TSM-460-NEG9R.28 is a 460 W N-type i-TOPCon monocrystalline solar panel with a full-black appearance and dual-glass construction. It provides high output from a 1,762 × 1,134 mm module, helping to maximise installed PV capacity where roof space is limited.
This model is suited to residential and commercial rooftops requiring a neat black finish, practical handling weight and compatibility with mainstream inverters, optimisers and mounting systems. Final string design must always be checked against the selected inverter and local minimum temperatures.
Key features
- 460 W rated output: Higher panel output can reduce the number of modules, roof fixings and electrical connections required for a given system size.
- 23.0% module efficiency: Delivers high power density within a 1,762 × 1,134 mm module format.
- N-type i-TOPCon cell technology: 144 N-type monocrystalline cells with multi-busbar and high-density interconnect technology.
- Full-black dual-glass construction: Features 1.6 mm heat-strengthened glass on both sides and a 30 mm black anodised aluminium alloy frame.
- Long-term warranty cover: 25-year product workmanship warranty and 30-year power warranty, subject to Trina Solar warranty terms.
Where to use
The Trina Vertex S+ 460W full black solar panel is suitable for domestic roofs, offices, retail units, workshops, commercial buildings and other residential or commercial rooftop solar PV installations. It can be used with compatible pitched-roof, flat-roof and ground-mount systems designed for its dimensions and approved clamping zones.
At 21.0 kg per module, this panel should be handled and installed by competent personnel. Use a compatible mounting system, approved clamps, suitable DC cable and correctly rated electrical protection equipment.
Energian can help with panel quantities, inverter and optimiser compatibility, mounting selection and complete system design. Where a system is not suitable for self-installation, we can support installation through trusted partners.
Technical specifications
| Manufacturer | Trina Solar |
| Series | Vertex S+ |
| Module model | TSM-460-NEG9R.28 |
| Module type | Dual-glass N-type i-TOPCon monocrystalline module |
| Rated maximum power (Pmax) | 460 W |
| Power tolerance | 0 to +5 W |
| Module efficiency | 23.0% |
| Maximum power voltage (Vmp) | 45.4 V |
| Maximum power current (Imp) | 10.14 A |
| Open-circuit voltage (Voc) | 53.8 V |
| Short-circuit current (Isc) | 10.81 A |
| STC test conditions | Irradiance 1,000 W/m², cell temperature 25°C, air mass AM 1.5 |
| Measurement tolerance | ±3% |
| Temperature coefficient of Pmax | -0.29%/°C |
| Temperature coefficient of Voc | -0.24%/°C |
| Temperature coefficient of Isc | 0.04%/°C |
| Solar cell type | N-type i-TOPCon monocrystalline |
| Number of cells | 144 cells |
| Module dimensions | 1,762 × 1,134 × 30 mm |
| Weight | 21.0 kg |
| Front glass | 1.6 mm anti-reflective coated heat-strengthened glass |
| Back glass | 1.6 mm heat-strengthened glass |
| Frame | 30 mm black anodised aluminium alloy |
| Junction box | IP68 rated |
| Output cables | 4.0 mm² photovoltaic cable; landscape: 1,100 mm / 1,100 mm; portrait: 280 mm / 350 mm |
| Connector | TS4 Plus / TS4 / MC4 EVO2; MC4 EVO2 special order only |
| Operating temperature | -40°C to +85°C |
| Maximum system voltage | 1,500 V DC (IEC) |
| Maximum series fuse rating | 25 A |
| Mechanical test load | 5,400 Pa snow load / 4,000 Pa wind load |
| First-year maximum degradation | 1% |
| Maximum annual degradation, years 2–30 | 0.4% |
| Guaranteed power at year 30 | 87.4% |
| Product workmanship warranty | 25 years |
| Power warranty | 30 years |
| Product certifications | IEC 61215, IEC 61730, IEC 61701 and IEC 62716 |
| Additional declarations | ISO 14067 Product Carbon Footprint Limited Assurance; ISO 14025 Environmental Product Declaration; EU-28 WEEE compliant recyclable packaging |
