Tigo Cloud Connect Advanced Kit (CCA) with TAP (Indoor)
- Monitor compatible Tigo TS4 module-level electronics and connect system data to Tigo SMART Monitoring.
- Includes an indoor Tigo Cloud Connect Advanced (CCA) data logger and Tigo Access Point (TAP) for wireless communication with TS4 units.
- Supports system commissioning through the Tigo SMART App, alongside Ethernet and Wi-Fi connectivity options.
Tigo CCA with TAP for module-level monitoring

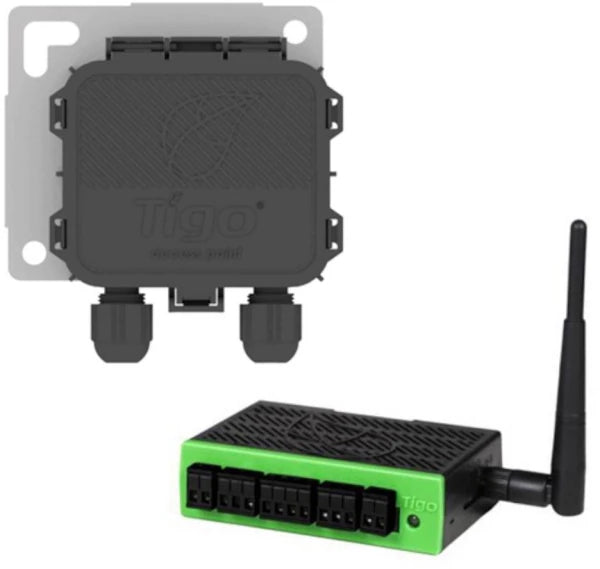

The Tigo Cloud Connect Advanced Kit (CCA) with TAP (Indoor) provides the communications hardware needed to collect data from compatible Tigo TS4 devices and send it to Tigo SMART Monitoring. It combines the indoor CCA data logger with a Tigo Access Point, which communicates wirelessly with TS4 units in the array.
The CCA connects to the TAP by wired RS485. The TAP then uses wireless mesh communication across the PV array, with TS4 units able to act as repeaters. This makes the kit suitable for installers and system owners who require module-level visibility, configuration and compatible monitoring integration.
Key features
- CCA supports up to 360 PV modules and can communicate with up to 7 Tigo Access Points (TAPs).
- TAP communicates directly with up to 300 TS4 units and supports wireless mesh communication.
- CCA supports Ethernet, Wi-Fi and optional cellular connectivity; cellular hardware is optional and sold separately.
- RS485 interfaces allow compatible third-party Modbus devices to be read and reported, including inverters, charge controllers, weather stations, smart combiner boxes and revenue-grade meters.
- Use the Tigo SMART App on iOS or Android for on-site configuration and commissioning.
Where to use
Use this Tigo CCA with TAP kit in compatible solar PV installations using Tigo TS4 module-level power electronics, where module-level monitoring and system communications are required. Typical applications include commercial rooftops, warehouses, logistics facilities and larger distributed PV systems.
The CCA is intended for indoor DIN-rail mounting. The TAP mounts at the solar array, attaching to a standard module frame without tools or with clips removed for rack mounting. Allow for the required RS485 connection between the CCA and TAP, suitable power supply, internet connection and correct TS4/TAP layout. For design, compatibility and commissioning support, please contact Energian or use a trusted installation partner.
Technical specifications
Cloud Connect Advanced (CCA)
| Capacity | Up to 360 PV modules per CCA |
| CCA input voltage | 6VDC–25VDC; 12VDC minimum when using gateways; 24VDC for 2 or more gateways |
| Input current | 1.8A maximum; internally protected and self-resetting |
| CCA power consumption | Typical with 1 gateway: less than 3W; maximum: 16W; 0.5W for each additional gateway; cellular option: 5W maximum |
| Available ports | RS485-1 and RS485-2 for inverter / AC meter / Modbus; USB 2.0 output, 5W, 1A |
| Ethernet interface | 10/100-BaseT with straight-through or crossover cable detection |
| Wireless interface | Wi-Fi, IEEE 802.11 b/g/n, 2.4GHz |
| CCA operating temperature | -20°C to +70°C |
| Cooling | Natural convection; no fans |
| Mounting | DIN-rail mountable enclosure |
| CCA dimensions (W × H × D) | 31mm × 115.51mm × 71.54mm, with housing and without antennas |
| CCA weight | 126g, CCA with housing |
| CCA weight with modem | 0.158kg, CCA with housing and modem |
| Mobile app | Tigo SMART App for iOS and Android; direct Wi-Fi connection to CCA |
| Indicator | Multi-function LED indicator: red, green and orange |
Tigo Access Point (TAP)
| TS4 communication capacity | Up to 300 TS4 units directly |
| CCA communication capacity | Up to 7 TAPs per CCA |
| Communication | Wireless mesh communication between TAP and TS4 units; wired RS485 connection between TAP and CCA |
| TS4 spacing for mesh communication | TS4 units should be no more than 10m apart; stated total TAP range including hops is 35m |
| Input voltage | 5VDC–25VDC |
| Power consumption | 0.5W average; 1W peak |
| Dimensions | 126.2mm × 130.0mm × 26.8mm, with bracket |
| Weight | 227g |
| Operating temperature | -40°C to +85°C |
| Protection class | IP68 |
| Connector type | MC4 |
