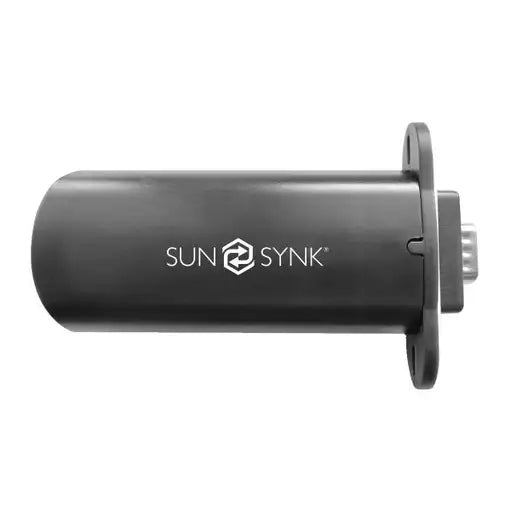

Sunsynk Connect IPX7 Wi-Fi Data Logger
- Monitor solar generation, battery status, grid use and connected loads remotely through Sunsynk Connect.
- Connect a compatible Sunsynk inverter to your Wi-Fi network for online system visibility.
- IPX7-rated logger with a black finish and direct DB9 inverter connection.
Sunsynk Connect Wi-Fi Data Logger
The Sunsynk Connect IPX7 Wi-Fi Data Logger links a compatible Sunsynk inverter to the Sunsynk monitoring platform, helping you check system performance without visiting the inverter. View operating data, energy-flow diagrams and system events through the app or web portal. Authorised users can also access supported inverter settings and firmware-management functions, subject to account permissions.
Key features
- Remote visibility of solar generation, battery status, grid and load statistics.
- Wi-Fi connection to the Sunsynk Connect monitoring platform.
- IPX7 protection rating, with a flame-retardant and anti-UV housing.
- Access to inverter settings and remote firmware functions for appropriately authorised accounts.
- Operational data export in XLSX format through the web management platform.
Where to use
Suitable for compatible Sunsynk installations at homes, offices, workshops and commercial premises where owners or installers need remote access to system performance. It can also help an authorised installer review operating data and investigate reported system events without an initial site visit.
Check the inverter model and monitoring connector before ordering. This listing is for the Wi-Fi logger; Ethernet connectivity must not be assumed, as Sunsynk also offers separate Wi-Fi/LAN variants. An internet-connected Wi-Fi network and a Sunsynk account are required for online monitoring.
The logger plugs into the inverter’s DB9 interface and is secured with the two supplied screws. Network configuration and device registration are still required. For an existing system, replacement logger or permissions setup, contact our UK team; we can suggest support through trusted installation partners where needed.
Technical specifications
| Specification | Details |
|---|---|
| Brand | Sunsynk |
| Product | Sunsynk Connect Wi-Fi Data Logger |
| Reference retailer product code | SUNSYNK-LOGGER-WIFI |
| Network connection | Wi-Fi |
| Inverter connection | DB9 interface on a compatible inverter |
| Fixing method | Two supplied screws; Phillips screwdriver used for tightening |
| Protection rating | IPX7 |
| Housing characteristics | Flame-retardant and anti-UV |
| Colour / finish | Black |
| Monitoring platform | Sunsynk Connect app and web management platform |
| Web portal | Sunsynk web monitoring portal |
| Wi-Fi setup network | EAP-*****; the final five characters correspond to the last five digits of the logger serial number, as described in the supplied manual |
| Local setup address | 10.10.10.1, as described in the supplied manual |
| Device registration | Logger serial number (SN) and KEY from the device label |
| Monitoring information | Solar generation, battery status, grid and load statistics; inverter status, energy-flow diagrams, operating charts and system events |
| Remote inverter settings | Battery, timer, grid, auxiliary load output, basic and advanced settings, where supported and permitted by the account access level |
| Firmware management | Remote upgrade functions subject to user permissions and supported inverter functionality |
| Operational data export | XLSX file download through the web platform |
| Account and plant management | Plant creation, device addition, sharing and transfer; gateway and inverter management; role-based access controls |
| Supplied documentation reference | Data Logger User Guide, version 6, dated 28 July 2022; screens and procedures may differ on later hardware or software |
