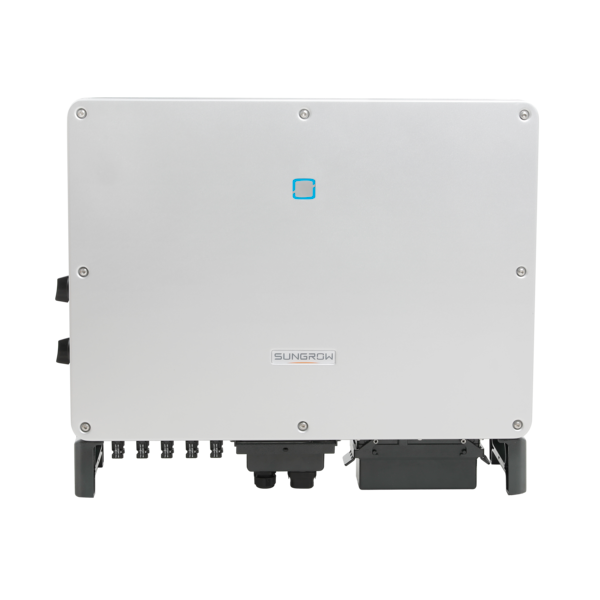

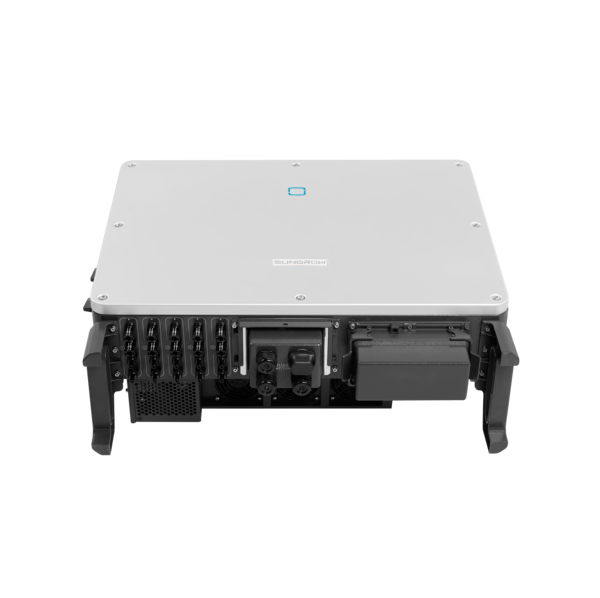

Sungrow SG40CX-P2 40kW Commercial 3-Phase Solar Inverter
Multi-MPPT string inverter for 1000 Vdc commercial PV systems – 40 kW AC, 4 independent MPPTs, IP66, C5 anti-corrosion.
Why specify the Sungrow SG40CX-P2
- More yield from awkward roofs – 4 independent MPPTs with a dynamic shading optimisation mode help recover output on split orientations and partly shaded arrays.
- Faster, cheaper installs – at 40 kg with a plug-and-play buckle mounting design, two engineers can lift and hang it without a hoist.
- Built for UK commercial sites – IP66 enclosure, C5 anti-corrosion rating and a –30 °C to 60 °C operating range suit warehouses, farms, factories and coastal logistics depots.
Overview
The Sungrow SG40CX-P2 is a transformerless three-phase string inverter rated at 40 kW AC for commercial and industrial rooftop and ground-mount PV systems up to 56 kWp. It accepts up to 8 strings across 4 MPPTs, supports modules above 500 W with a 15 A per-string input, and includes DC Type I+II and AC Type II surge protection plus AFCI 2.0 as standard.
Key features
- 4 MPPTs, 2 strings per MPPT, 15 A per-string – compatible with high-current bifacial and 500 W+ modules.
- 98.5% maximum efficiency, 98.3% European efficiency.
- Smart IV curve diagnosis, PID recovery and grid fault recording for remote operations and maintenance.
- G99 compliant for UK grid connection; supports LVRT, HVRT, active/reactive power control and Q at night.
- Wall-mounted, smart forced-air cooling, LED indicator with Bluetooth + app commissioning; RS485 standard, WLAN/Ethernet optional.
Technical specifications
| Recommended max. PV input power | 56 kWp |
| Max. PV input voltage | 1100 V |
| Min. PV input voltage / Startup input voltage | 160 V / 200 V |
| Rated PV input voltage | 600 V |
| MPPT voltage range | 160 V – 1000 V |
| No. of independent MPP inputs | 4 |
| No. of PV strings per MPPT | 2 |
| Max. PV input current | 120 A (30 A × 4) |
| Max. DC short-circuit current | 160 A (40 A × 4) |
| Max. current for DC connector | 30 A |
| Output (AC) | |
|---|---|
| Rated AC output power | 40 kW |
| Max. AC output apparent power | 44 kVA |
| Max. AC output current | 66.9 A |
| Rated AC output current (at 230 V) | 58 A |
| Rated AC voltage | 3 / N / PE, 220 / 380 V, 230 / 400 V |
| AC voltage range | 312 V – 480 V |
| Rated grid frequency | 50 Hz / 60 Hz |
| Grid frequency range | 45 Hz – 55 Hz / 55 Hz – 65 Hz |
| Harmonic (THD) | < 3% (at rated power) |
| Power factor / Adjustable power factor | > 0.99 / 0.8 leading – 0.8 lagging |
| Feed-in phases / AC connection | 3 / 3-N-PE |
| Efficiency | |
| Max. efficiency / European efficiency | 98.5% / 98.3% |
| General data | |
| Dimensions (W × H × D) | 645 mm × 575 mm × 245 mm |
| Weight | 40 kg |
| Mounting method | Wall-mounting bracket |
| Topology | Transformerless |
| Degree of protection | IP66 |
| Night power consumption | < 7 W |
| Corrosion | C5 |
| Operating ambient temperature range | –30 °C to 60 °C |
| Allowable relative humidity (non-condensing) | 0% – 100% |
| Cooling method | Smart forced air cooling |
| Max. operating altitude | 4000 m |
| Display | LED, Bluetooth + APP |
| Communication | RS485 / Optional: WLAN, Ethernet |
| DC connection type | Evo2 (max. 6 mm²) |
| AC connection type | OT terminal (16–35 mm²) |
| AC cable specification | Outside diameter 18 mm – 38 mm |
| Grid compliance | IEC 62109, IEC 61727, IEC 62116, VDE-AR-N 4105:2018, IEC 61000-6-3, EN 50549-1, CEI 0-21 2019, CEI 0-16 2019, VDE 0126-1-1/A1, VFR 2019, UTE C15-712-1:2013, UNE 206007-1/RD 1699, UNE 217002, G99, IEC 63027 |
| Grid support | Q at night function, LVRT, HVRT, active & reactive power control, power ramp rate control |
Documents available for download
- Sungrow SG36/40/50CX-P2 datasheet (PDF)
- Sungrow SG25/30/33/36/40/50CX-P2 user manual (PDF)
- Quick installation guide (PDF)
Installation
The SG40CX-P2 is a commercial three-phase grid-tied inverter and must be installed and commissioned by a qualified electrical contractor with G99 application sign-off. Energian works with trusted UK installation partners – contact us before ordering and we'll match you with an installer in your area or scope the job remotely from your single-line diagram.
