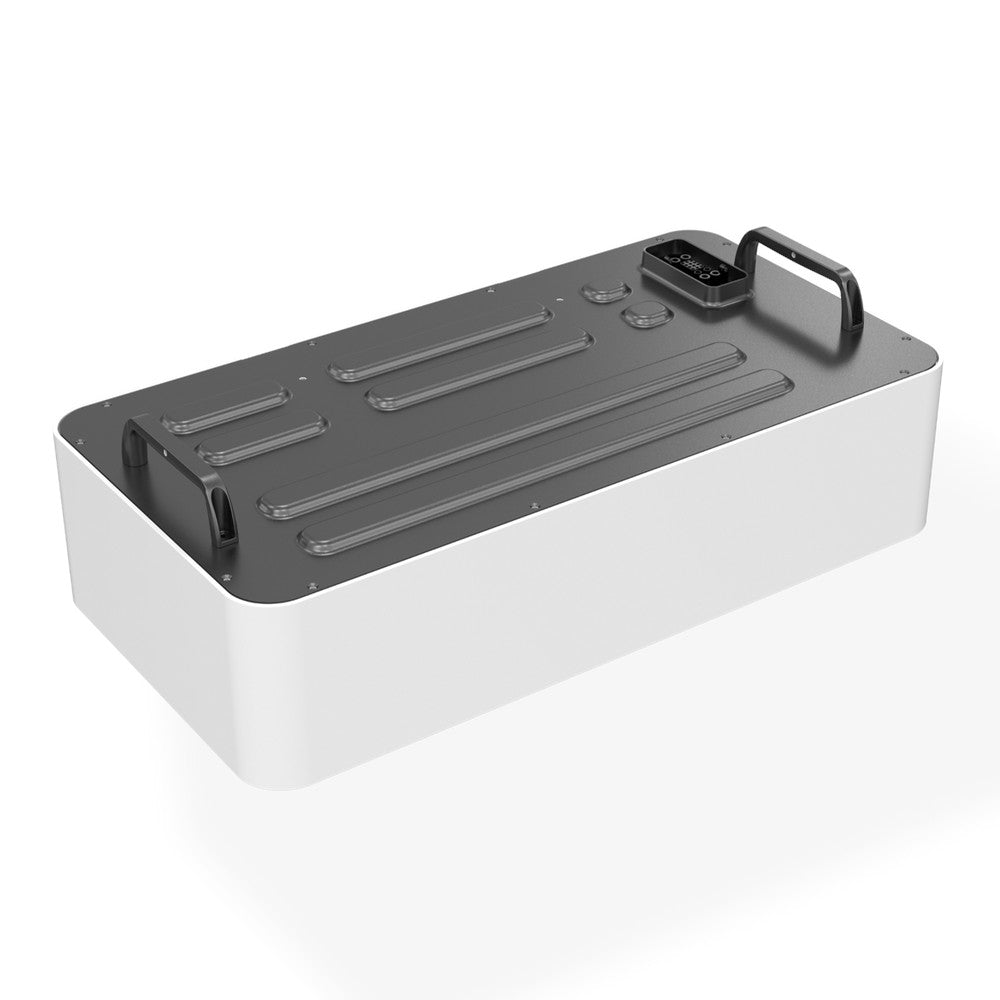

Sungrow SBH 5kWh Stackable High Voltage Battery Module

  • 5kWh high voltage LiFePO4 battery module for building 10–40kWh Sungrow SBH100–400 stacks to support commercial and industrial backup, peak shaving and self-consumption.
  • Stackable, plug-in design with no inter-module cabling for fast on-site installation and easy future expansion.
  • High usable energy with up to 100% depth of discharge and multi-stage protection for long service life and safety.

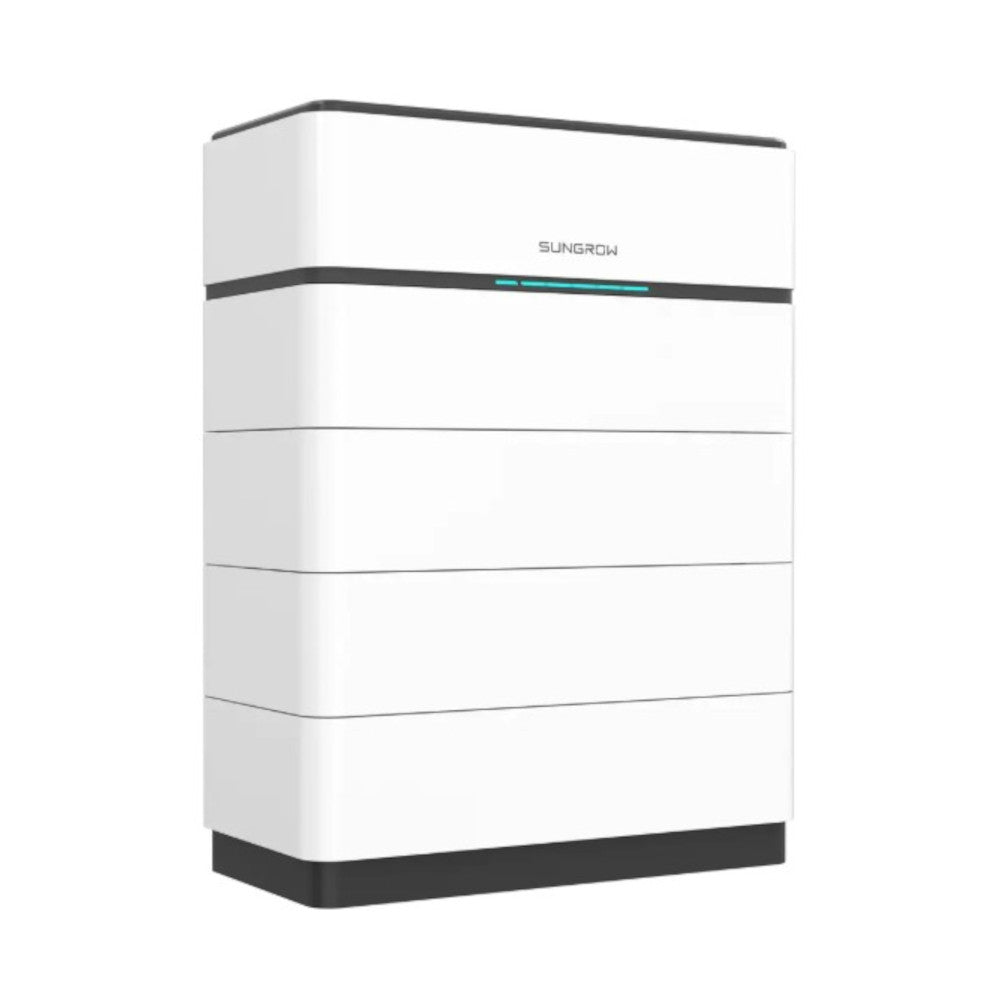

The Sungrow SBH 5kWh Stackable High Voltage Battery Module is the building block of the SBH100–400 series, allowing you to assemble 10–40kWh high voltage battery stacks for three-phase hybrid systems. Each 5kWh LiFePO4 module locks mechanically into the base and neighbouring modules, providing a neat, floor-standing solution for logistics hubs, light industrial sites and commercial buildings that need reliable battery storage alongside Sungrow hybrid inverters.

Key features

  • 5kWh lithium iron phosphate (LiFePO4) prismatic cell module forming part of 10–40kWh high voltage stacks.
  • Up to 50A continuous charge/discharge current per stack, with 8 modules delivering system power up to 28kW.
  • Up to 100% usable energy with settable depth of discharge for project-specific requirements.
  • Plug-and-play stacking concept: no separate DC cables needed between battery modules.
  • Floor-standing, IP55-rated system suitable for indoor and outdoor installations in commercial environments.

Technical specifications

System data (SBH100–400 stack)

  • Battery type: LiFePO4 Prismatic Cell.
  • Battery module: 5.0kWh, 45kg.
  • Max. charging/discharging current (continuous): 50A.
  • Depth of discharge: Max. 100% DOD (settable).
  • Short circuit current: 3500A.
  • Display: SOC indicator, Status indicator.
  • Communication interface: CAN.
  • Protection – over/under voltage protection: Yes.
  • Protection – over current protection: Yes.
  • Protection – over/under temperature protection: Yes.
  • Protection – DC breaker: Yes.

Stack configurations

  • Battery stack from 10kWh to 40kWh consists of 2-8 modules and
  • SBH100 – 2 modules, 10.0kWh usable energy, 140.8V nominal voltage, 7.04kW rated DC power, operating voltage 118.8V–160.6V, dimensions 675 × 580 × 350mm, weight 106kg.
  • SBH150 – 3 modules, 15.0kWh usable energy, 211.2V nominal voltage, 10.56kW rated DC power, operating voltage 178.2V–240.9V, dimensions 675 × 740 × 350mm, weight 151kg.
  • SBH200 – 4 modules, 20.0kWh usable energy, 281.6V nominal voltage, 14.08kW rated DC power, operating voltage 237.6V–321.2V, dimensions 675 × 900 × 350mm, weight 196kg.
  • SBH250 – 5 modules, 25.0kWh usable energy, 352.0V nominal voltage, 17.60kW rated DC power, operating voltage 297V–401.5V, dimensions 675 × 1060 × 350mm, weight 241kg.
  • SBH300 – 6 modules, 30.0kWh usable energy, 422.4V nominal voltage, 21.12kW rated DC power, operating voltage 356.4V–481.8V, dimensions 675 × 1220 × 350mm, weight 286kg.
  • SBH350 – 7 modules, 35.0kWh usable energy, 492.8V nominal voltage, 24.64kW rated DC power, operating voltage 415.8V–562.1V, dimensions 675 × 1380 × 350mm, weight 331kg.
  • SBH400 – 8 modules, 40.0kWh usable energy, 563.2V nominal voltage, 28.16kW rated DC power, operating voltage 475.2V–642.4V, dimensions 675 × 1540 × 350mm, weight 376kg.

General data

  • Installation location: Indoor / Outdoor.
  • Mounting method: Floor stand.
  • Operating ambient temperature range: Charge: 0°C – 50°C; Discharge: −20°C – 50°C.
  • Degree of protection: IP55.
  • Allowable relative humidity range: 0% – 95% non-condensing.
  • Max. operating altitude: Max. 2000m.
  • Cooling method: Natural convection.
  • Certificates: CE, CEC, IEC 62619, IEC 62040, UN 38.3, VDE 2510-50, IEC 62477, IEC 63056.
  • Warranty: 10 Years (refer to battery warranty letter for conditional application).
  • Test conditions for ratings: 25°C, 100% depth of discharge (DOD), 0.2C charge and discharge.

Shipping and UK expert support

Shipping is available to the UK, Ireland, Africa, the Caribbean and worldwide. If the shipping rate is not shown at checkout, please contact us on +44 2080640335 or info@energian.co.uk for a quote.

The Sungrow SBH 5kWh stackable high voltage battery module is designed to be installed as part of a matched Sungrow SBH100–400 system and compatible hybrid inverter. Energian recommends installation and commissioning by a suitably qualified electrician or trusted installer partner to meet UK wiring regulations and manufacturer requirements.

UK expert support is available – contact us by phone, email or live chat, or visit our office for in-person consultation on system design, battery sizing, Sungrow hybrid inverter pairing and project integration for logistics, commercial and industrial sites.
