Solis IntelliHome 16kWh - 128kWh LiFePO₄ Battery System
- Begin with 16kWh of low-voltage battery storage and expand to a maximum nominal 128kWh with up to eight IntelliHome 16kWh batteries in parallel.
- IP66-rated LiFePO₄ battery with 100% depth of discharge, suitable for wall- or floor-mounted compatible Solis energy-storage systems.
- Designed to store surplus solar generation for later use in homes, workshops, small commercial premises and specified backup-power systems.

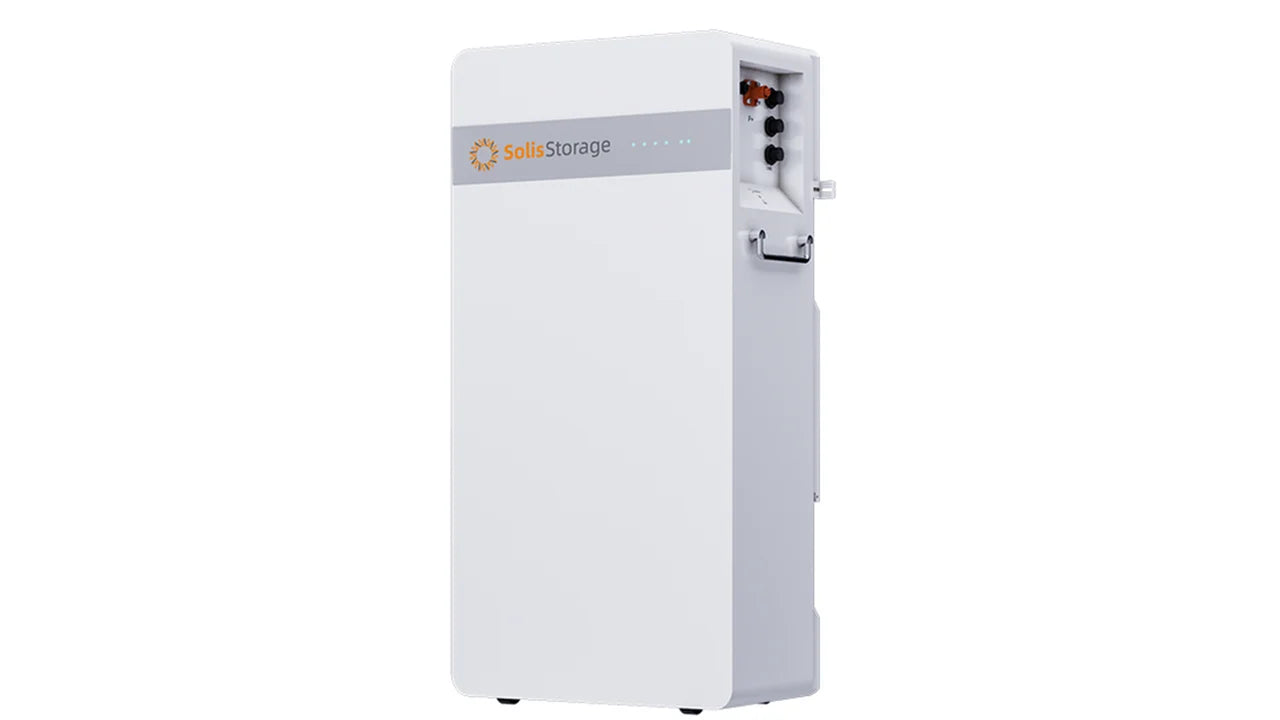

Solis IntelliHome 16kWh battery
The Solis IntelliHome 16kWh is a low-voltage LiFePO₄ battery for compatible Solis hybrid inverter systems. A single battery provides 16kWh nominal capacity, while parallel installation of up to eight matching units allows a battery bank of up to 128kWh nominal capacity.
It provides a scalable route for storing solar energy for evening, overnight or high-tariff periods. It is not a standalone power source: a compatible inverter, correctly rated DC protection, cabling, commissioning and professionally designed installation are required.
Key features
- 16kWh nominal LiFePO₄ battery capacity, with up to eight batteries supported in parallel.
- 44.8–57.6V operating voltage and 314Ah rated cell capacity.
- 157A recommended charge/discharge current and 157A maximum sustainable charge/discharge current.
- IP66 enclosure with natural cooling, CAN and RS485 communications.
- More than 6,000 cycles / 10-year cycle-life specification under the stated manufacturer test conditions.
Where to use
- Solar self-consumption systems using a compatible Solis low-voltage hybrid inverter.
- Workshops, small warehouses, commercial units and offices that want to retain more on-site solar generation.
- Sites where storage capacity is expected to increase in phases, rather than being installed in one large bank.
- Essential-load or backup-power systems where supported by the selected inverter and electrical system design.
For example, one 16kWh battery can form the initial storage capacity for a solar-equipped workshop. Additional matching batteries may be added as demand grows, provided that the inverter, battery-bank architecture and site load profile have been checked. Energian can assist with sizing and connection to a trusted UK installation partner.
Technical specifications
| Battery type | LiFePO₄ |
| Nominal capacity | 16kWh |
| Expansion capability | Up to 8 units in parallel; maximum 128kWh nominal capacity |
| Operating voltage | 44.8–57.6V |
| Rated cell capacity | 314Ah |
| Recommended charge/discharge rate | 0.5C |
| Recommended charge/discharge current | 157A |
| Maximum sustainable charging current | 157A |
| Maximum sustainable discharge current | 157A |
| Depth of discharge | 100% |
| Charging temperature range | -20°C to 55°C, with heating function; derating above 45°C |
| Discharging temperature range | -20°C to 55°C; derating above 45°C |
| Recommended operating temperature | 10°C to 45°C |
| Communication interface | CAN / RS485 |
| Cycle life | >6,000 cycles / 10 years* |
| Cooling method | Natural cooling |
| Ingress protection | IP66 |
| Installation method | Floor-mounted / wall-mounted (default) |
| Dimensions (W × H × D) | 470 × 950 × 240mm |
| Weight | 126kg |
| Maximum operating altitude | ≤4,000m; derating above 2,000m |
| Operating ambient humidity | 5–95% RH |
| Certifications and safety standards | IEC 62619, IEC 63056, ISO 13849, VDE 2510-50, UN 38.3, EN/IEC 61000-6-1/2/3/4, IEC 60730-1, IEC 60529 (IP) |
*Manufacturer test condition: 25°C, 0.5C charge / 0.5C discharge, 70% end of life at 100% depth of discharge. Confirm final inverter compatibility, battery quantity, fuse or breaker ratings and permitted parallel configuration before ordering.
