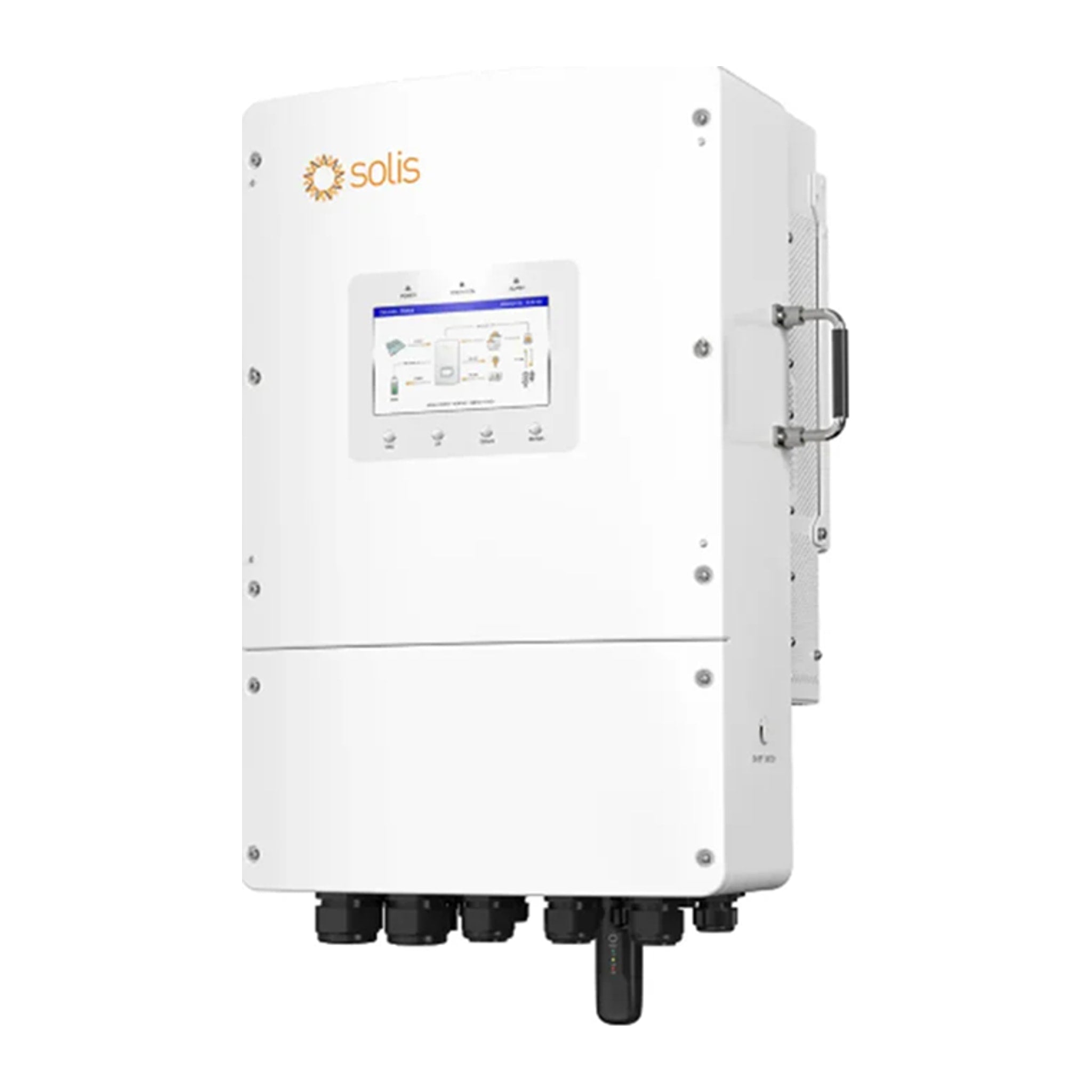

Solis S6-EH3P10K-NV-YD-L-UK 10kW Three Phase Low Voltage Hybrid Inverter
A 10kW three-phase hybrid inverter for 48V-class battery storage, solar self-consumption and backup power. Supplied under the UK SKU S6-EH3P10K-NV-YD-L-UK, corresponding to manufacturer model S6-EH3P10K02-NV-YD-L.
Key Features
- 10kW three-phase grid and backup output with 200% overload capability for 10 seconds.
- Two MPPTs with three PV string inputs and up to 16kW usable PV input.
- 40–60V battery range with up to 220A total charge/discharge current for the 10kW model.
- Generator integration, smart-load management and AC/DC coupling for flexible system designs.
- IP66 enclosure, intelligent fan cooling and a 7-inch LCD with Bluetooth.
Where to Use
For larger homes and light-commercial sites with a three-phase supply and compatible low-voltage batteries. Suitable for designed backup and off-grid systems with optional generator support.
Technical Specifications
| UK supplier SKU | SOL-S6-EH3P10K-NV-YD-L-UK |
| Manufacturer model | S6-EH3P10K02-NV-YD-L |
| Rated AC / backup output | 10kW / 10kW |
| AC supply | Three phase, 380/400V, 50/60Hz |
| Battery type / voltage | Compatible Li-ion or lead-acid / 40–60V |
| Maximum total battery charge/discharge current | 220A |
| Battery ports | 2 |
| MPPTs / PV string inputs | 2 / 3 |
| Recommended maximum PV array / usable PV input | 20kW / 16kW |
| Maximum PV voltage | 1,000V |
| MPPT voltage range | 200–850V |
| Maximum PV input current | 20A / 40A |
| Maximum power per phase | 50% of rated inverter power |
| Backup transfer time | Less than 10ms |
| Maximum efficiency | 97.5% |
| Dimensions (W × H × D) | 430 × 660 × 305mm |
| Weight (manufacturer datasheet) | 42kg |
| Ingress protection | IP66 |
Installation & Compatibility
- The 10kW model is rated at 220A total battery current. The 290A figure applies to the 15kW model.
- Battery, PV panels and generator are not included. Use Solis-approved battery combinations and correctly sized cabling and protection.
- Generator and backup operation require installer configuration. Grid-parallel connection is subject to applicable UK/DNO requirements.
UK delivery available. Please confirm delivery timing with Energian before scheduling installation.
Documents available for download:
User and installation manual, V1.3 (August 2025)
The full user manual includes installation, wiring and commissioning instructions.
