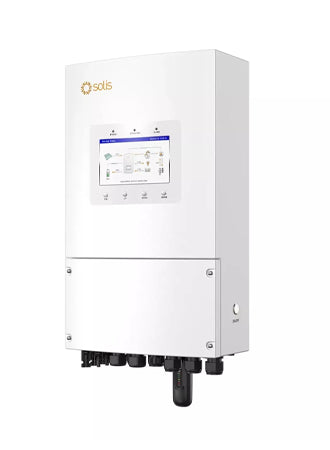

Solis S6-EH1P3K-L-PLUS 3kW Single Phase Low Voltage Hybrid Inverter
A compact 3kW hybrid inverter for solar generation, 40–60V battery storage and backup power. The S6 Plus combines two MPPTs with flexible energy management for residential systems.
Key Features
- 3kW rated AC and backup output, with 200% backup overload capability for 10 seconds.
- Two independent MPPTs, each rated at 16A, for flexible solar array layouts.
- Supports compatible low-voltage lithium-ion and lead-acid batteries.
- Generator connection, smart-load control and AC coupling for suitable system designs.
- IP66 enclosure, natural cooling and a 7-inch LCD with Bluetooth commissioning.
Where to Use
For single-phase homes requiring solar self-consumption, timed battery charging and essential-load backup. Off-grid and generator applications require a correctly designed system.
Technical Specifications
| Model | S6-EH1P3K-L-PLUS |
| Supplier SKU | SOL-S6-EH1P3K-L-PLUS-5Y |
| Rated AC / backup output | 3kW / 3kW |
| AC supply | Single phase, 220/230V, 50/60Hz |
| Battery voltage | 40–60V |
| Maximum battery charge/discharge current | 70A |
| MPPTs / PV string inputs | 2 / 2 |
| Recommended maximum PV array / usable PV input | 6kW / 4.8kW |
| Maximum PV voltage | 500V |
| MPPT voltage range | 90–435V |
| Maximum PV input current | 16A per MPPT |
| Backup transfer time | Less than 10ms |
| Maximum efficiency | 96.2% |
| Dimensions (W × H × D) | 335 × 560 × 253mm |
| Weight | 23kg |
| Ingress protection | IP66 |
Installation & Compatibility
- Battery, solar panels and generator are not included. Only use battery combinations approved by Solis.
- Backup output depends on battery capability, state of charge and installation design. Installation and grid connection must meet applicable UK requirements.
UK delivery available. Please confirm delivery timing with Energian before scheduling installation.
Documents available for download:
User and installation manual, V1.3 (April 2026)
The full user manual includes installation, wiring and commissioning instructions.
