Solis All in One Hybrid Energy System with 50.0kW Inverter and 100kWh LFP Battery


By Solis
More details Right

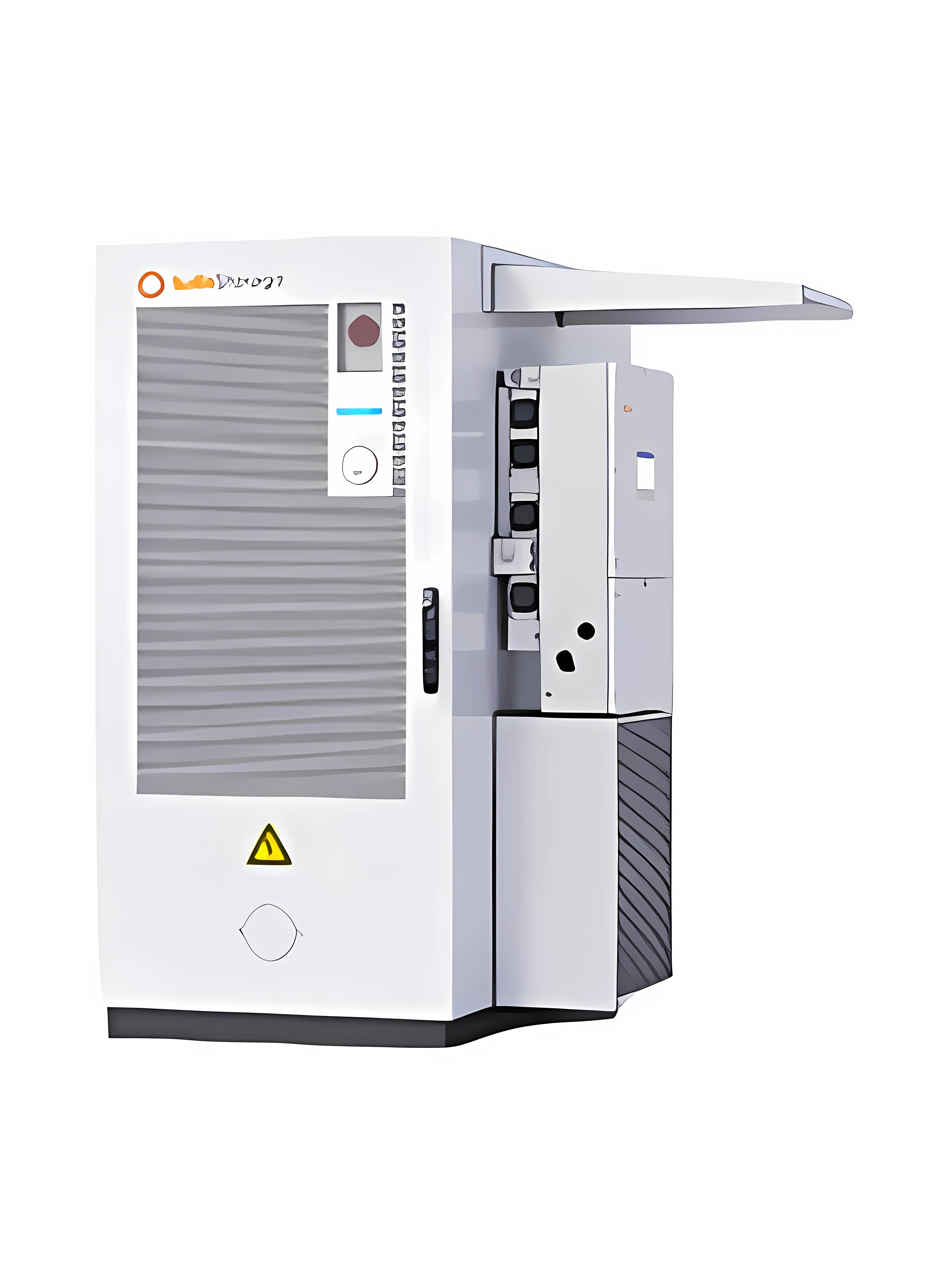

Solis All-in-One Off‑grid Hybrid Energy System – 50kW Inverter with 100kWh LFP Battery

  • 50kW three‑phase hybrid inverter with 100.5kWh LFP battery storage in a single C5 PRO outdoor cabinet for commercial and industrial sites.
  • Fast off‑grid/on‑grid switching (<10ms) to keep critical logistics and commercial loads running.
  • Factory‑integrated system with air‑conditioned C5 PRO battery cabinet, IP55/IP66 protection and multi‑layer fire safety for demanding UK and global applications.

Brief description

This Solis All‑in‑One off‑grid hybrid energy system combines a 50kW three‑phase S6‑EH3P50K‑H inverter with a 100kWh EverCore LFP battery cabinet, delivered as a pre‑assembled C&I energy storage solution. It is designed for PV self‑consumption, peak‑shaving and backup power, with support for up to 100kW of DC‑coupled solar and rapid transfer between grid‑tied and islanded operation.

Key features

  • All‑in‑one hybrid system: integrated 50kW three‑phase hybrid inverter and 100.5kWh rated LFP C5 PRO battery cabinet with built‑in EMS and BMS.
  • Usable battery energy: 99.3kWh usable capacity (LFP 3.2V / 314Ah cells, 5 packs of 20.1kWh).
  • PV‑ready design: up to 100kW DC PV input, 4 MPPT / 8 strings, 1000V max input voltage and wide MPPT range for flexible array layouts.
  • Industrial‑grade thermal management: air‑conditioned cabinet, air‑cooled packs and intelligent fan‑cooled inverter for stable operation from ‑25°C to +55°C.
  • Safety and protection: IP55 cabinet and IP66 inverter, aerosol fire suppression, Type II surge protection on AC, PV and battery, plus comprehensive electrical protection modes.

Where to use

This 50kW / 100kWh Solis All‑in‑One off‑grid hybrid energy system is well suited to commercial and industrial sites that need a compact, outdoor‑rated storage and backup solution. Typical applications include logistics hubs, warehousing, light manufacturing, data and telecom rooms, retail and hospitality sites, and small business parks where continuity of supply and bill management are important.

The system can support PV‑coupled off‑grid microgrids, backup power for critical loads, and peak‑shaving against import tariffs, with parallel capability for larger projects when engineered appropriately. For UK projects, Energian can arrange installation via trusted specialist partners and provide design support to integrate the unit into new or existing PV systems, generators and site LV distribution.

Technical specifications

Model

  • 100kWh‑50kW

System

  • Rated energy capacity: 100.5kWh
  • Max. cycle rate: 0.5P
  • Max. cycle efficiency: 89%
  • Usable energy capacity: 99.3kWh
  • Dimensions (W × H × D): 1250 × 2030 × 1540mm
  • Dimensions (without inverter) (W × H × D): 950 × 2030 × 1540mm
  • Weight: 1490kg (Cabinet) + 73kg (Inverter)
  • Operating temperature range: ‑25 ~ +55°C
  • Storage temperature range: 0 ~ +40°C
  • Operating humidity range: ≤95% (non‑condensing)
  • Max. operation altitude: 4000m
  • System temperature control mode: Industrial‑grade air‑conditioning (Cabinet); Air cooling (Pack); Intelligent fan‑cooling (Inverter)
  • Fire suppression mode (default): Aerosol, Explosion relief valve, Fire water inlet, Audible and visual alarm
  • Fire suppression mode (optional): Flammable gas detector, Explosion relief panel, Explosion‑proof exhaust fan
  • Ingress protection: IP55 (Cabinet) + IP66 (Inverter)
  • Anti‑corrosion class (Battery Cabinet): C5 PRO
  • Anti‑corrosion class (Inverter): C5
  • Noise (rated operating condition): 70dB(A) @ 1m / 75dB(A) @ 1m
  • Lightning protection: Type II (AC port), Type II (PV & Battery)
  • Protection mode: Anti‑islanding protection, residual current detection, insulation resistance detection, AC overcurrent protection, and AC cable connection protection
  • Certification standards: IEC62619, IEC61000‑6/2/4, IEC62040, IEC63056, IEC62477, UN38.3

Battery

  • Cell type: LFP 3.2V / 314Ah
  • Cell cycle life: 8000
  • System battery configuration: 1P100S
  • Rated voltage: 320V
  • Operating voltage range: 290 ~ 360V
  • Rated DC current: 157A
  • Number of battery packs: 5
  • Battery pack capacity: 20.1kWh
  • Battery pack weight: 138kg

Inverter

  • Inverter model: S6‑EH3P50K‑H(21A)
  • Rated output power: 50kW
  • Max. apparent output power @ On‑grid: 50kVA
  • Rated grid voltage: 3/N/PE, 220V / 380V; 3/N/PE, 230V / 400V
  • Rating grid frequency: 50Hz / 60Hz
  • AC grid frequency range: 45–55Hz / 55–65Hz
  • Rated output current: 76A
  • Max. apparent output power @ Off‑grid: 1.5 times of rated power, 10s; 1.6 times of rated power, 2s; 1.6 times of rated power, 200ms
  • Back‑up switch time: <10ms
  • Power factor: >0.99 (0.8 leading ‑ 0.8 lagging)
  • THDi / THDv (@ linear load): <2% / <3%
  • Max. usable PV input power: 100kW
  • Recommended max. PV array size: 100kW
  • Max. input voltage: 1000V
  • Rated voltage: 600V
  • Start‑up voltage: 180V
  • MPPT voltage range: 150–850V
  • Max. input current: 4 × 42A
  • Max. short circuit current: 4 × 60A
  • MPPT number / Max. input strings number: 4 / 8
  • Communication (option set 1): Standard – WIFI+LAN+Bluetooth, CAN‑BMS×2, CAN‑Parallel×2, RS485‑Meter, RS485, DRM, DI×3, DO×3; Optional – 4G
  • Communication (option set 2): Standard – WIFI+LAN+Bluetooth, CAN‑BMS×2, CAN‑Parallel×2, RS485‑Meter, RS485, DRM, DI×5, DO×4; Optional – 4G
  • Max. parallel quantity (off‑grid): 10

Preliminary notes

  • ① Rated operating condition: Based on cell test condition of 25±2°C, 0.5P charge and discharge rate, and the AC output voltage is 380 or 400Vac.
  • ② 30°C–35°C, 0.3C, 100%DOD, within one month from the date of manufacture.
  • ③ This is provided by the battery cell manufacturer. Based on cell test condition of 25±2°C, 0.5P charge and discharge rate and SOH=70%.

Documents available for download

  • SolisStorage EverCore (100–261)kWh (50–125)kW NV – Global Datasheet V1.6 (Preliminary) – Download datasheet
  • Solis EverCore 100kWh‑50kW System – Installation/User Manual – Download manual

Shipping & support

Shipping is available to the UK, Ireland, Africa, the Caribbean and worldwide. If the shipping rate is not shown at checkout, please contact us on +44 2080640335 or info@energian.co.uk for a tailored quote.

UK expert support is available – contact Energian with any questions or support requests via phone, email or live chat, or visit our office for an in‑person consultation. For this Solis All‑in‑One off‑grid hybrid energy system we recommend installation by trusted specialist partners to ensure correct design, commissioning and compliance with applicable standards.
