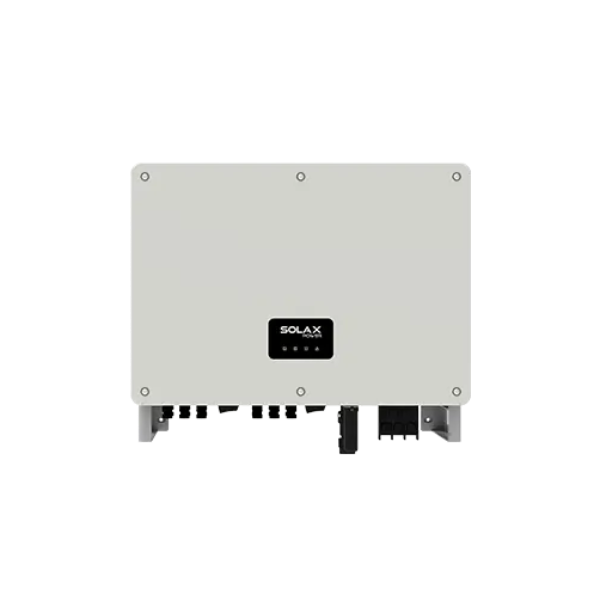

SolaX X3 MEGA G2 50kW 3-Phase Inverter
Key benefits
- 50kW three phase string inverter for larger commercial roofs, carports and C&I ground‑mount sites where reliable grid‑tied solar generation is required.
- Up to 150% PV oversizing and 110% overloading output to maximise yield and make better use of available roof or site area.
- Up to six MPPTs with two strings per tracker, giving flexibility for complex layouts, multiple orientations or partial shading.
Brief description
The SolaX X3 MEGA G2 50kW Three Phase Inverter is part of the X3‑MEGA G2 commercial range covering 40kW, 50kW and 60kW models. It offers a wide 180–1000V MPPT range, high efficiency and smart air cooling, making it suitable for medium and large commercial roofs, agricultural buildings and small solar farms. Built‑in export power control, remote configuration and Smart I‑V Curve Diagnosis help installers and operators manage performance and maintenance over the system lifetime.
Key features
- Maximum efficiency up to 98.4% with European efficiency of 98.1% for strong energy harvest on three phase systems.
- Rated 50kW AC output with up to 55kVA apparent power and up to 100A maximum AC output current depending on grid voltage.
- DC input up to 1100V, 180–1000V MPPT range, five MPPTs and two strings per tracker on the 50kW model.
- Fuse‑free design with smart string current monitoring and optional Smart I‑V Curve Diagnosis for easier troubleshooting.
- IP66 enclosure, Type II AC/DC surge protection as standard, with optional Type I+II SPD and AFCI for higher protection levels.
Technical specifications
DC input
| Max. PV array input power [kWp] |
75 |
| Max. PV input voltage [V] |
1100 |
| Startup voltage [V] |
200 |
| Nominal input voltage [V] |
600 |
| MPP tracker voltage range [V] |
180~1000 |
| No. of MPP trackers |
5 |
| Strings per MPP tracker |
2 |
| Max. PV input current per MPPT [A] |
32 |
| Isc PV Array Short Circuit current per MPPT [A] |
40 |
AC output
| Rated AC output power [kW] |
50 |
| Rated AC output current [A]* |
75.8 / 72.5 |
| Max. AC output apparent power [kVA] |
55 |
| Max. AC output current [A]* |
83.3 / 79.7 |
| Nominal AC voltage [V] |
220/380V, 230/400V, 3/N/PE, 3/PE |
| AC voltage range [V]** |
304~460 |
| Nominal AC frequency / AC frequency range [Hz]** |
50/60; ±5 |
| Power Factor range |
0.8 leading ~ 0.8 lagging |
| THDi (Rated power) [%] |
<3 |
System data
| Max. efficiency [%] |
98.4 |
| Euro. efficiency [%] |
98.1 |
| Standby consumption [W] @Night |
<2 |
| Ingress protection |
IP66 |
| Operating ambient temperature range [°C] |
-30~+60 (Derating above 45) |
| Max. operation altitude [m] |
4000 (Derating above 3000) |
| Relative humidity [%] |
0~100 |
| Dimensions [W×H×D] [mm] |
630521286 |
| Weight [kg] |
44.5 |
| Cooling concept |
Smart fan cooling |
| Communication interfaces |
RS485 / USB / DRM / PLC(Optional) |
| Optional monitoring dongle |
Pocket WiFi / LAN / 4G |
| Display |
LCD (16×2, optional) / LED×4 |
Protection
| Over/under voltage protection |
YES |
| Over current protection |
YES |
| DC isolation protection |
YES |
| Grid monitoring |
YES |
| DC injection monitoring |
YES |
| Residual current detection |
YES |
| Anti-islanding protection |
YES |
| String fault detection |
YES |
| Over temperature protection |
YES |
| SPD (DC/AC) |
Type II / Type II |
| Arc-fault circuit interrupter (AFCI) |
Optional |
| AC auxiliary power supply (APS) |
Optional |
| Power line communication (PLC) |
Optional |
Standard and certification
| Safety |
IEC/EN 62109-1; IEC/EN 62109-2; NB/T 32004 |
| EMC |
EN/IEC 61000; NB/T 32004 |
| Certification |
VDE4105; EN 50549; AS 4777.2; VDE4105; IEC 61727; IEC 62116; IEC 61683; IEC 60068; EN 50530; NB/T 32004 |
| Notes |
* The two data refer to different grid voltage 220V/230V; ** The AC voltage and the frequency range may vary from different country codes |
| Version |
*V2.6. Information may be subject to modify without notice. 650.00002.00 |
Shipping
Shipping is available to the UK, Ireland, Africa, the Caribbean and worldwide. If the shipping rate is not shown at checkout, please contact us on +44 2080640335 or info@energian.co.uk for a tailored shipping quote.
UK expert support
UK expert support is available to help with system design, string configuration and grid connection checks for the SolaX X3 MEGA G2 50kW Three Phase Inverter. For commercial and industrial projects we recommend installation and commissioning through our trusted partners, ensuring compliance with local grid codes and safe, reliable operation.
You can contact us via phone, email or live chat, or visit our office for an in‑person consultation to discuss your project requirements and preferred inverter configuration.
Documents available for download
This product requires a quantity of 3 minimum.
