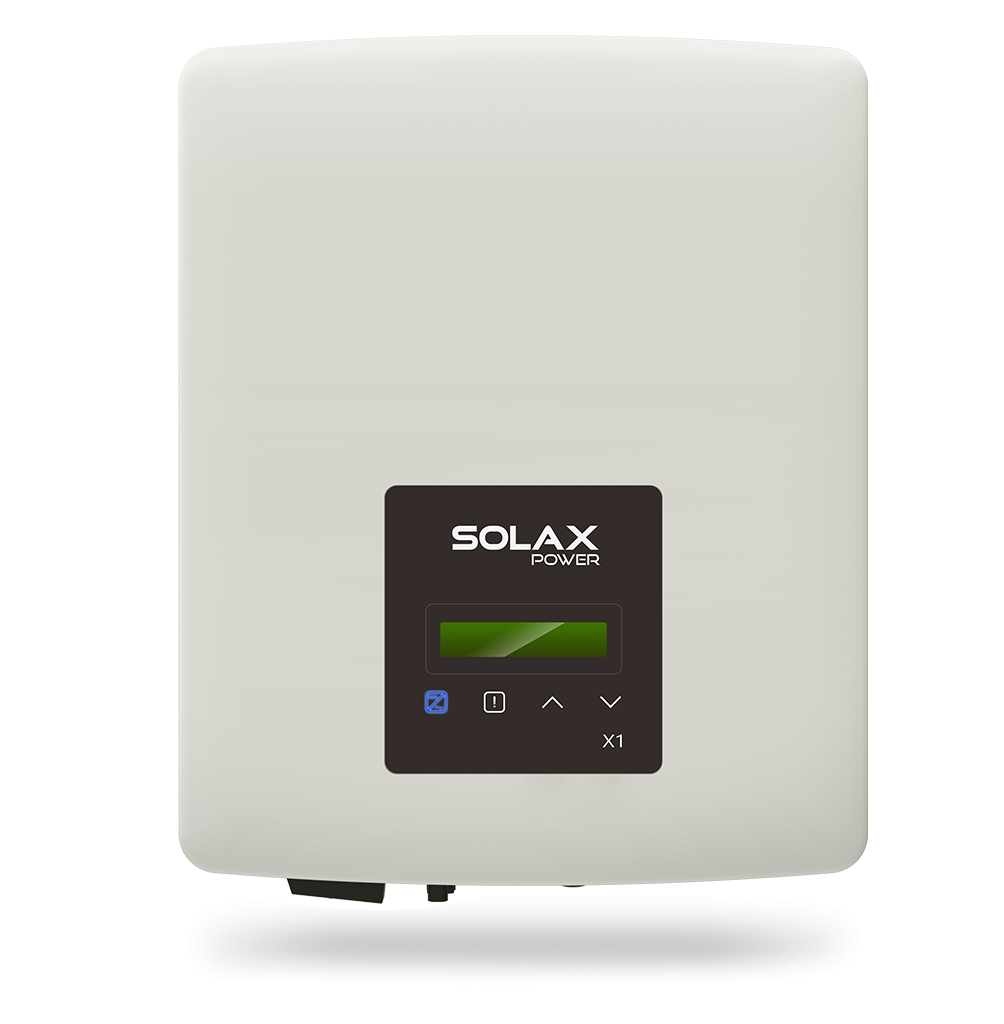

SolaX X1-MINI 3.0kW Single Phase Grid-tie PV Inverter

By SolaX

Delivery available

Powering Your Rooftop Revolution with SolaX X1-MINI 3.0kW Grid-tie Inverter

    Introducing the SolaX X1-MINI G3 range of inverters, thoughtfully crafted and optimized for small PV arrays in your local region. With an impressive start-up voltage of 50V and an exceptional maximum efficiency of 98%, the X1-MINI G3 guarantees unrivaled performance, ensuring you harness the utmost energy potential from your PV system. Experience the pinnacle of efficiency and maximize your energy harvest with the SolaX X1-MINI G3, tailored specifically for your local solar needs.


    • Small and compact size
    • Remote upgrade and maintenance


    • 150% oversizing and 110% overloading
    • Max. DC input 14A per string


    • Low start-up voltage and wide MPPT range
    • SPD on both AC and DC side integrated

        Detailed specifications:

        Model: X1-3.0
        INPUT PV
        Max. Input Power: 4500W
        Max. Input Voltage: 550V
        Start-up Input Voltage: 70V
        Nominal Input Voltage: 360V
        No. of Independent MPP Trackers: 1
        MPP tracker voltage range: 55-530V
        Max. Input Current: 14A
        Max. Short-circuit Current: 18A
        AC OUTPUT (GRID)
        Rated Output Power: 3000W
        Max. Output Apparent Power: 3300VA
        Rated Grid Output Current: 13.04A
        Nominal AC voltage / AC voltage range: 220/230/240; 180--280VAC
        Nominal AC frequency / AC frequency range: 50/60;±5Hz
        Power Factor: Adjustable from 0.8 leading to 0.8 lagging
        THD: <3%
        Max. Efficiency: 98.0%
        Operating Temperature: -25 ~ +60°C
        Protection Degree: IP66
        Size: 267 x 328 x 126mm
        Net Weight: 8.3kg

        In the Box:
        • 1 X SolaX X1-MINI 3kW Single Phase Grid-tie PV Inverter,
        • 1 X SolaX X1-MINI 3kW Single Phase Grid-tie PV Inverter User's Manual.
