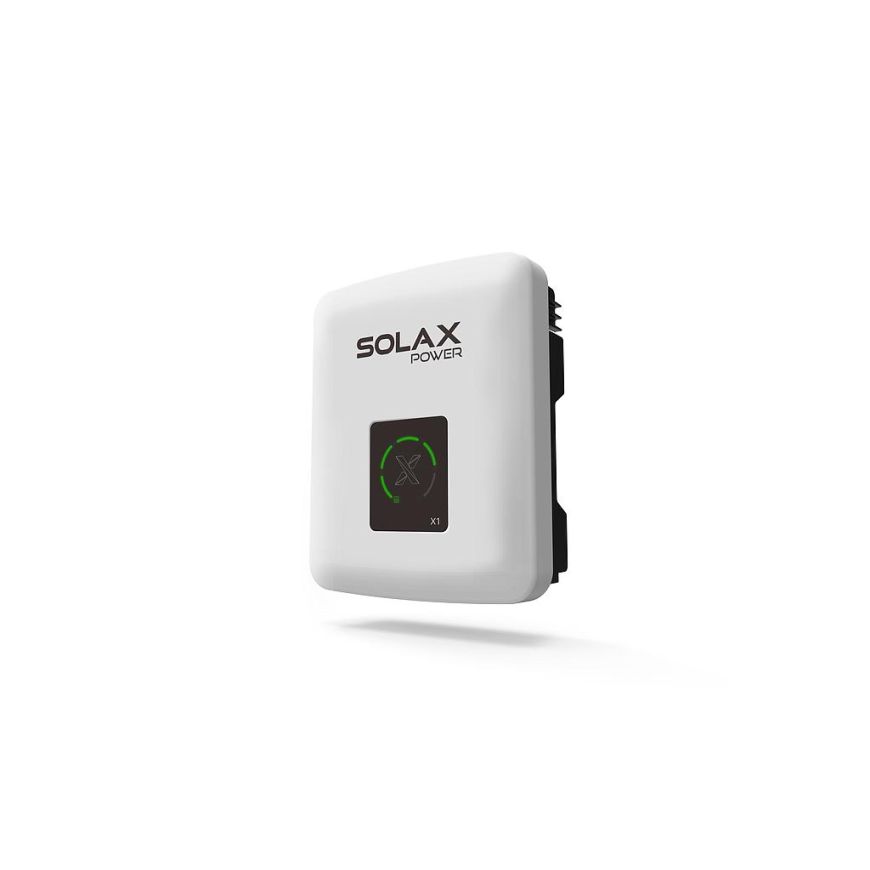

Powering Your Rooftop Revolution with SolaX X1-BOOST 3.6kW Grid-tie Inverter
Experience superior performance with the X1-BOOST G3 inverter, featuring 150% oversizing and a built-in global MPP scan. Stay connected with user-friendly monitoring via Wi-Fi and app. Elevate your local solar journey with the exceptional X1-BOOST G3.
User-Friendly:
- 24H monitoring and maintenance (Optional)
-
Easy to install and set up
Superiop Performance:
- 150% oversizing and 110% overloading
-
Max. DC input 14A per string
Assured Safety Reliabiliaty:
- AC/DC built-in Type III SPD (Optional)
- Over-temperature protection
-
Export control function integrated
Detailed specifications:
| Model: X1-3.6T |
| INPUT PV |
| Max. Input Power: 5400W |
| Max. Input Voltage: 600V |
| Start-up Input Voltage: 100V |
| Nominal Input Voltage: 360V |
| No. of Independent MPP Trackers/No of Strings per MPP Tracker: 2/1 |
| MPP tracker voltage range: 70-580V |
| Max. Input Current: 14A/14A |
| Max. Short-circuit Current: 18A/18A |
| AC OUTPUT (GRID) |
| Rated Output Power: 3680W |
| Max. Output Apparent Power: 4048 (3680 for G98/TOR)VA |
| Rated Grid Output Current: 16A |
| Nominal AC voltage / AC voltage range: 220/230/240; 180--280VAC |
| Nominal AC frequency / AC frequency range: 50/60;±5Hz |
| Power Factor: Adjustable from 0.8 leading to 0.8 lagging |
| THD: <3% |
| EFFICIENCY |
| Max. Efficiency: 97.8% |
| Operating Temperature: -25 ~ +60°C |
| Protection Degree: IP66 |
| Size: 341.5 × 430 × 143mm |
| Net Weight: 13.5kg |
In the Box:
- 1 X SolaX X1-BOOST 3.6kW Single Phase Grid-tie PV Inverter,
- 1 X SolaX X1-BOOST 3.6kW Single Phase Grid-tie PV Inverter User's Manual.
Frequently Asked Questions:
Don't know an answer to your question? Call us on 020 8064 0335 or email info@energian.co.uk.
