Solarport 2 Rows 10 Columns Portrait Ground Solar Mounting Kit


By Solarport
Minus Plus

Delivery available

More details Right

Solarport 2 Rows x 10 Columns Portrait Ground Solar Mounting Kit

  • Pre-engineered 2-in-portrait ground mounting kit for 20 panels, ideal for logistics yards, depots and commercial or light industrial solar projects.
  • Flexible foundation options to suit varied ground conditions while meeting UK wind and snow loading requirements.
  • Based on Solarport’s stocked Modular system, backed by UK-based expert support from Energian for design and installation.

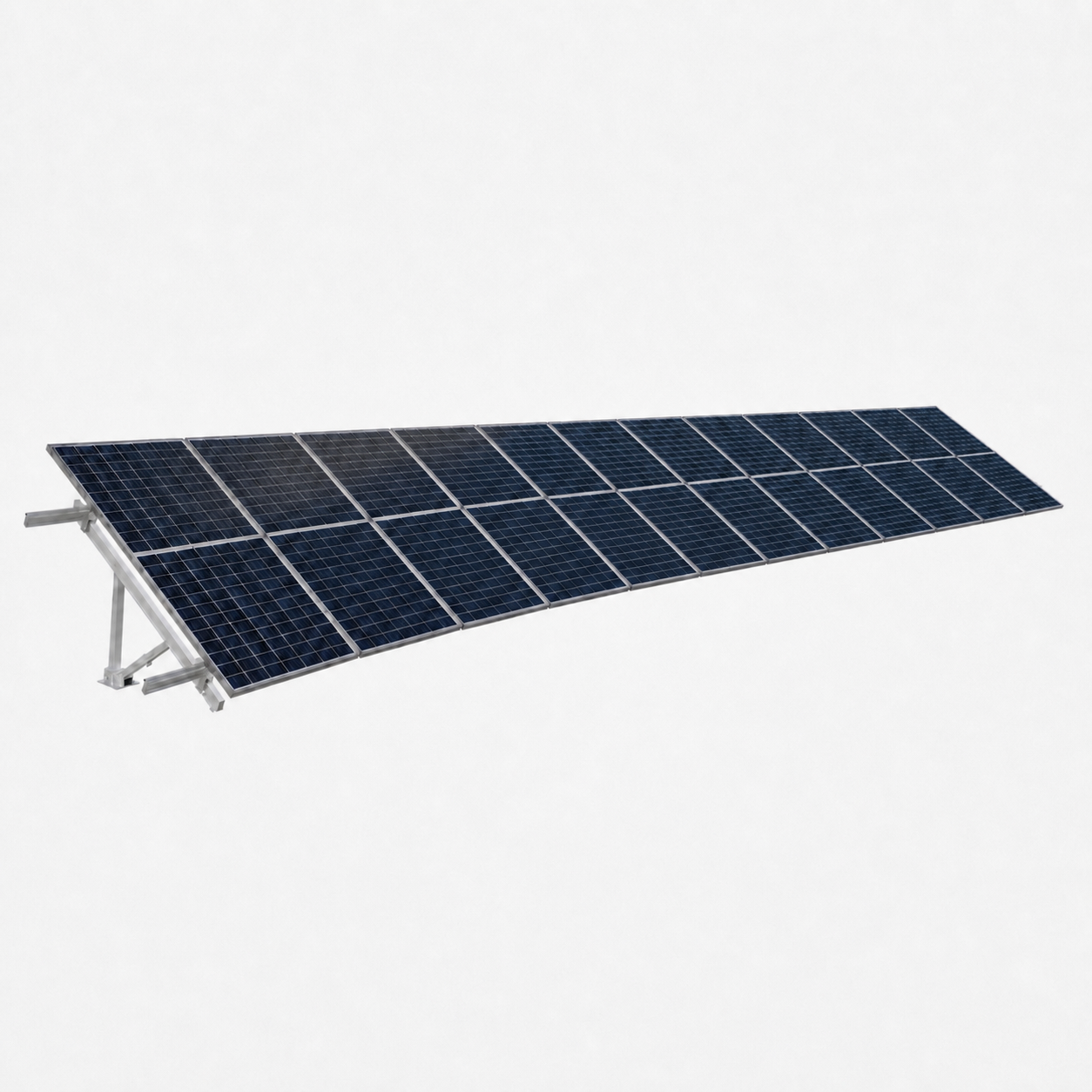

The Solarport Modular 2-in-portrait 2 rows x 10 columns kit is a steel ground mounting framework for twenty solar modules arranged in a 2-in-portrait layout. It uses the Solarport Modular system, engineered for commercial and domestic-scale projects and compatible with a wide range of foundation types for rapid, straightforward deployment.

Key features

  • 2-in-portrait ground mount configuration with 2 rows and 10 columns (20 modules total), suitable for ground slopes up to approximately 5° when designed correctly.
  • Modular tables built in bays of 2 or 3 panels wide, allowing flexible layouts and simple extension for larger arrays or phased roll-outs.
  • Supports panel lengths from 1650 mm to 2470 mm using four purlins and sliding clamps aligned with panel clamping zones.

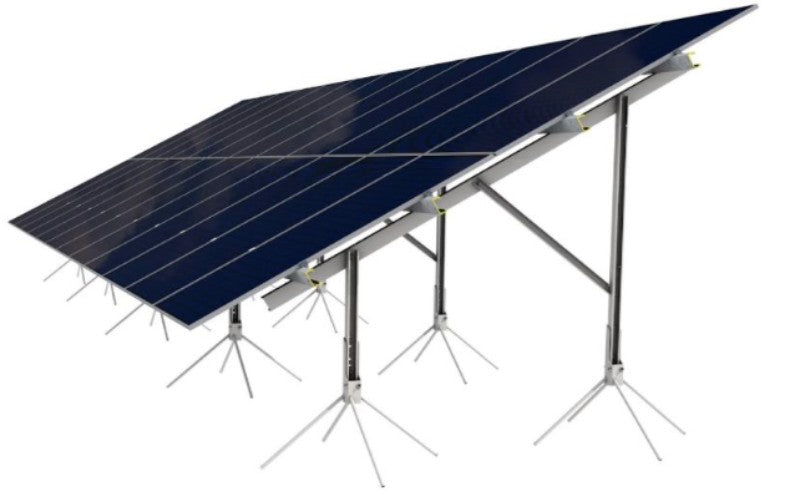

  • Compatible with multiple foundation options including piles, ballasted bases, anchors, Spirafix and ground screws, so almost no terrain is off limits when engineered properly.
  • Designed in line with Eurocodes for wind and snow loading, with fundamental basic UK wind velocity up to 28 m/s and snow loads up to 0.7 kN/m², subject to site-specific design.

Typical applications

This kit suits logistics hubs, transport depots, industrial estates, farms and utility compounds with spare ground for sizeable solar arrays. It is well suited to offsetting daytime site demand, supporting off-grid systems, and feeding battery-backed EV, forklift or plant charging where rooftop mounting is not practical.

System design and installation

The Solarport Modular system is held in stock for rapid distribution and is engineered for straightforward site planning, using universal components and a single fixing size to simplify installation.[file:16] The modular design allows tables to be built in bays of two or three panels wide and used on ground with slopes up to around 5 degrees, subject to design.

Bay pitches of 2000, 2500, 3000 or 3500 mm can be selected, with an additional 100 mm available when an Extension Joiner is used, to suit module width and site layout.[file:16] Because the correct foundation, bay pitch and structural design depend on local ground conditions and wind and snow loads, this kit should be installed by competent contractors following Solarport’s design guidance, with support from Energian and our trusted partners where required.

Technical specifications

General technical data

  • System type: Modular 2-in-portrait ground mount.
  • Application scale: Commercial and domestic-scale; held in stock for rapid deployment.
  • Panel configuration: 2-in-portrait.
  • Panel minimum length: 1650 mm.
  • Panel maximum length: 2470 mm.
  • Purlin configuration: 4 purlins, position determined by panel dimensions and clamping zones.
  • Panel clamping zones: As per panel manufacturer’s specification.
  • Panel clamp specifications: Panels fitted using aluminium top hat and end clamps, with sliding clamps to give mounting positions.
  • System angles: 20°, 25°, 30°. System minimum and maximum heights:
    • 20° – minimum clearance: 785 mm; maximum to top of rafter: 2200 mm
    • 25° – minimum clearance: 735 mm; maximum to top of rafter: 2455 mm.
    • 30° – minimum clearance: 680 mm; maximum to top of rafter: 2694 mm.
  • Bay sizes: 2 panels and 3 panels wide.
  • Table configuration minimum and maximum: 2 panels x 2 panels minimum; 30 panels x 2 panels maximum.
  • Bay pitches: 2000 mm, 2500 mm, 3000 mm, 3500 mm (each pitch can have 100 mm added when an Extension Joiner is used).

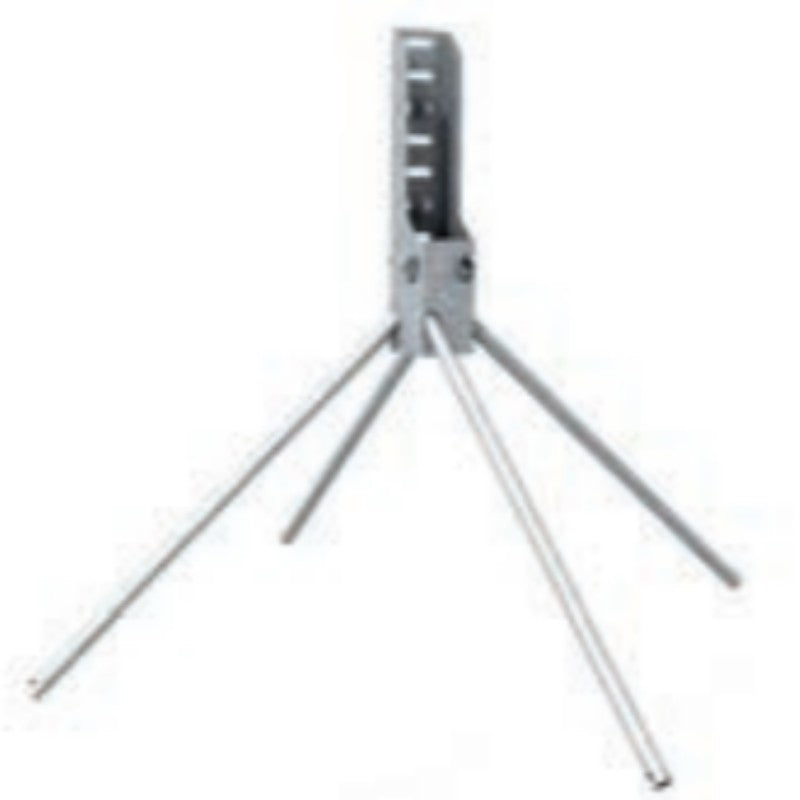

Foundation - X Anchor

  • Patent number: GB2607092.
  • Suitable for: Sites that require shallow embedment and/or no heavy machinery.
  • Installation: Steel rods driven in with hand tools.
  • Material: Hot rolled steel S355JR, hot dipped galvanised to ISO 1461.
  • Dimensions: 600 mm embedment.
  • Design codes: BS EN 1991-1-4:2005 + A1:2010; BS EN 1090 and BS EN 1991 Parts 1, 3 and 7 (Eurocodes).
  • Other foundation types available: C Pile, V Pile, Concreted Pile, Ballasted, Spirafix, Direct Fix, Ground Screw.[file:16]

Structural performance and materials

  • Wind speed: Fundamental basic UK wind velocity within the UK up to 28 m/s (site-specific design still required).
  • Snow loads: Up to 0.7 kN/m
  • Design standards: BS EN 1991-1-4:2005 + A1:2010; BS EN 1090; BS EN 1991 Parts 1, 3 and 7 (Eurocodes).
  • Material specification: S350 and S450 grade steel with Z600 or ZM310 coating; hot rolled steel S355JR, hot dipped galvanised to ISO 1461.

Documents available for download

Shipping and delivery

Shipping is available across the UK, Ireland, Africa, the Caribbean and worldwide. If a shipping rate is not shown at checkout, please contact us on +44 2080 640 335 or info@energian.co.uk for a tailored quotation.

UK expert support

Energian offers UK-based expert support for Solarport ground mounting systems. Get in touch by phone, email or live chat, or visit our office for in-person advice on module selection, layout and foundation options.

Where this 2 rows x 10 columns kit is not a simple plug-and-play solution for your site, we can work with your chosen contractor or introduce trusted installation partners to help deliver a compliant, long-lasting installation.
